JSCJDatasheet (PDF)

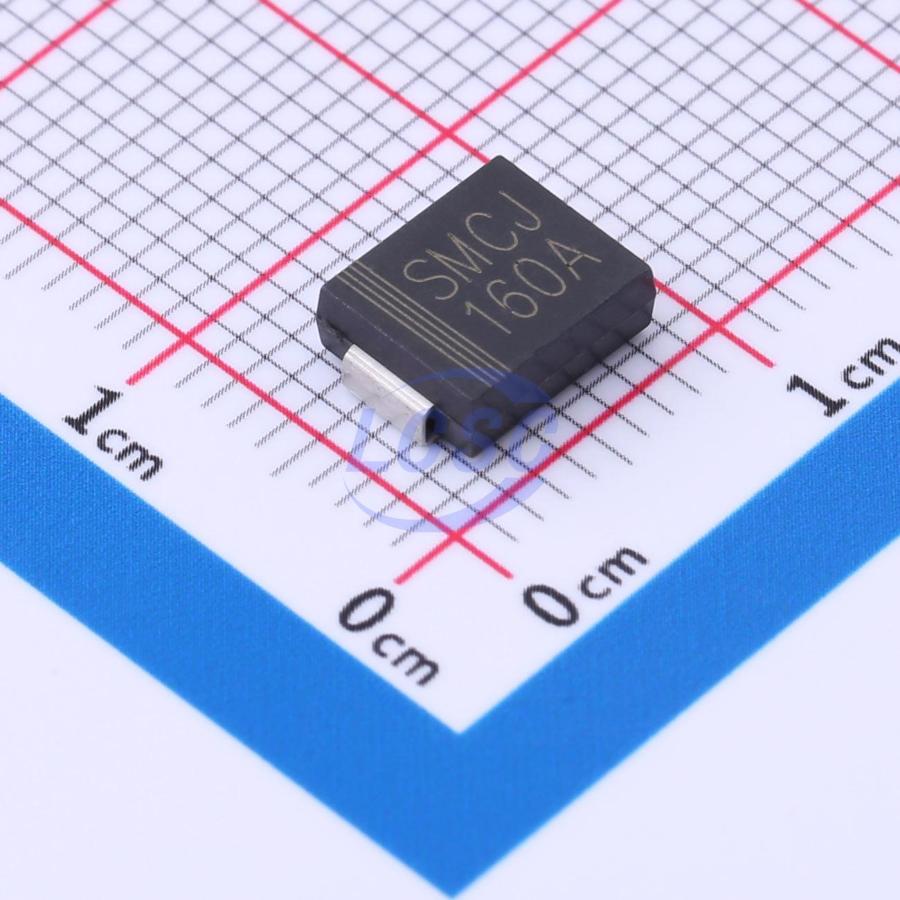

SMCJ160A
259VC Clamp 5.8A@10/1000us Ipp TVS DIODE SMCG
SMCGROHS CompliantActive
TVS DIODE 160VWM 259VC SMCG
- Manufacturer
- JSCJ
- Manufacturer part #
- SMCJ160A
- Store part #
- C5174574
- Package / case
- SMCG
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,260 in stock
#C5174574
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹35.34 | ₹176.70 |
| 50+ | ₹27.89 | ₹1,394.50 |
| 150+ | ₹24.70 | ₹3,705.00 |
| 500+ | ₹20.72 | ₹10,360.00 |
| 3,000+ | ₹18.95 | ₹56,850.00 |
| 6,000+ | ₹17.87 | ₹1,07,220.00 |
5 × ₹35.34
₹176.70
excl. GST
₹208.51 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SMCJ160A
₹176.70 for 5 + GST
Specifications
- Clamping Voltage
- 259V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 5.8A@10/1000us
- Peak Pulse Power Dissipation (Ppp)
- 1.5kW@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 197V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 5uA
- Reverse Stand-Off Voltage (Vrwm)
- 160V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.39 g
Overview
Applications
- Clamping Voltage
Key features
- 1500W VRWM 5.0V - 440V
- Glass passivated chip
