DIODESDatasheet (PDF)

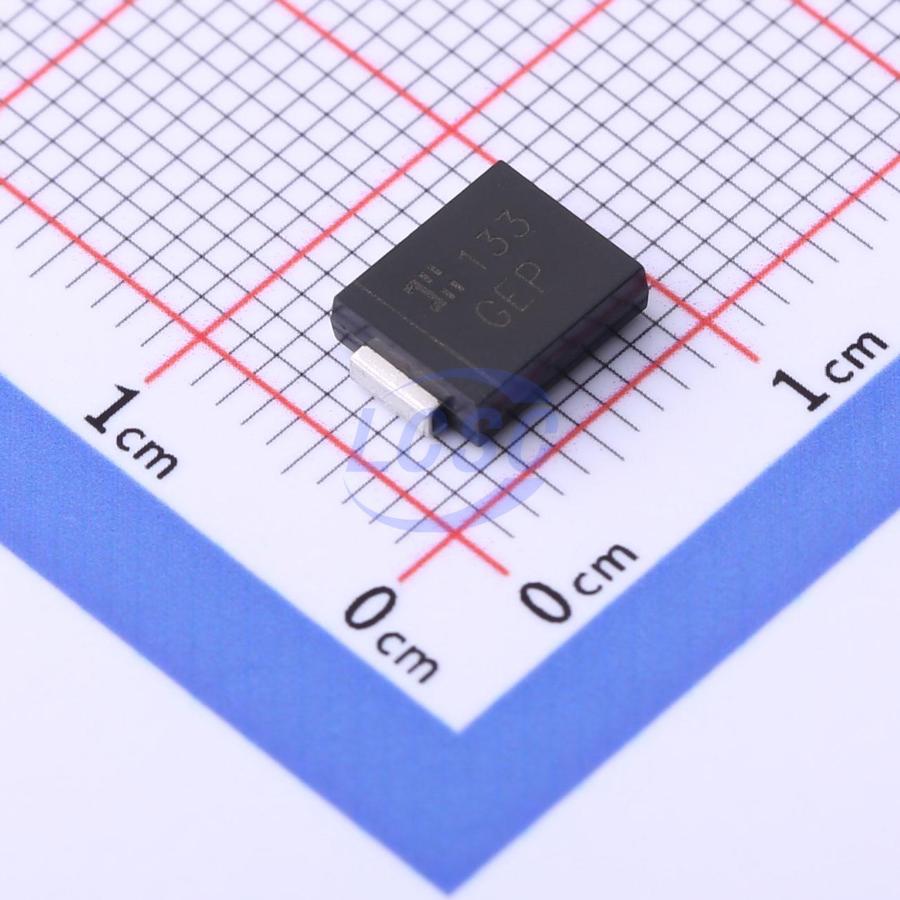

SMCJ16A-13-F
26VC Clamp 57.7A Ipp TVS DIODE SMC
SMCROHS CompliantActive
TVS DIODE 16VWM 26VC SMC
- Manufacturer
- DIODES
- Manufacturer part #
- SMCJ16A-13-F
- Store part #
- C135142
- Package / case
- SMC
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
43 in stock
#C135142
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹141.03 | ₹141.03 |
| 10+ | ₹115.39 | ₹1,153.90 |
| 30+ | ₹101.26 | ₹3,037.80 |
| 100+ | ₹85.40 | ₹8,540.00 |
| 500+ | ₹78.23 | ₹39,115.00 |
| 1,000+ | ₹74.97 | ₹74,970.00 |
1 × ₹141.03
₹141.03
excl. GST
₹166.42 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SMCJ16A-13-F
₹141.03 for 1 + GST
Specifications
- Clamping Voltage
- 26V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 57.7A
- Peak Pulse Power Dissipation (Ppp)
- 1.5kW
- Number of Channels
- 1
- Voltage - Breakdown
- 19.7V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 5uA
- Reverse Stand-Off Voltage (Vrwm)
- 16V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.207 g
Overview
Key features
- 1500W peak pulse power dissipation
- 5.0V to 200V breakdown voltage
- Glass passivated die construction
- Unidirectional and bidirectional versions available
- Excellent clamping capability
- Fast response time
- Lead-free finish; RoHS compliant
- Halogen and antimony free. "Green" device
