DIODESDatasheet (PDF)

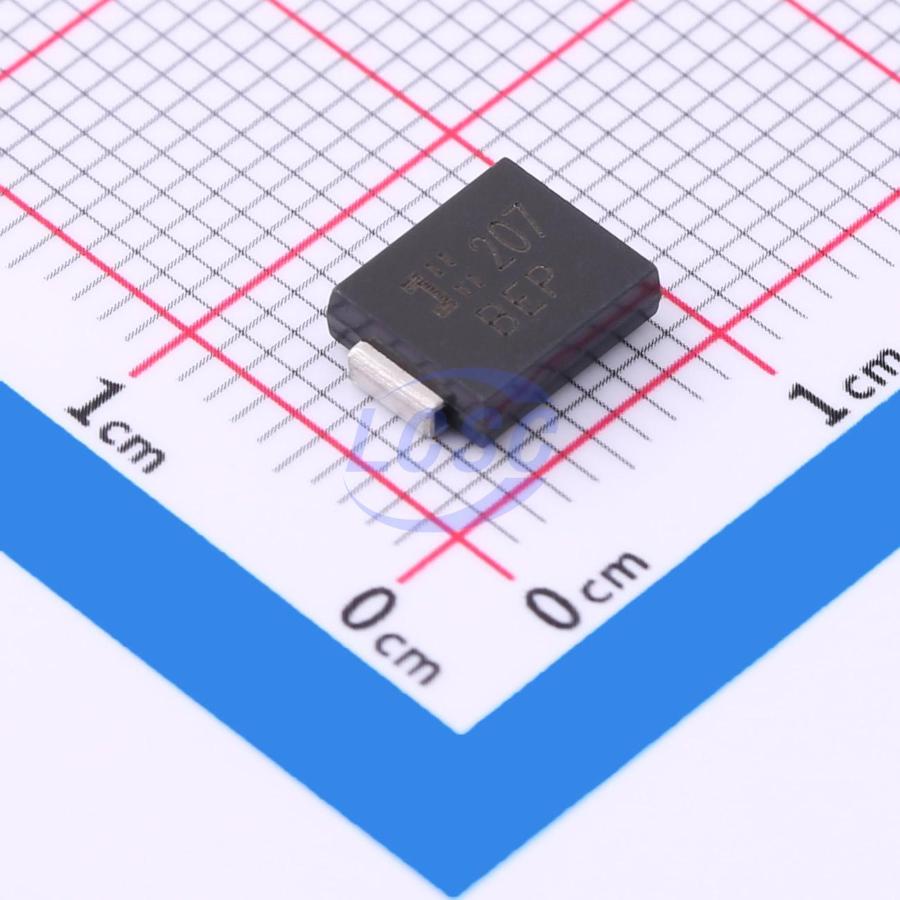

SMCJ16CA-13-F
26VC Clamp 57.7A Ipp TVS DIODE SMC
SMCROHS CompliantActive
TVS DIODE 16VWM 26VC SMC
- Manufacturer
- DIODES
- Manufacturer part #
- SMCJ16CA-13-F
- Store part #
- C135143
- Package / case
- SMC
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C135143
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹49.39 | ₹246.95 |
| 50+ | ₹39.29 | ₹1,964.50 |
| 150+ | ₹34.98 | ₹5,247.00 |
| 500+ | ₹29.58 | ₹14,790.00 |
| 3,000+ | ₹27.19 | ₹81,570.00 |
| 6,000+ | ₹25.75 | ₹1,54,500.00 |
5 × ₹49.39
₹246.95
excl. GST
₹291.40 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SMCJ16CA-13-F
₹246.95 for 5 + GST
Specifications
- Clamping Voltage
- 26V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 57.7A
- Peak Pulse Power Dissipation (Ppp)
- 1.5kW
- Number of Channels
- 1
- Voltage - Breakdown
- 19.7V
- type
- TVS
- Reverse Leakage Current (Ir)
- 5uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 16V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.31 g
Overview
Key features
- 1500W peak pulse power dissipation
- 5.0V to 200V breakdown voltage
- Glass passivated die construction
- Unidirectional and bidirectional versions available
- Excellent clamping capability
- Fast response time
- Lead-free finish; RoHS compliant
- Halogen and antimony free. "Green" device
