DIODESDatasheet (PDF)

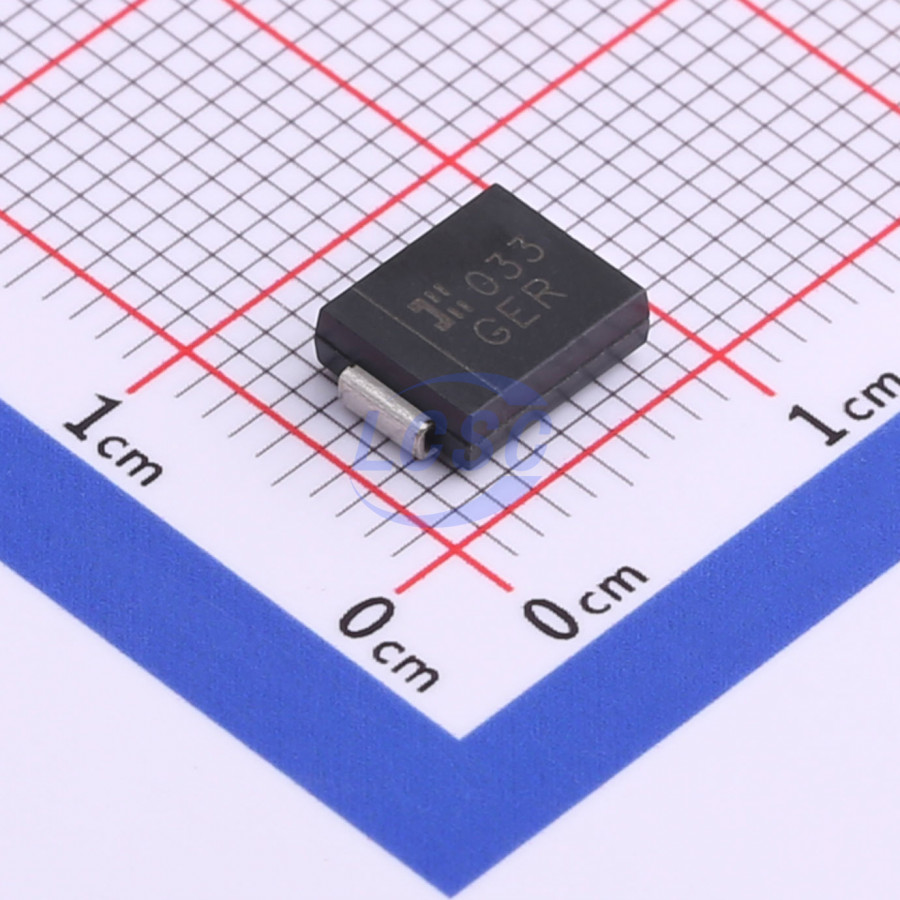

SMCJ17A-13-F
27.6VC Clamp 53.3A Ipp TVS DIODE SMC
SMCROHS3 CompliantActive
TVS DIODE 17VWM 27.6VC SMC
- Manufacturer
- DIODES
- Manufacturer part #
- SMCJ17A-13-F
- Store part #
- C135146
- Package / case
- SMC
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C135146
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹45.76 | ₹228.80 |
| 50+ | ₹36.42 | ₹1,821.00 |
| 150+ | ₹32.41 | ₹4,861.50 |
| 500+ | ₹27.41 | ₹13,705.00 |
| 3,000+ | ₹25.19 | ₹75,570.00 |
| 6,000+ | ₹23.85 | ₹1,43,100.00 |
5 × ₹45.76
₹228.80
excl. GST
₹269.98 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SMCJ17A-13-F
₹228.80 for 5 + GST
Specifications
- Clamping Voltage
- 27.6V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 53.3A
- Peak Pulse Power Dissipation (Ppp)
- 1.5kW
- Number of Channels
- 1
- Voltage - Breakdown
- 20.9V
- type
- TVS
- Reverse Leakage Current (Ir)
- 5uA
- Polarity
- Unidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 17V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.355 g
Overview
Key features
- 1500W peak pulse power dissipation
- 5.0V to 200V breakdown voltage
- Glass passivated die construction
- Unidirectional and bidirectional versions available
- Excellent clamping capability
- Fast response time
- Lead-free finish; RoHS compliant
- Halogen and antimony free. "Green" device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SMCJ17A#C53260905TECH PUBLIC · SMC | TECH PUBLIC | SMC | 5,915 | ₹13.27 · 5,915 in stock | View |
 | SMCJ17A#C5161466ZHIDE · DO-214AB(SMC) | ZHIDE | DO-214AB(SMC) | 230 | ₹20.56 · 230 in stock | View |
 | SMCJ17A#C4154611TWGMC · DO-214AB(SMC) | TWGMC | DO-214AB(SMC) | 5,315 | ₹14.84 · 5,315 in stock | View |
 | SMCJ17AQ#C7462805YANGJIE · DO-214AB(SMC) | YANGJIE | DO-214AB(SMC) | 475 | ₹29.70 · 475 in stock | View |
| 1.5SMC20A/TR13#C2874069Brightking · SMC(DO-214AB) | Brightking | SMC(DO-214AB) | 15 | ₹16.33 · 15 in stock | View | |
