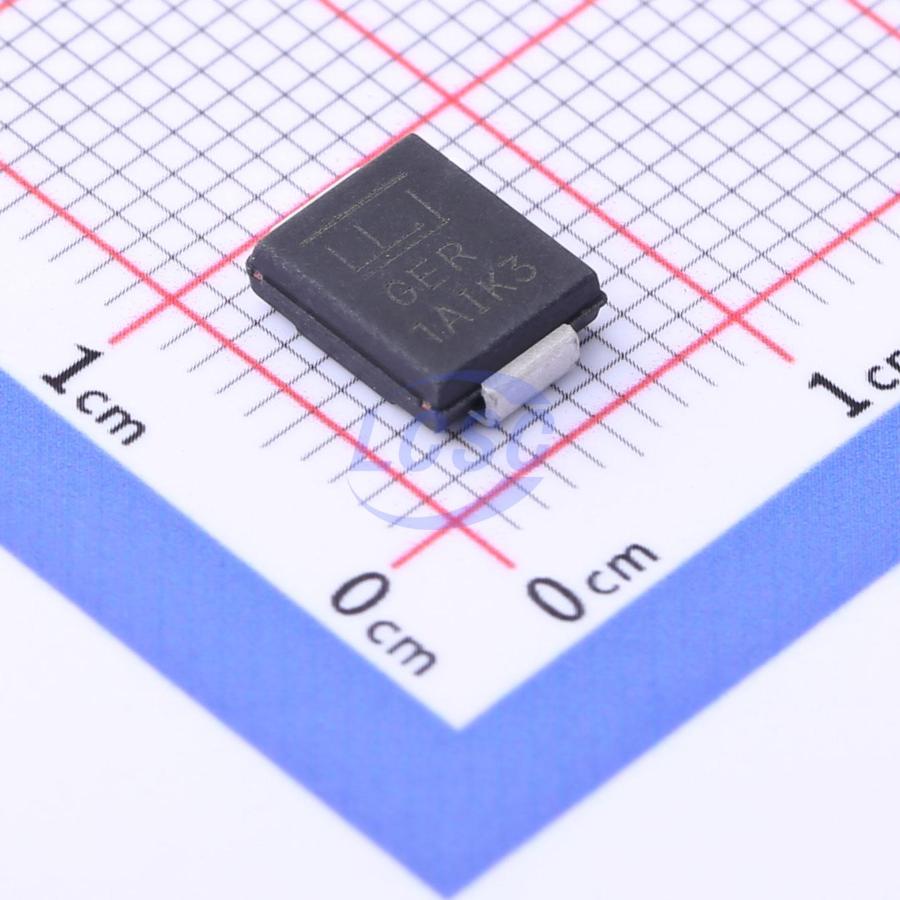

SMCJ17A

The SMCJ series is designed specifcally to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.

Applications

• TVS devices are ideal for the protection of I/O Interfaces, VCC bus and other vulnerable circuits used in Telecom, Computer, Industrial and Consumer electronic applications.

Key features

• 1500W peak pulse power capability at 10/1000μs waveform, repetition rate (duty cycles): 0.01%
• Excellent clamping capability
• Low incremental surge resistance
• Typical IR less than 1μA when VBR min > 12V
• For surface mounted applications to optimize board space
• Low profile package
• Built-in strain relief
• Typical failure mode is short from over-specified voltage or current
• Whisker test is conducted based on JEDEC JESD201A per its table 4a and 4c
• IEC 61000 - 4 - 2 ESD 30kV (Air), 30kV (Contact)
• ESD protection of data lines in accordance with IEC 61000 - 4 - 2
• EFT protection of data lines in accordance with IEC 61000 - 4 - 4
• Fast response time: typically less than 1.0ps from 0V to BV min
• Glass passivated chip junction
• High temperature to reflow soldering guaranteed: 260°C/30sec
• VBR @ TJ = VBR @ 25°C × (1 + αT × (TJ - 25)) (αT: Temperature Coefficient, typical value is 0.1%)
• Plastic package is flammability rated V - 0 per Underwriters Laboratories
• Meet MSL level1, per J - STD - 020, LF maximum peak of 260°C
• Matte tin lead–free plated
• Halogen free and RoHS compliant
• Pb - free E3 means 2nd level interconnect is Pb - free and the terminal finish material is tin(Sn) (IPC/ JEDEC J - STD - 609A.01)
