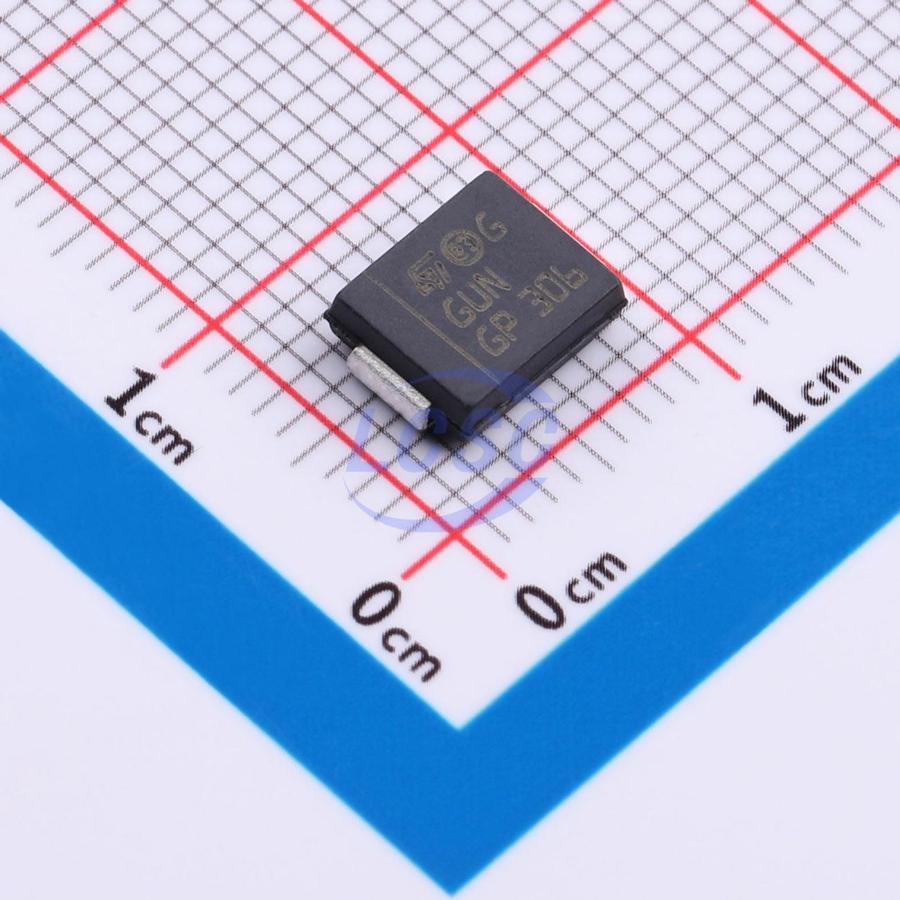

SMCJ188A-TR
388VC Clamp 21.1A@8/20us Ipp TVS DIODE SMC
- Manufacturer
- ST
- Manufacturer part #
- SMCJ188A-TR
- Store part #
- C1666304
- Package / case
- SMC
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
85 in stock
#C1666304
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹127.47 | ₹127.47 |
| 10+ | ₹125.31 | ₹1,253.10 |
| 30+ | ₹124.03 | ₹3,720.90 |
| 100+ | ₹122.73 | ₹12,273.00 |
1 × ₹127.47
₹127.47
excl. GST
₹150.41 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SMCJ188A-TR
₹127.47 for 1 + GST
Specifications
- Clamping Voltage
- 388V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 21.1A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 1.5kW@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 220V
- type
- TVS
- Reverse Leakage Current (Ir)
- 200nA
- Polarity
- Unidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 188V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.341 g
Overview
The TVS series are designed to protect sensitive equipment against electrostatic discharges according to IEC 61000-4-2, MIL STD 883 Method 3015, and electrical overstress such as IEC 61000-4-4 and 5. They are used for surges below 1500 W 10/1000 µs. This planar technology makes it compatible with high-end equipment and SMPS where low leakage current and high junction temperature are required to provide reliability and stability over time.
Key features
- Peak pulse power: 1500 W (10/1000 µs) up to 10 kW (8/20 µs)
- Stand-off voltage range from 5 V to 188 V
- Unidirectional and bidirectional types
- Low leakage current: 0.2 µA at 25 °C
- Operating Tj max: 150 °C
- High power capability at Tj max.: up to 1250 W (10/1000 µs)
- Lead finishing: matte tin plating
- UL94, V0
- J-STD-020 MSL level 1
- J-STD-002, JESD 22-B102 E3 and MIL-STD-750, method 2026
- JESD-201 class 2 whisker test
- IPC7531 footprint and JEDEC registered package outline
- IEC 61000-4-4 level 4: 4 kV
- IEC 61000-4-2, C = 150 pF, R = 330 Ω exceeds level 4: 30 kV (air discharge) 30 kV (contact discharge)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SM15T200A#C1975310ST · SMC | ST | SMC | 425 | ₹81.31 · 425 in stock | View |
 | SMCJ188A#C2758556UMW · SMC | UMW | SMC | 430 | ₹9.79 · 430 in stock | View |
 | SMCJ188A-E3/57T#C3151628VISHAY · SMC(DO-214AB) | VISHAY | SMC(DO-214AB) | 3 | ₹40.22 · 3 in stock | View |
 | 1.5SMC220A#C5342227Littelfuse · DO-214AB | Littelfuse | DO-214AB | 447 | ₹75.62 · 447 in stock | View |
 | 1.5SMC220A#C5336143LRC · DO-214AB(SMC) | LRC | DO-214AB(SMC) | 65 | ₹27.58 · 65 in stock | View |
