DIODESDatasheet (PDF)

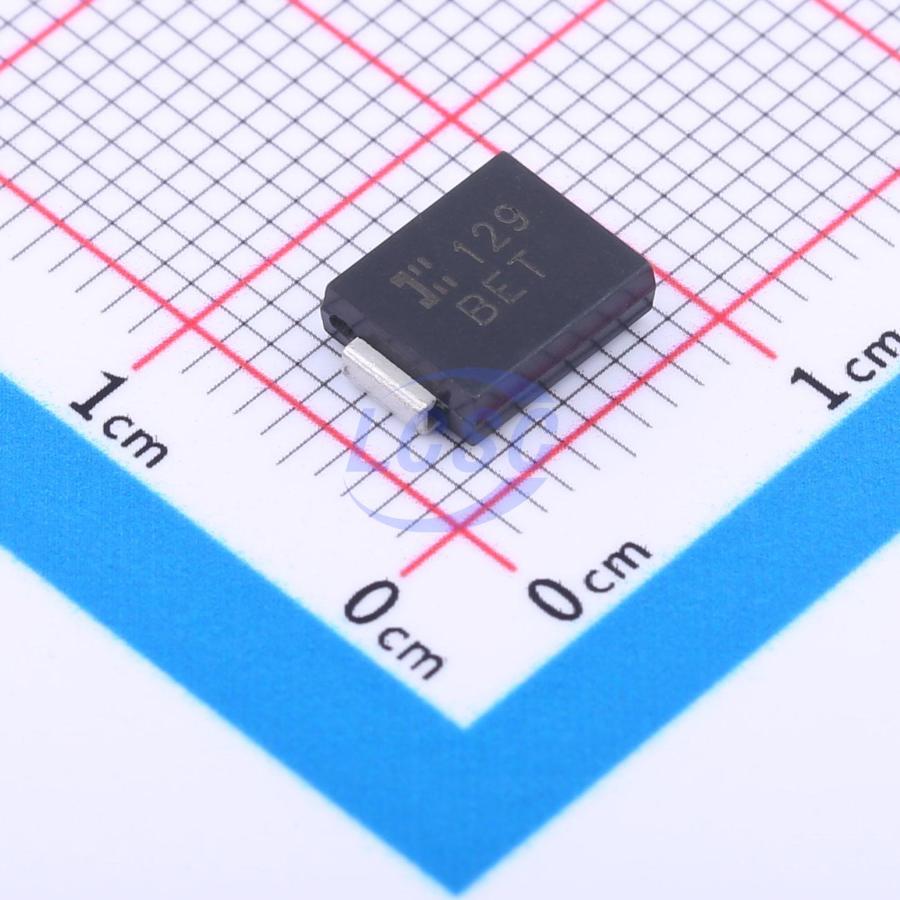

SMCJ18CA-13-F
29.2VC Clamp 51.4A Ipp TVS DIODE SMC
SMCROHS3 CompliantActive
TVS DIODE 18VWM 29.2VC SMC
- Manufacturer
- DIODES
- Manufacturer part #
- SMCJ18CA-13-F
- Store part #
- C135149
- Package / case
- SMC
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
64 in stock
#C135149
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹37.16 | ₹37.16 |
| 10+ | ₹36.51 | ₹365.10 |
| 30+ | ₹35.87 | ₹1,076.10 |
| 100+ | ₹35.43 | ₹3,543.00 |
1 × ₹37.16
₹37.16
excl. GST
₹43.85 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SMCJ18CA-13-F
₹37.16 for 1 + GST
Specifications
- Clamping Voltage
- 29.2V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 51.4A
- Peak Pulse Power Dissipation (Ppp)
- 1.5kW@8/20us
- Number of Channels
- 1
- Voltage - Breakdown
- 22.1V
- type
- TVS
- Reverse Leakage Current (Ir)
- 5uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 18V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.356 g
Overview
Key features
- 1500W peak pulse power dissipation
- 5.0V to 200V breakdown voltage
- Glass passivated die construction
- Unidirectional and bidirectional versions available
- Excellent clamping capability
- Fast response time
- Lead-free finish; RoHS compliant
- Halogen and antimony free. "Green" device
