FTRDatasheet (PDF)

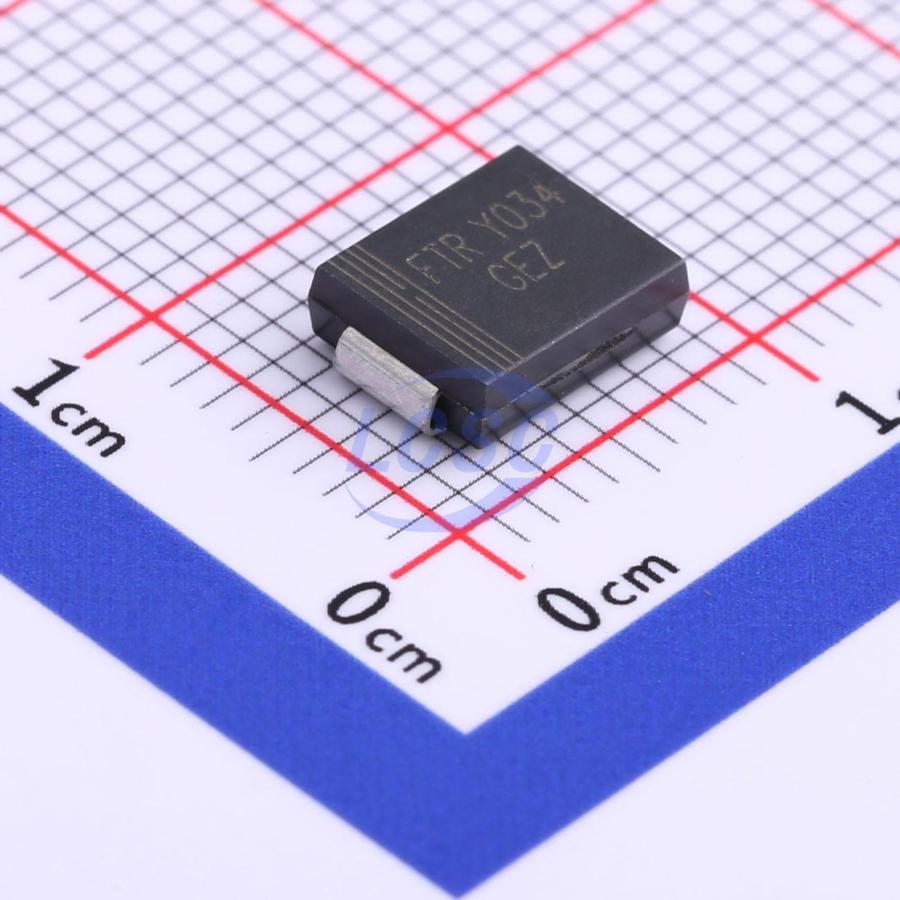

SMCJ24A
38.9VC Clamp 38.6A Ipp TVS DIODE DO-214AB(SMC)
DO-214AB(SMC)RoHSActive
TVS DIODE 24VWM 38.9VC DO-214AB(SMC)
- Manufacturer
- FTR
- Manufacturer part #
- SMCJ24A
- Store part #
- C693617
- Package / case
- DO-214AB(SMC)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
15 in stock
#C693617
Stock & price checked 14 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹19.74 | ₹98.70 |
| 50+ | ₹16.05 | ₹802.50 |
| 150+ | ₹14.20 | ₹2,130.00 |
| 500+ | ₹12.81 | ₹6,405.00 |
| 3,000+ | ₹10.20 | ₹30,600.00 |
| 6,000+ | ₹9.64 | ₹57,840.00 |
5 × ₹19.74
₹98.70
excl. GST
₹116.47 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SMCJ24A
₹98.70 for 5 + GST
Specifications
- Clamping Voltage
- 38.9V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 38.6A
- Peak Pulse Power Dissipation (Ppp)
- 1.5kW@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 26.7V
- type
- TVS
- Reverse Leakage Current (Ir)
- 1uA
- Polarity
- Unidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 24V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.366 g
Overview
Applications
- I/O interface
- AC/DC power supply
- Low frequency signal transmission line (RS232, RS485, etc.)
Key features
- Glass passivated junction
- Low zener impedance
- Excellent clamping capability
- 1500W peak pulse power capability at 10/1000μs waveform, repetition rate (duty cycle): 0.01%
- Fast response time
- Typical IR less than 1μA above 11V.
- Plastic package has underwriters laboratory flammability 94V-0
- Meets MSL level 1, per J-STD-020.
