DIODESDatasheet (PDF)

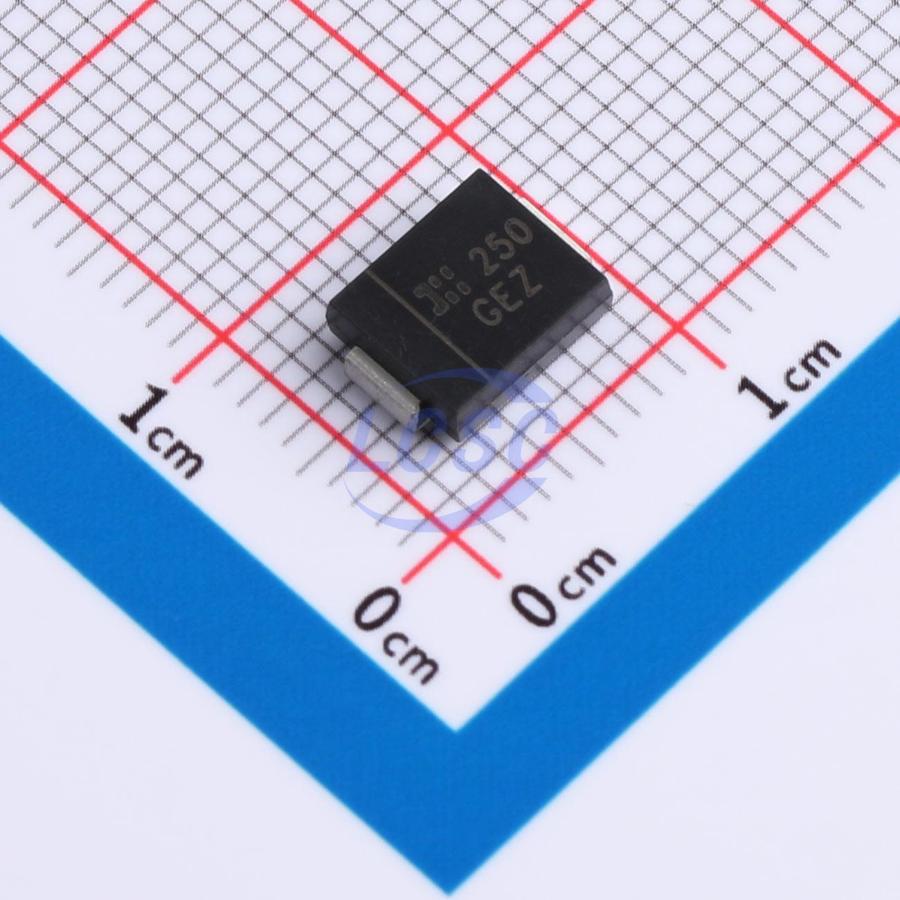

SMCJ24AQ-13-F
38.9VC Clamp 38.6A@10/1000us Ipp TVS DIODE SMC
SMCROHS3 CompliantActive
- Manufacturer
- DIODES
- Manufacturer part #
- SMCJ24AQ-13-F
- Store part #
- C1976646
- Package / case
- SMC
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
94 in stock
#C1976646
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹142.30 | ₹142.30 |
| 10+ | ₹140.36 | ₹1,403.60 |
| 30+ | ₹139.07 | ₹4,172.10 |
| 100+ | ₹137.57 | ₹13,757.00 |
1 × ₹142.30
₹142.30
excl. GST
₹167.91 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SMCJ24AQ-13-F
₹142.30 for 1 + GST
Specifications
- Clamping Voltage
- 38.9V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 38.6A@10/1000us
- Peak Pulse Power Dissipation (Ppp)
- 1.5kW
- Number of Channels
- 1
- Voltage - Breakdown
- 29.5V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 5uA
- Reverse Stand-Off Voltage (Vrwm)
- 24V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.322 g
Overview
Suitable to protect sensitive automotive circuits against surges defined in ISO7637-2 and against electrostatic discharges according to ISO10605.
Key features
- 1,500W Peak Pulse Power Dissipation
- 5V to 110V Standoff Voltages
- Glass Passivated Die Construction
- Unidirectional and Bidirectional Versions Available
- Excellent Clamping Capability
- Fast Response Time
- Lead-Free Finish; RoHS Compliant
- Halogen and Antimony Free. “Green” Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SMCJ24A#C42440493TECH PUBLIC · DO-214AB(SMC) | TECH PUBLIC | DO-214AB(SMC) | 5,015 | ₹12.17 · 5,015 in stock | View |
 | TPSMCJ24A#C42440528TECH PUBLIC · DO-214AB(SMC) | TECH PUBLIC | DO-214AB(SMC) | 2,820 | ₹13.79 · 2,820 in stock | View |
 | SMCJ24A#C53243403baocheng · SMC | baocheng | SMC | 2,910 | ₹15.15 · 2,910 in stock | View |
 | SMCJ24A#C10771RUILON · DO-214AB(SMC) | RUILON | DO-214AB(SMC) | 1,280 | ₹30.87 · 1,280 in stock | View |
 | SMCJ24A#C151903BORN · SMC(DO-214AB) | BORN | SMC(DO-214AB) | 3,710 | ₹25.41 · 3,710 in stock | View |
