VISHAYDatasheet (PDF)

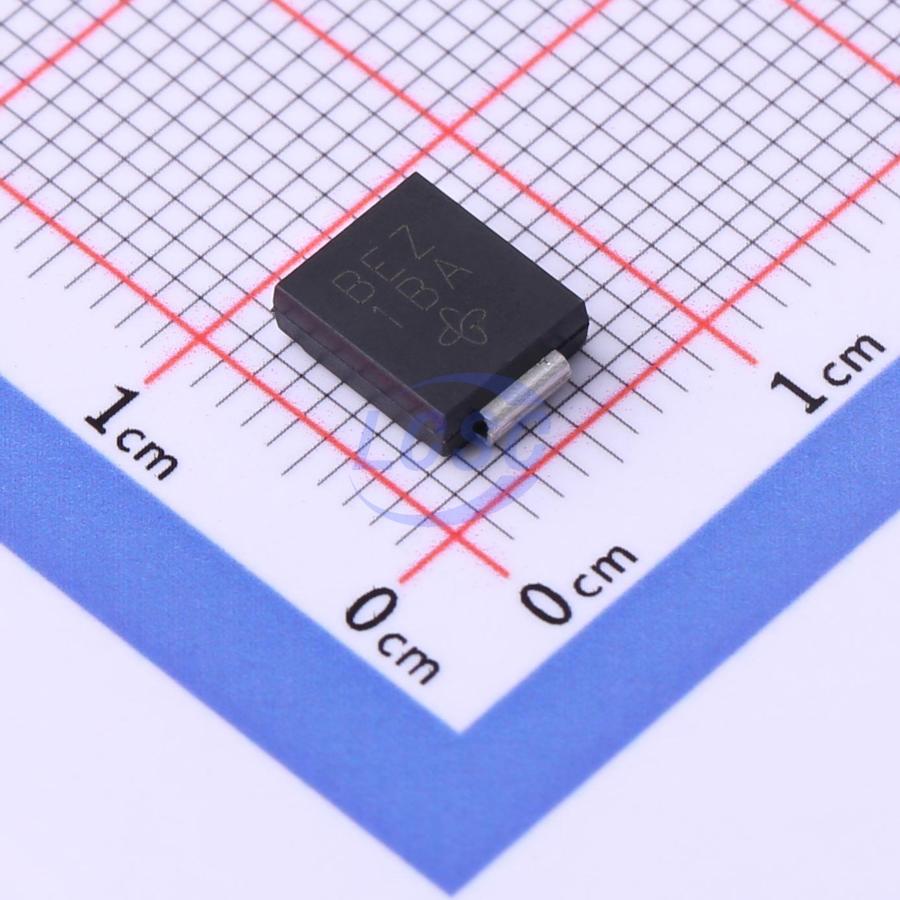

SMCJ24CA-E3/57T
35.5VC Clamp 38.6A@10/1000us Ipp TVS DIODE SMC(DO-214AB)
SMC(DO-214AB)ROHS3 CompliantActive
TVS DIODE 24VWM 35.5VC SMC(DO-214AB)
- Manufacturer
- VISHAY
- Manufacturer part #
- SMCJ24CA-E3/57T
- Store part #
- C1973224
- Package / case
- SMC(DO-214AB)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,696 in stock
#C1973224
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹54.55 | ₹54.55 |
| 10+ | ₹42.38 | ₹423.80 |
| 30+ | ₹36.95 | ₹1,108.50 |
| 100+ | ₹30.43 | ₹3,043.00 |
| 500+ | ₹27.60 | ₹13,800.00 |
| 850+ | ₹25.86 | ₹21,981.00 |
1 × ₹54.55
₹54.55
excl. GST
₹64.37 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 850 per reel
SMCJ24CA-E3/57T
₹54.55 for 1 + GST
Specifications
- Clamping Voltage
- 35.5V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 38.6A@10/1000us
- Peak Pulse Power Dissipation (Ppp)
- 1.5kW@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 29.5V
- type
- TVS
- Reverse Leakage Current (Ir)
- 1uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 24V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 850 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.036 g
Overview
Applications
- Use in sensitive electronics protection against voltage transients induced by inductive load switching and lighting on ICs, MOSFET, signal lines of sensor units for consumer, computer, industrial, automotive, and telecommunication.
Key features
- Low profile package
- Ideal for automated placement RoHS
- Glass passivated chip junction COMPLIANT HALOGEN
- Available in uni-directional and bi-directional FREE Available
- Excellent clamping capability
- Very fast response time
- Low incremental surge resistance
- Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C
- AEC-Q101 qualified available - Automotive ordering code: base P/NHE3 or P/NHM3
