SMCJ26A-E3/9AT

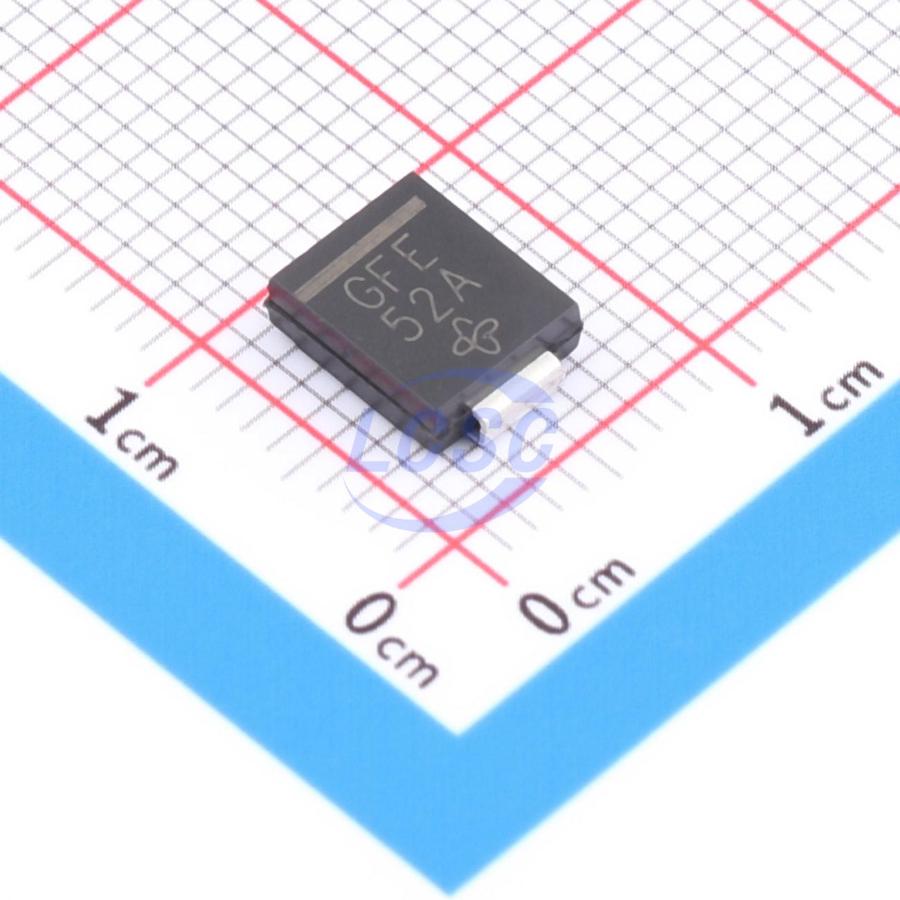

42.1VC Clamp 35.6A Ipp TVS DIODE SMC(DO-214AB)
SMC(DO-214AB)ROHS3 CompliantActive
TVS DIODE 26VWM 42.1VC SMC(DO-214AB)
- Manufacturer
- VISHAY
- Manufacturer part #
- SMCJ26A-E3/9AT
- Store part #
- C3713772
- Package / case
- SMC(DO-214AB)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
790 in stock
#C3713772
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹23.88 | ₹119.40 |
| 50+ | ₹23.34 | ₹1,167.00 |
| 150+ | ₹22.99 | ₹3,448.50 |
| 500+ | ₹22.64 | ₹11,320.00 |
5 × ₹23.88
₹119.40
excl. GST
₹140.89 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,500 per reel
SMCJ26A-E3/9AT
₹119.40 for 5 + GST
Specifications
- Clamping Voltage
- 42.1V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 35.6A@10/1000us
- Peak Pulse Power Dissipation (Ppp)
- 1.5kW@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 31.9V
- type
- TVS
- Reverse Leakage Current (Ir)
- 1uA
- Polarity
- Unidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 26V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.355 g
Overview
Applications
- Use in sensitive electronics protection against voltage transients induced by inductive load switching and lighting on ICs, MOSFET, signal lines of sensor units for consumer, computer, industrial, automotive, and telecommunication.
Key features
- Low profile package
- Ideal for automated placement
- Glass passivated chip junction
- Available in unidirectional and bidirectional
- Excellent clamping capability
- Very fast response time
- Low incremental surge resistance
- Meets MSL level 1, per J-STD-020, LF maximum peak of 260℃
- AEC-Q101 qualified available
- Automotive ordering code: base P/NHE3 or P/NHM3
