DIODESDatasheet (PDF)

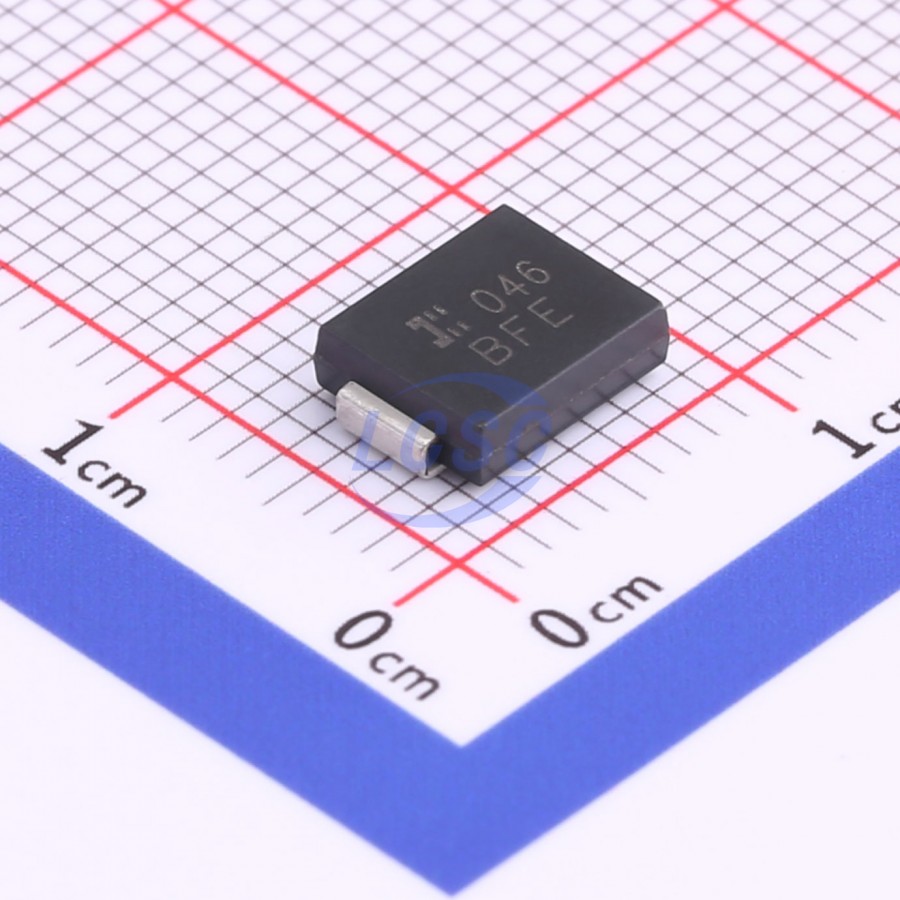

SMCJ26CA-13-F
42.1VC Clamp 35.6A Ipp TVS DIODE SMC
SMCROHS3 CompliantActive
TVS DIODE 26VWM 42.1VC SMC
- Manufacturer
- DIODES
- Manufacturer part #
- SMCJ26CA-13-F
- Store part #
- C135157
- Package / case
- SMC
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
387 in stock
#C135157
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹36.95 | ₹36.95 |
| 10+ | ₹36.08 | ₹360.80 |
| 30+ | ₹35.64 | ₹1,069.20 |
| 100+ | ₹35.21 | ₹3,521.00 |
1 × ₹36.95
₹36.95
excl. GST
₹43.60 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SMCJ26CA-13-F
₹36.95 for 1 + GST
Specifications
- Clamping Voltage
- 42.1V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 35.6A
- Peak Pulse Power Dissipation (Ppp)
- 1.5kW
- Number of Channels
- 1
- Voltage - Breakdown
- 31.9V
- type
- TVS
- Reverse Leakage Current (Ir)
- 5uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 26V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.355 g
Overview
Key features
- 1500W peak pulse power dissipation
- 5.0V to 200V breakdown voltage
- Glass passivated die construction
- Unidirectional and bidirectional versions available
- Excellent clamping capability
- Fast response time
- Lead-free finish; RoHS compliant
- Halogen and antimony free. "Green" device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SMCJ26CA#C10244RUILON · DO-214AB(SMC) | RUILON | DO-214AB(SMC) | 3,090 | ₹41.53 · 3,090 in stock | View |
 | SMCJ26CA#C151280Littelfuse · DO-214AB | Littelfuse | DO-214AB | 2,815 | ₹60.22 · 2,815 in stock | View |
 | SMCJ26CA#C2994044MDD(Microdiode Semiconductor) · DO-214AB(SMC) | MDD(Microdiode Semiconductor) | DO-214AB(SMC) | 1,175 | ₹20.41 · 1,175 in stock | View |
 | SMCJ26CA#C2984999GOODWORK · DO-214AB(SMC) | GOODWORK | DO-214AB(SMC) | 5,020 | ₹12.78 · 5,020 in stock | View |
 | SMCJ26CA#C3720968SMC · SMC(DO-214AB) | SMC | SMC(DO-214AB) | 195 | ₹30.63 · 195 in stock | View |
