DIODESDatasheet (PDF)

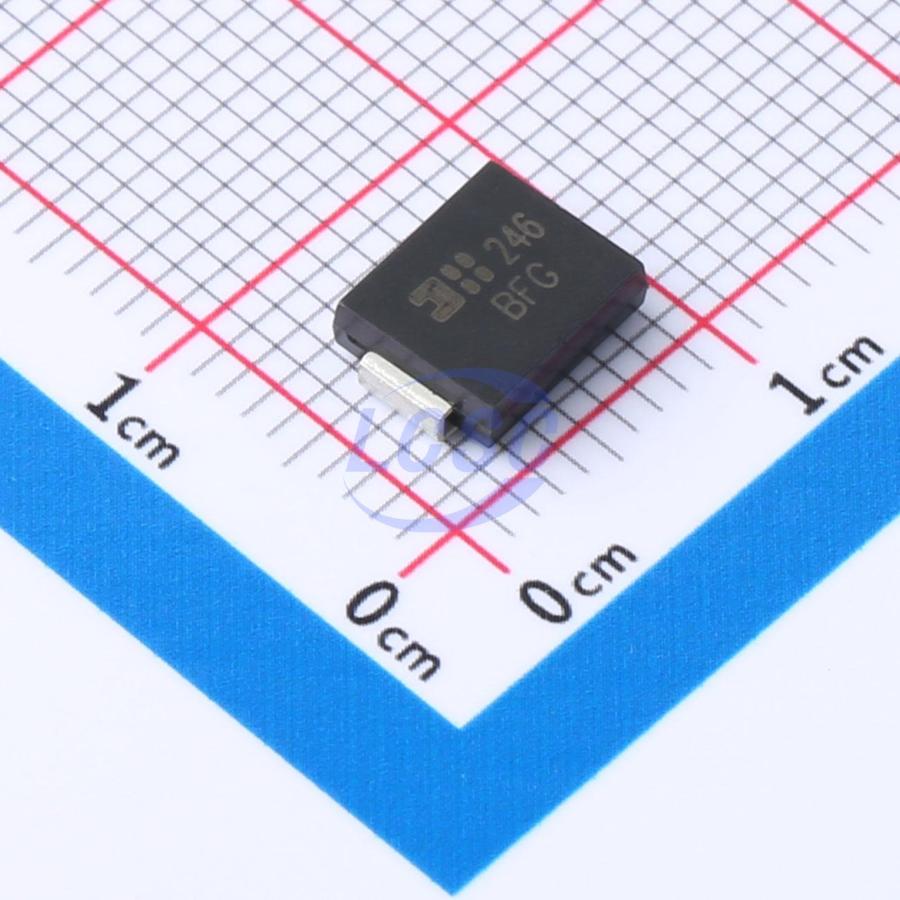

SMCJ28CAQ-13-F
45.4VC Clamp 33A@10/1000us Ipp TVS DIODE SMC
SMCROHS3 CompliantActive
TVS DIODE 28VWM 45.4VC SMC
- Manufacturer
- DIODES
- Manufacturer part #
- SMCJ28CAQ-13-F
- Store part #
- C1974186
- Package / case
- SMC
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
152 in stock
#C1974186
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹128.78 | ₹128.78 |
| 10+ | ₹103.37 | ₹1,033.70 |
| 30+ | ₹90.77 | ₹2,723.10 |
| 100+ | ₹78.18 | ₹7,818.00 |
| 500+ | ₹70.79 | ₹35,395.00 |
| 1,000+ | ₹66.89 | ₹66,890.00 |
1 × ₹128.78
₹128.78
excl. GST
₹151.96 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SMCJ28CAQ-13-F
₹128.78 for 1 + GST
Specifications
- Clamping Voltage
- 45.4V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 33A@10/1000us
- Peak Pulse Power Dissipation (Ppp)
- 1.5kW@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 34.4V
- type
- TVS
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 5uA
- Reverse Stand-Off Voltage (Vrwm)
- 28V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.353 g
Overview
Suitable to protect sensitive automotive circuits against surges defined in ISO7637-2 and against electrostatic discharges according to ISO10605.
Key features
- 1,500W Peak Pulse Power Dissipation
- 5V to 110V Standoff Voltages
- Glass Passivated Die Construction
- Unidirectional and Bidirectional Versions Available
- Excellent Clamping Capability
- Fast Response Time
- Lead-Free Finish; RoHS Compliant
- Halogen and Antimony Free. “Green” Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SMCJ28CA-13-F#C135159DIODES · SMC | DIODES | SMC | 77 | ₹95.61 · 77 in stock | View |
 | SMCJ28CA#C41425637TECH PUBLIC · DO-214AB(SMC) | TECH PUBLIC | DO-214AB(SMC) | 3,765 | ₹18.75 · 3,765 in stock | View |
 | SMCJ28CA#C53243406baocheng · SMC | baocheng | SMC | 8,155 | ₹10.16 · 8,155 in stock | View |
| SMCJ28CA-TP#C1977174MCC · DO-214AB(SMC) | MCC | DO-214AB(SMC) | 2,480 | ₹26.17 · 2,480 in stock | View | |
 | 1.5SMC33CA#C20599245YANGJIE · DO-214AB(SMC) | YANGJIE | DO-214AB(SMC) | 1,605 | ₹18.46 · 1,605 in stock | View |
