DIODESDatasheet (PDF)

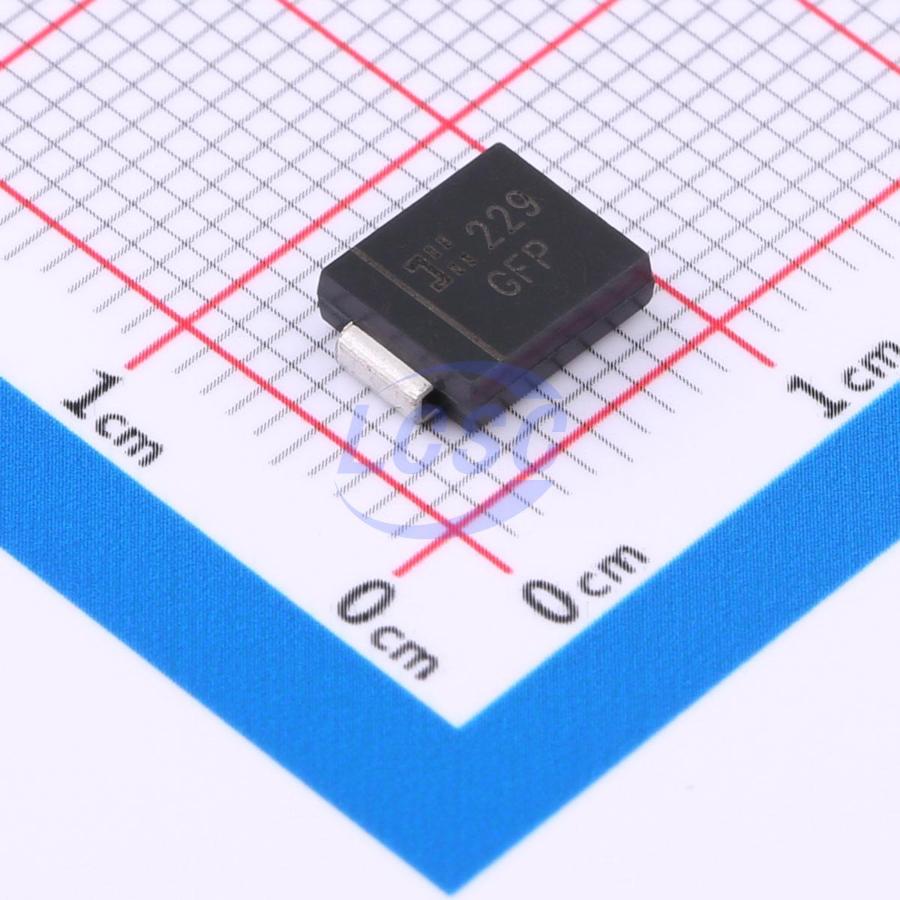

SMCJ36AQ-13-F
58.1VC Clamp 25.8A@10/1000us Ipp TVS DIODE SMC
SMCROHS3 CompliantActive
- Manufacturer
- DIODES
- Manufacturer part #
- SMCJ36AQ-13-F
- Store part #
- C1976629
- Package / case
- SMC
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
43 in stock
#C1976629
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹160.35 | ₹160.35 |
| 10+ | ₹137.78 | ₹1,377.80 |
| 30+ | ₹126.39 | ₹3,791.70 |
| 100+ | ₹115.21 | ₹11,521.00 |
| 500+ | ₹108.34 | ₹54,170.00 |
| 1,000+ | ₹104.90 | ₹1,04,900.00 |
1 × ₹160.35
₹160.35
excl. GST
₹189.21 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SMCJ36AQ-13-F
₹160.35 for 1 + GST
Specifications
- Clamping Voltage
- 58.1V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 25.8A@10/1000us
- Peak Pulse Power Dissipation (Ppp)
- 1.5kW@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 44.2V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 5uA
- Reverse Stand-Off Voltage (Vrwm)
- 36V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.368 g
Overview
Suitable to protect sensitive automotive circuits against surges defined in ISO7637-2 and against electrostatic discharges according to ISO10605.
Key features
- 1,500W Peak Pulse Power Dissipation
- 5V to 110V Standoff Voltages
- Glass Passivated Die Construction
- Unidirectional and Bidirectional Versions Available
- Excellent Clamping Capability
- Fast Response Time
- Lead-Free Finish; RoHS Compliant
- Halogen and Antimony Free. “Green” Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SMCJ36A#C42440494TECH PUBLIC · DO-214AB(SMC) | TECH PUBLIC | DO-214AB(SMC) | 10,555 | ₹16.70 · 10,555 in stock | View |
 | TPSMCJ36A#C42440529TECH PUBLIC · DO-214AB(SMC) | TECH PUBLIC | DO-214AB(SMC) | 5,950 | ₹20.94 · 5,950 in stock | View |
 | SMCJ36AHE3_A/H#C1666892VISHAY · DO-214AB(SMCJ) | VISHAY | DO-214AB(SMCJ) | 99 | ₹135.85 · 99 in stock | View |
 | SMCJ36A#C5161475ZHIDE · DO-214AB(SMC) | ZHIDE | DO-214AB(SMC) | 120 | ₹20.81 · 120 in stock | View |
 | SMCJ36A#C152082BORN · SMC(DO-214AB) | BORN | SMC(DO-214AB) | 10 | ₹25.39 · 10 in stock | View |
