VISHAYDatasheet (PDF)

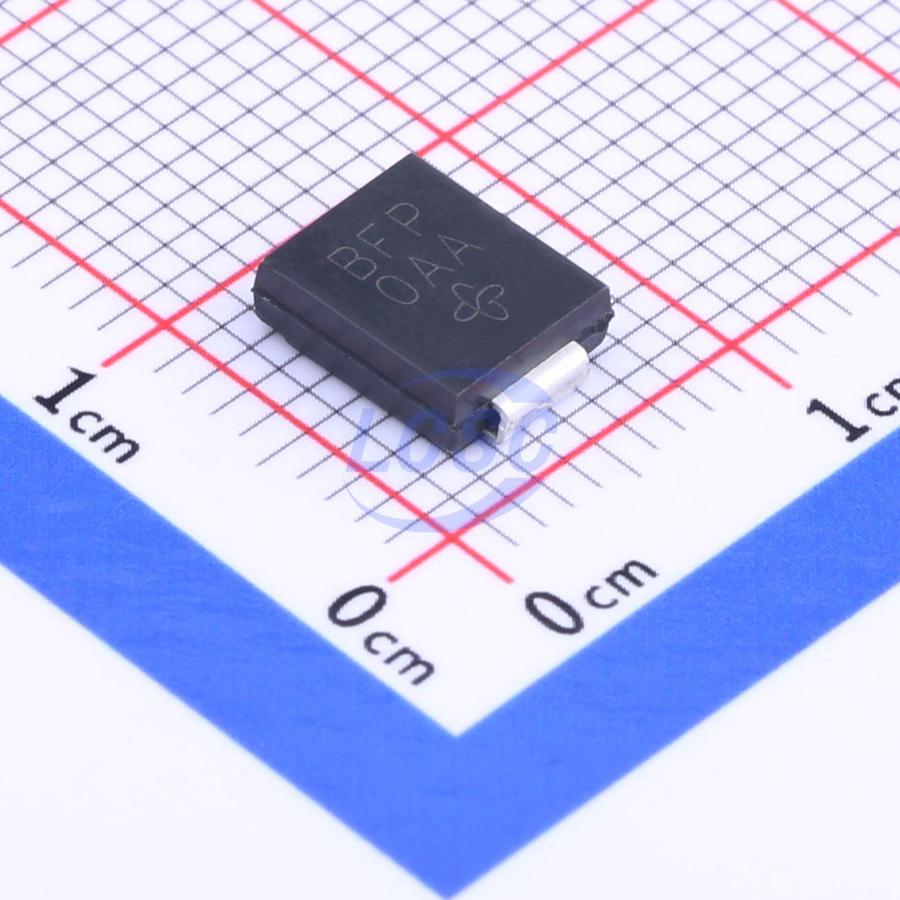

SMCJ36CA-E3/57T
58.1VC Clamp 25.8A Ipp TVS DIODE SMC(DO-214AB)
SMC(DO-214AB)ROHS3 CompliantActive
TVS DIODE 36VWM 58.1VC SMC(DO-214AB)
- Manufacturer
- VISHAY
- Manufacturer part #
- SMCJ36CA-E3/57T
- Store part #
- C968567
- Package / case
- SMC(DO-214AB)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,555 in stock
#C968567
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹35.88 | ₹179.40 |
| 50+ | ₹28.23 | ₹1,411.50 |
| 150+ | ₹24.97 | ₹3,745.50 |
| 850+ | ₹20.86 | ₹17,731.00 |
| 2,550+ | ₹19.05 | ₹48,577.50 |
| 5,100+ | ₹17.95 | ₹91,545.00 |
5 × ₹35.88
₹179.40
excl. GST
₹211.69 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 850 per reel
SMCJ36CA-E3/57T
₹179.40 for 5 + GST
Specifications
- Clamping Voltage
- 58.1V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 25.8A
- Peak Pulse Power Dissipation (Ppp)
- 1.5kW
- Number of Channels
- 1
- Voltage - Breakdown
- 40V
- type
- TVS
- Reverse Leakage Current (Ir)
- 1uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 36V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 850 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.361 g
Overview
Applications
- Use in sensitive electronics protection against voltage transients induced by inductive load switching and lighting on ICs, MOSFET, signal lines of sensor units for consumer, computer, industrial, automotive, and telecommunication.
Key features
- Low profile package
- Ideal for automated placement
- Glass passivated chip junction
- Available in uni - directional and bi - directional
- Excellent clamping capability
- Very fast response time
- Low incremental surge resistance
- Meets MSL level 1, per J - STD - 020, LF maximum peak of 260℃
- AEC - Q101 qualified available - Automotive ordering code: base P/NHE3 or P/NHM3
- Material categorization: for definitions of compliance please see www.vishay.com/doc?99912
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SMCJ36CA#C2831485BOURNS · SMC(DO-214AB) | BOURNS | SMC(DO-214AB) | 1,697 | ₹44.23 · 1,697 in stock | View |
 | SMCJ36CA#C151283Littelfuse · DO-214AB | Littelfuse | DO-214AB | 18,065 | ₹59.05 · 18,065 in stock | View |
 | SMCJ36CA-13-F#C135165DIODES · SMC | DIODES | SMC | On request | ₹91.35 · 0 in stock | View |
 | SMCJ36CA#C18212963SMC · SMC(DO-214AB) | SMC | SMC(DO-214AB) | 1,225 | ₹33.95 · 1,225 in stock | View |
 | SMCJ36CA#C2943876GOODWORK · DO-214AB(SMC) | GOODWORK | DO-214AB(SMC) | 6,030 | ₹14.75 · 6,030 in stock | View |
