DIODESDatasheet (PDF)

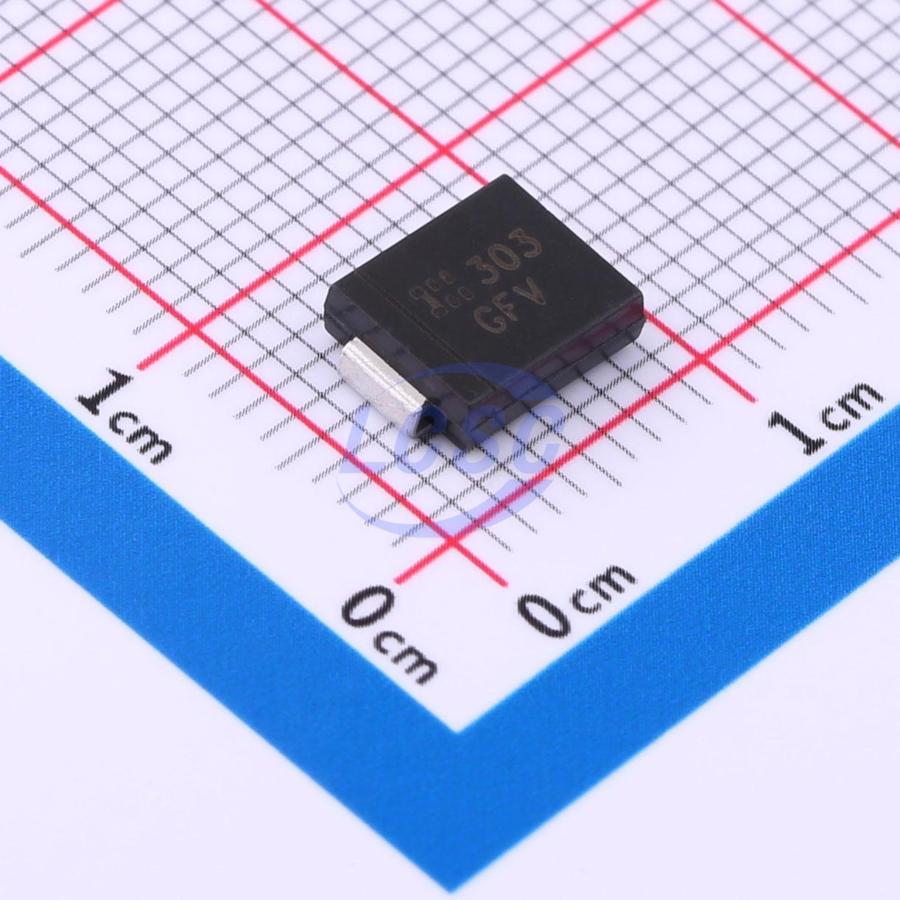

SMCJ45A-13-F
72.7VC Clamp 20.6A Ipp TVS DIODE SMC
SMCROHS3 CompliantActive
TVS DIODE 45VWM 72.7VC SMC
- Manufacturer
- DIODES
- Manufacturer part #
- SMCJ45A-13-F
- Store part #
- C135170
- Package / case
- SMC
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
85 in stock
#C135170
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹169.16 | ₹169.16 |
| 10+ | ₹166.58 | ₹1,665.80 |
| 30+ | ₹164.86 | ₹4,945.80 |
| 100+ | ₹163.36 | ₹16,336.00 |
1 × ₹169.16
₹169.16
excl. GST
₹199.61 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SMCJ45A-13-F
₹169.16 for 1 + GST
Specifications
- Clamping Voltage
- 72.7V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 20.6A
- Peak Pulse Power Dissipation (Ppp)
- 1.5kW
- Number of Channels
- 1
- Voltage - Breakdown
- 55.3V
- type
- TVS
- Reverse Leakage Current (Ir)
- 5uA
- Polarity
- Unidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 45V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.358 g
Overview
Key features
- 1500W peak pulse power dissipation
- 5.0V to 200V breakdown voltage
- Glass passivated die construction
- Unidirectional and bidirectional versions available
- Excellent clamping capability
- Fast response time
- Lead-free finish; RoHS compliant
- Halogen and antimony free. "Green" device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SMCJ45A#C41348118TECH PUBLIC · DO-214AB(SMC) | TECH PUBLIC | DO-214AB(SMC) | 2,395 | ₹13.73 · 2,395 in stock | View |
 | SMCJ45A#C4154623TWGMC · DO-214AB(SMC) | TWGMC | DO-214AB(SMC) | 25 | ₹13.30 · 25 in stock | View |
 | SMCJ45A GFV-TD#C49302570TDSEMIC · SMC | TDSEMIC | SMC | 2,920 | ₹15.94 · 2,920 in stock | View |
 | SMCJ45A#C2994055MDD(Microdiode Semiconductor) · SMC | MDD(Microdiode Semiconductor) | SMC | 4,280 | ₹16.13 · 4,280 in stock | View |
 | SMCJ45A-E3/57T#C1973367VISHAY · SMC(DO-214AB) | VISHAY | SMC(DO-214AB) | 470 | ₹42.27 · 470 in stock | View |
