DIODESDatasheet (PDF)

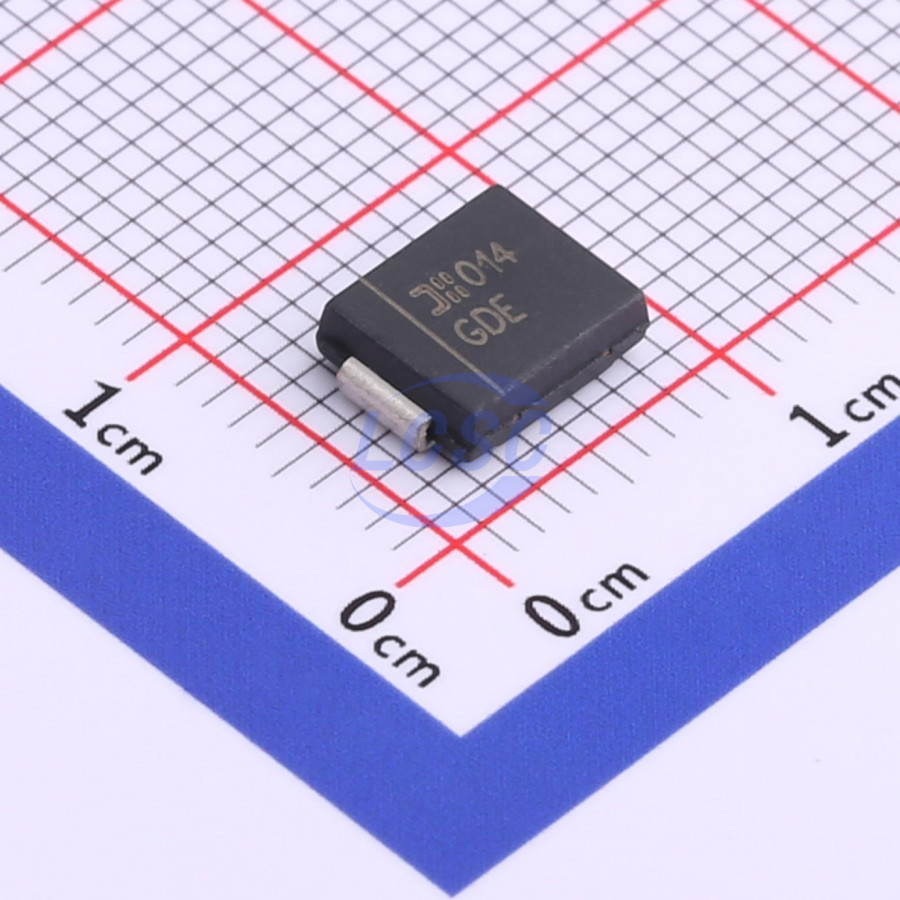

SMCJ5.0A-13-F
9.2VC Clamp 163A Ipp TVS DIODE SMC(DO-214AB)
SMC(DO-214AB)ROHS3 CompliantActive
- Manufacturer
- DIODES
- Manufacturer part #
- SMCJ5.0A-13-F
- Store part #
- C135174
- Package / case
- SMC(DO-214AB)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
365 in stock
#C135174
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹56.08 | ₹280.40 |
| 50+ | ₹48.14 | ₹2,407.00 |
| 150+ | ₹44.74 | ₹6,711.00 |
| 500+ | ₹40.50 | ₹20,250.00 |
| 3,000+ | ₹38.61 | ₹1,15,830.00 |
| 6,000+ | ₹37.47 | ₹2,24,820.00 |
5 × ₹56.08
₹280.40
excl. GST
₹330.87 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SMCJ5.0A-13-F
₹280.40 for 5 + GST
Specifications
- Clamping Voltage
- 9.2V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 163A
- Peak Pulse Power Dissipation (Ppp)
- 1.5kW
- Number of Channels
- 1
- Voltage - Breakdown
- 7.07V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 1mA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.334 g
Overview
Key features
- 1500W peak pulse power dissipation
- 5.0V to 200V breakdown voltage
- Glass passivated die construction
- Unidirectional and bidirectional versions available
- Excellent clamping capability
- Fast response time
- Lead-free finish; RoHS compliant
- Halogen and antimony free. "Green" device
