DIODESDatasheet (PDF)

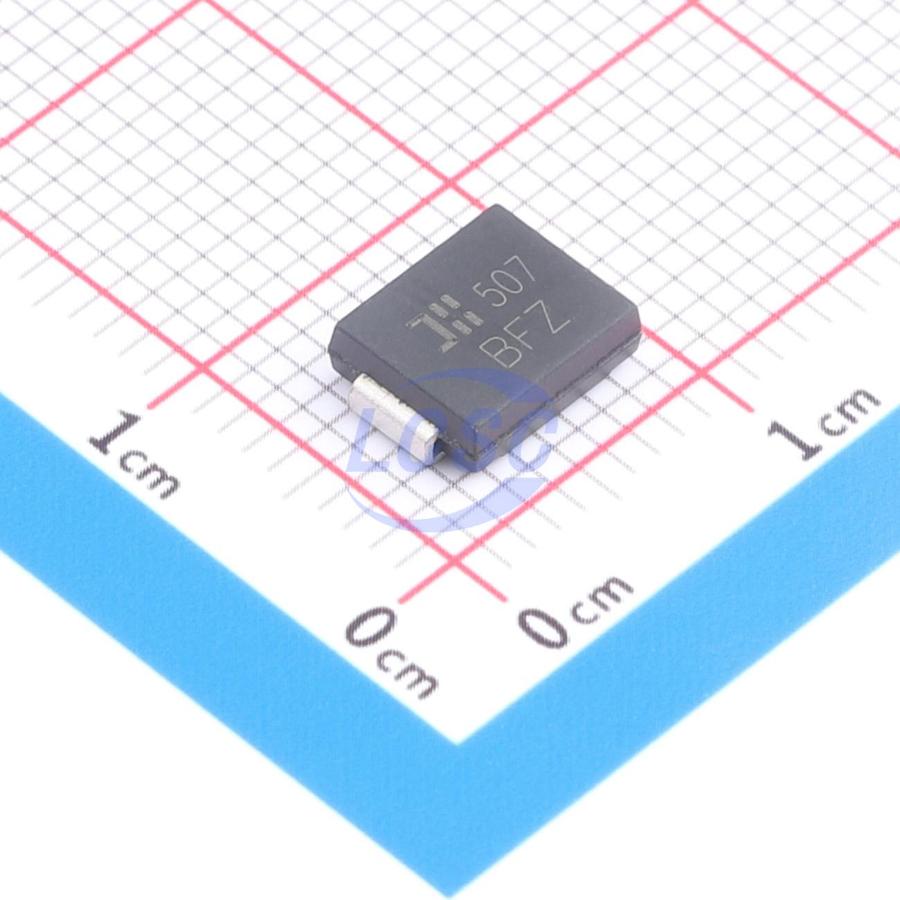

SMCJ51CAQ-13-F
82.4VC Clamp TVS DIODE SMC
SMCROHS3 CompliantActive
- Manufacturer
- DIODES
- Manufacturer part #
- SMCJ51CAQ-13-F
- Store part #
- C7012044
- Package / case
- SMC
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
76 in stock
#C7012044
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹182.06 | ₹182.06 |
| 10+ | ₹179.48 | ₹1,794.80 |
| 30+ | ₹177.55 | ₹5,326.50 |
| 100+ | ₹175.62 | ₹17,562.00 |
1 × ₹182.06
₹182.06
excl. GST
₹214.83 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SMCJ51CAQ-13-F
₹182.06 for 1 + GST
Specifications
- Clamping Voltage
- 82.4V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 18.2A@10/1000us
- Peak Pulse Power Dissipation (Ppp)
- 1.5kW
- Number of Channels
- 1
- Voltage - Breakdown
- 56.7V
- type
- TVS
- Reverse Leakage Current (Ir)
- 5uA
- Polarity
- Unidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 51V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.341 g
Overview
Suitable to protect sensitive automotive circuits against surges defined in ISO7637-2 and against electrostatic discharges according to ISO10605.
Key features
- 1,500W Peak Pulse Power Dissipation
- 5V to 110V Standoff Voltages
- Glass Passivated Die Construction
- Unidirectional and Bidirectional Versions Available
- Excellent Clamping Capability
- Fast Response Time
- Lead-Free Finish; RoHS Compliant
- Halogen and Antimony Free. “Green” Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SMCJ51A#C3721013SMC · SMC(DO-214AB) | SMC | SMC(DO-214AB) | 5 | ₹42.83 · 5 in stock | View |
 | SMCJ51A#C2990101Liown · SMC(DO-214AB) | Liown | SMC(DO-214AB) | 4,815 | ₹13.23 · 4,815 in stock | View |
 | SMCJ51A#C39831908RUILON · DO-214AB(SMC) | RUILON | DO-214AB(SMC) | 490 | ₹49.12 · 490 in stock | View |
 | SMCJ51A#C42371549R+O · SMC(DO-214AB) | R+O | SMC(DO-214AB) | 57,055 | ₹15.64 · 57,055 in stock | View |
 | SMCJ51A#C438115Jingdao Microelectronics · SMC | Jingdao Microelectronics | SMC | 14,180 | ₹14.01 · 14,180 in stock | View |
