DIODESDatasheet (PDF)

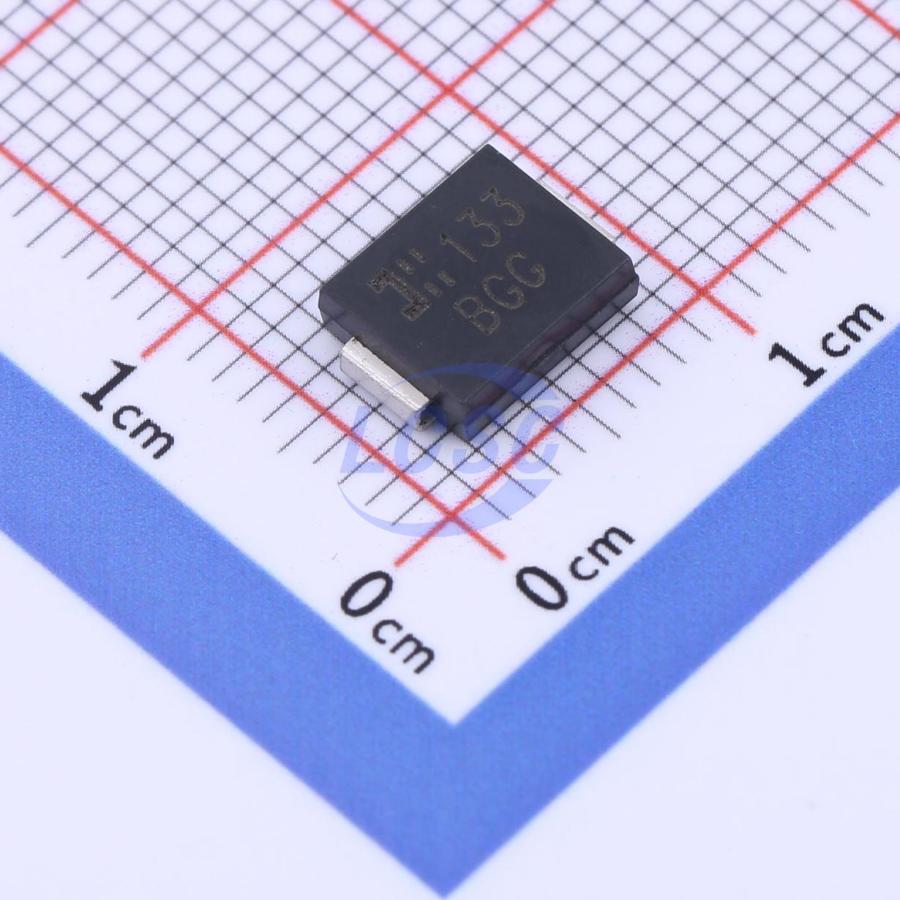

SMCJ58CA-13-F
93.6VC Clamp 16A Ipp TVS DIODE SMC(DO-214AB)
SMC(DO-214AB)ROHS CompliantActive
- Manufacturer
- DIODES
- Manufacturer part #
- SMCJ58CA-13-F
- Store part #
- C135181
- Package / case
- SMC(DO-214AB)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
575 in stock
#C135181
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹38.30 | ₹191.50 |
| 50+ | ₹30.48 | ₹1,524.00 |
| 150+ | ₹27.13 | ₹4,069.50 |
| 500+ | ₹22.94 | ₹11,470.00 |
| 3,000+ | ₹21.09 | ₹63,270.00 |
| 6,000+ | ₹19.96 | ₹1,19,760.00 |
5 × ₹38.30
₹191.50
excl. GST
₹225.97 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SMCJ58CA-13-F
₹191.50 for 5 + GST
Specifications
- Clamping Voltage
- 93.6V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 16A
- Peak Pulse Power Dissipation (Ppp)
- 1.5kW
- Number of Channels
- 1
- Voltage - Breakdown
- 71.2V
- type
- TVS
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 5uA
- Reverse Stand-Off Voltage (Vrwm)
- 58V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.35 g
Overview
Key features
- 1500W peak pulse power dissipation
- 5.0V to 200V breakdown voltage
- Glass passivated die construction
- Unidirectional and bidirectional versions available
- Excellent clamping capability
- Fast response time
- Lead-free finish; RoHS compliant
- Halogen and antimony free. "Green" device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SMCJ58CA#C126292RUILON · DO-214AB(SMC) | RUILON | DO-214AB(SMC) | 2,099 | ₹24.00 · 2,099 in stock | View |
 | SMCJ58CA#C3719939BOURNS · DO-214AB(SMC) | BOURNS | DO-214AB(SMC) | 6 | ₹91.14 · 6 in stock | View |
 | SMCJ58CA#C413589Littelfuse · DO-214AB | Littelfuse | DO-214AB | 850 | ₹45.48 · 850 in stock | View |
| SMCJ58CA-TP#C1975512MCC · SMC(DO-214AB) | MCC | SMC(DO-214AB) | 5,990 | ₹48.61 · 5,990 in stock | View | |
 | SMCJ58CA#C53260879TECH PUBLIC · SMC | TECH PUBLIC | SMC | 5,470 | ₹13.40 · 5,470 in stock | View |
