SETsafe | SETfuseDatasheet (PDF)

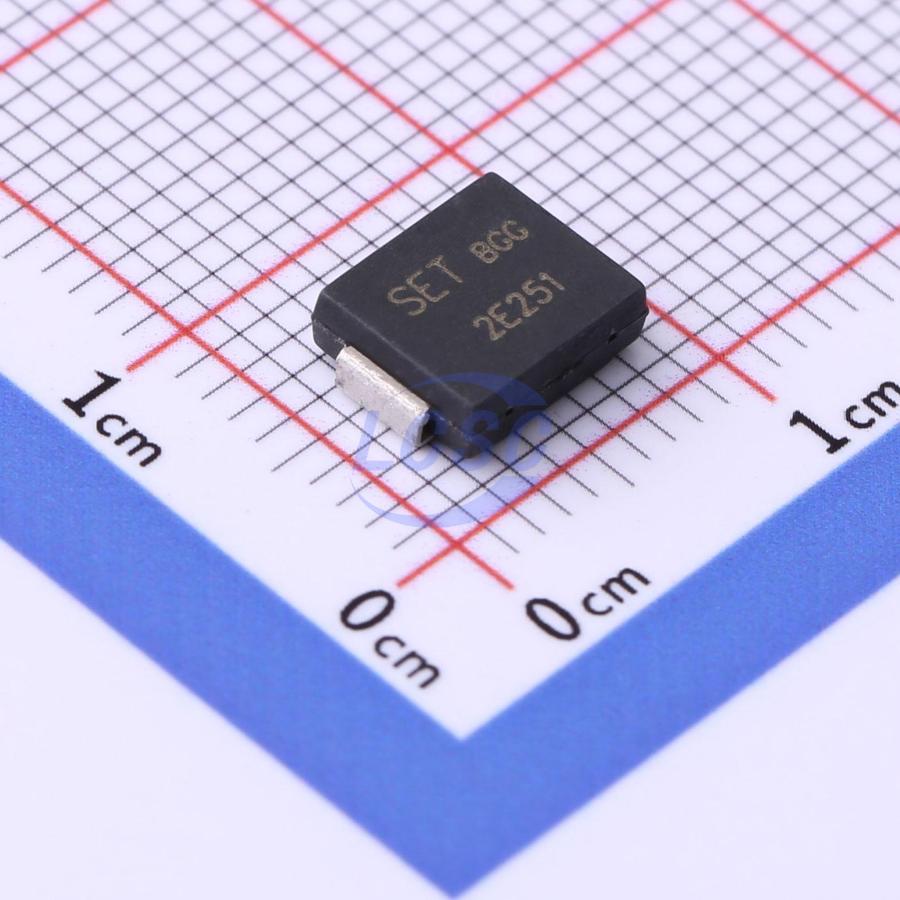

SMCJ58CA
93.6VC Clamp 16.1A Ipp TVS DIODE SMC
SMCRoHSActive
- Manufacturer
- SETsafe | SETfuse
- Manufacturer part #
- SMCJ58CA
- Store part #
- C2996556
- Package / case
- SMC
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,625 in stock
#C2996556
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹19.13 | ₹95.65 |
| 50+ | ₹15.23 | ₹761.50 |
| 150+ | ₹13.28 | ₹1,992.00 |
| 500+ | ₹11.81 | ₹5,905.00 |
| 3,000+ | ₹10.15 | ₹30,450.00 |
| 6,000+ | ₹9.57 | ₹57,420.00 |
5 × ₹19.13
₹95.65
excl. GST
₹112.87 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SMCJ58CA
₹95.65 for 5 + GST
Specifications
- Clamping Voltage
- 93.6V
- Operating Temperature
- -65℃~+150℃
- Peak Pulse Current (Ipp)
- 16.1A
- Peak Pulse Power Dissipation (Ppp)
- 1.5kW@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 64.4V
- type
- TVS
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 58V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.36 g
Overview
Transient Voltage Suppressor (TVS) is a circuit protection component that either attenuates (reduces) or filters a transient voltage spike (overvoltage), TVS diodes provide critical protection by going into avalanche breakdown within no more than a few nanoseconds after a strike, clamping the transient voltage, and routing its current to the ground.
Applications
- Communication Equipment
- Security & Protection
- Industrial Control Equipment
- Power Supply
- Automotive Electronics
- New Energy
- Lightning Protection
Key features
- Low incremental surge resistance
- Excellent clamping capability
- Low profile compact package with built-in strain relief
- Typical IR less than 1.0 μA above 12 V
- 1500 W peak pulse power capability with a 10/1000 μS waveform, repetition rate (duty cycle): 0.01%
- Surface mount application, space-saving
- Typical failure mode is short circuit from over-specified voltage or current
- IEC 61000-4-2 ESD 30 kV (Air), 30 kV (Contact)
- EFT protection of data lines in accordance with IEC 61000-4-4
- Very fast response time
- Glass passivated chip junction
- High temperature reflow soldering guaranteed: 260 °C/30 s
- Temperature coefficient typical value 0.1%
- Plastic package flammability rated V-0
- Moisture sensitivity level meets MSL Level 1
- Matte tin lead-free plated
- Halogen free and RoHS compliant
- Pb-free E3: 2nd level interconnect is Pb-free, terminal finish material is tin (Sn) (IPC/JEDEC J-STD-609A.01)
