DIODESDatasheet (PDF)

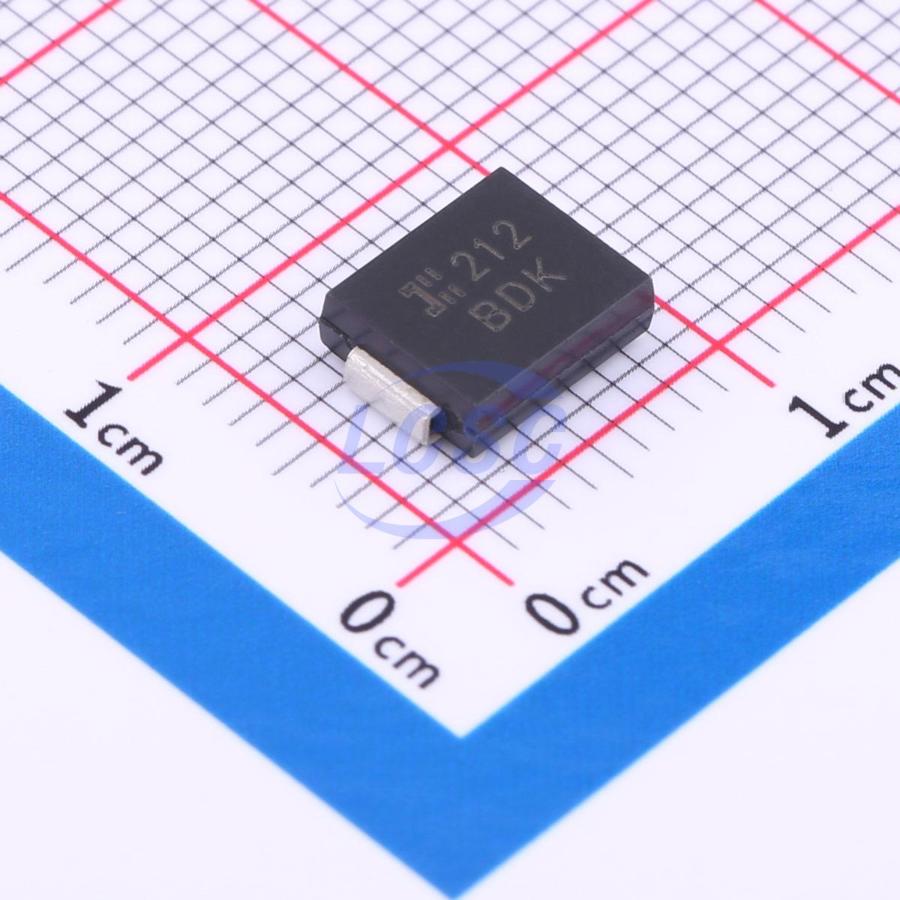

SMCJ6.5CA-13-F
11.2VC Clamp 133.9A Ipp TVS DIODE SMC
SMCROHS CompliantActive
TVS DIODE 6.5VWM 11.2VC SMC
- Manufacturer
- DIODES
- Manufacturer part #
- SMCJ6.5CA-13-F
- Store part #
- C135185
- Package / case
- SMC
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
16 in stock
#C135185
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹75.66 | ₹75.66 |
| 10+ | ₹63.20 | ₹632.00 |
| 30+ | ₹58.04 | ₹1,741.20 |
| 100+ | ₹51.37 | ₹5,137.00 |
| 500+ | ₹48.37 | ₹24,185.00 |
| 1,000+ | ₹46.65 | ₹46,650.00 |
1 × ₹75.66
₹75.66
excl. GST
₹89.28 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SMCJ6.5CA-13-F
₹75.66 for 1 + GST
Specifications
- Clamping Voltage
- 11.2V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 133.9A
- Peak Pulse Power Dissipation (Ppp)
- 1.5kW
- Number of Channels
- 1
- Voltage - Breakdown
- 7.98V
- type
- TVS
- Reverse Leakage Current (Ir)
- 500uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 6.5V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.28 g
Overview
Key features
- 1500W peak pulse power dissipation
- 5.0V to 200V breakdown voltage
- Glass passivated die construction
- Unidirectional and bidirectional versions available
- Excellent clamping capability
- Fast response time
- Lead-free finish; RoHS compliant
- Halogen and antimony free. "Green" device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SMCJ6.5CA-E3/57T#C1973341VISHAY · SMC(DO-214AB) | VISHAY | SMC(DO-214AB) | 29 | ₹212.90 · 29 in stock | View |
 | SMCJ6.5CA#C10241RUILON · DO-214AB(SMC) | RUILON | DO-214AB(SMC) | 3,315 | ₹29.48 · 3,315 in stock | View |
 | SMCJ6.5CA#C5248048GOODWORK · DO-214AB(SMC) | GOODWORK | DO-214AB(SMC) | 3,745 | ₹13.57 · 3,745 in stock | View |
 | SMCJ6.5CA#C2760156Littelfuse · DO-214AB | Littelfuse | DO-214AB | 540 | ₹39.43 · 540 in stock | View |
 | SMCJ6.5CA#C5161501ZHIDE · DO-214AB(SMC) | ZHIDE | DO-214AB(SMC) | 235 | ₹20.27 · 235 in stock | View |
