DIODESDatasheet (PDF)

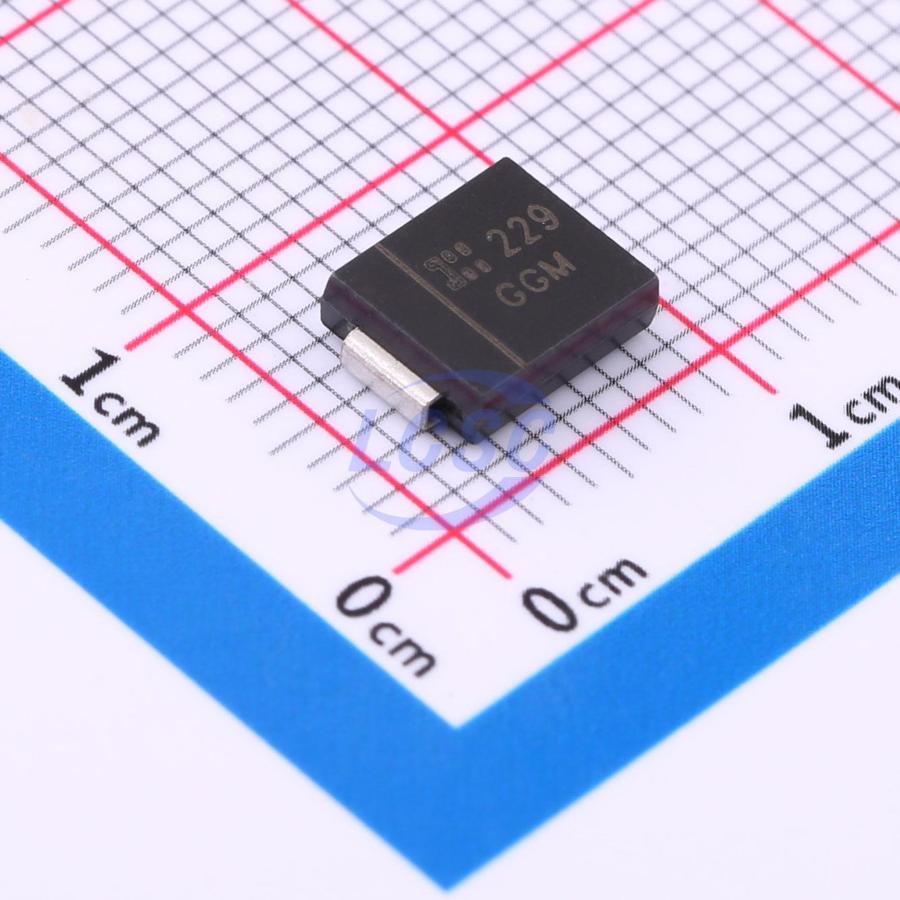

SMCJ64A-13-F
103VC Clamp 14.6A Ipp TVS DIODE SMC
SMCROHS CompliantActive
TVS DIODE 64VWM 103VC SMC
- Manufacturer
- DIODES
- Manufacturer part #
- SMCJ64A-13-F
- Store part #
- C135188
- Package / case
- SMC
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
335 in stock
#C135188
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹41.36 | ₹206.80 |
| 50+ | ₹32.92 | ₹1,646.00 |
| 150+ | ₹29.29 | ₹4,393.50 |
| 500+ | ₹24.78 | ₹12,390.00 |
| 3,000+ | ₹22.77 | ₹68,310.00 |
| 6,000+ | ₹21.56 | ₹1,29,360.00 |
5 × ₹41.36
₹206.80
excl. GST
₹244.02 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SMCJ64A-13-F
₹206.80 for 5 + GST
Specifications
- Clamping Voltage
- 103V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 14.6A
- Peak Pulse Power Dissipation (Ppp)
- 1.5kW
- Number of Channels
- 1
- Voltage - Breakdown
- 78.6V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 5uA
- Reverse Stand-Off Voltage (Vrwm)
- 64V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.358 g
Overview
Key features
- 1500W peak pulse power dissipation
- 5.0V to 200V breakdown voltage
- Glass passivated die construction
- Unidirectional and bidirectional versions available
- Excellent clamping capability
- Fast response time
- Lead-free finish; RoHS compliant
- Halogen and antimony free. "Green" device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SMCJ64A#C22380741BORN · SMC(DO-214AB) | BORN | SMC(DO-214AB) | 625 | ₹23.11 · 625 in stock | View |
 | SMCJ64A#C4154629TWGMC · DO-214AB(SMC) | TWGMC | DO-214AB(SMC) | 3,000 | ₹14.88 · 3,000 in stock | View |
 | SMCJ64A#C42394427R+O · SMC(DO-214AB) | R+O | SMC(DO-214AB) | 3,540 | ₹16.56 · 3,540 in stock | View |
 | SMCJ64A#C5161481ZHIDE · DO-214AB(SMC) | ZHIDE | DO-214AB(SMC) | 35 | ₹20.27 · 35 in stock | View |
 | SMCJ64A#C2994062MDD(Microdiode Semiconductor) · SMC | MDD(Microdiode Semiconductor) | SMC | 2,800 | ₹16.13 · 2,800 in stock | View |
