DIODESDatasheet (PDF)

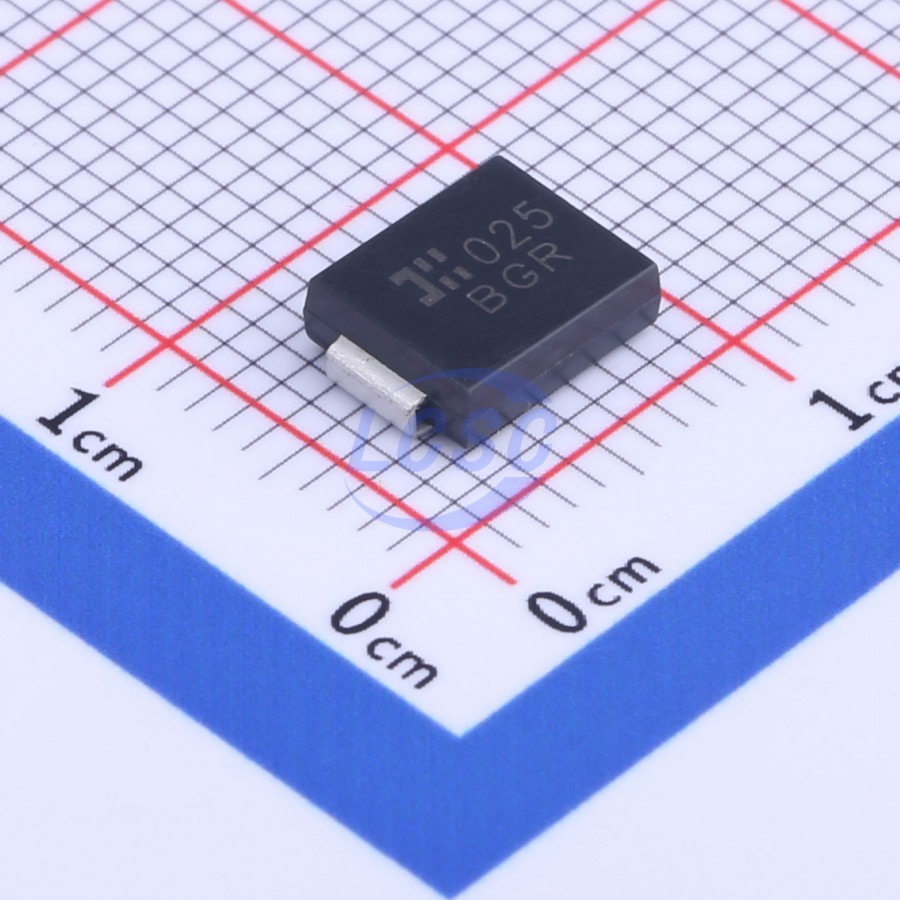

SMCJ75CA-13-F
121VC Clamp 12.4A Ipp TVS DIODE SMC
SMCROHS CompliantActive
TVS DIODE 75VWM 121VC SMC
- Manufacturer
- DIODES
- Manufacturer part #
- SMCJ75CA-13-F
- Store part #
- C135197
- Package / case
- SMC
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
35 in stock
#C135197
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹43.46 | ₹217.30 |
| 50+ | ₹34.58 | ₹1,729.00 |
| 150+ | ₹30.79 | ₹4,618.50 |
| 500+ | ₹26.04 | ₹13,020.00 |
| 3,000+ | ₹23.92 | ₹71,760.00 |
| 6,000+ | ₹22.65 | ₹1,35,900.00 |
5 × ₹43.46
₹217.30
excl. GST
₹256.41 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SMCJ75CA-13-F
₹217.30 for 5 + GST
Specifications
- Clamping Voltage
- 121V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 12.4A
- Peak Pulse Power Dissipation (Ppp)
- 1.5kW
- Number of Channels
- 1
- Voltage - Breakdown
- 92.1V
- type
- TVS
- Reverse Leakage Current (Ir)
- 5uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 75V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.357 g
Overview
Key features
- 1500W peak pulse power dissipation
- 5.0V to 200V breakdown voltage
- Glass passivated die construction
- Unidirectional and bidirectional versions available
- Excellent clamping capability
- Fast response time
- Lead-free finish; RoHS compliant
- Halogen and antimony free. "Green" device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SMCJ75CA#C2985001GOODWORK · DO-214AB(SMC) | GOODWORK | DO-214AB(SMC) | 2,995 | ₹13.22 · 2,995 in stock | View |
 | SMCJ75CA-E3/57T#C1976349VISHAY · SMC(DO-214AB) | VISHAY | SMC(DO-214AB) | 87 | ₹106.70 · 87 in stock | View |
 | SMCJ75CA#C1973021Littelfuse · DO-214AB | Littelfuse | DO-214AB | 2,070 | ₹60.02 · 2,070 in stock | View |
 | SMCJ75CA#C10247RUILON · DO-214AB(SMC) | RUILON | DO-214AB(SMC) | 120 | ₹44.97 · 120 in stock | View |
 | SMCJ75CA#C53260883TECH PUBLIC · SMC | TECH PUBLIC | SMC | 2,880 | ₹13.43 · 2,880 in stock | View |
