DIODESDatasheet (PDF)

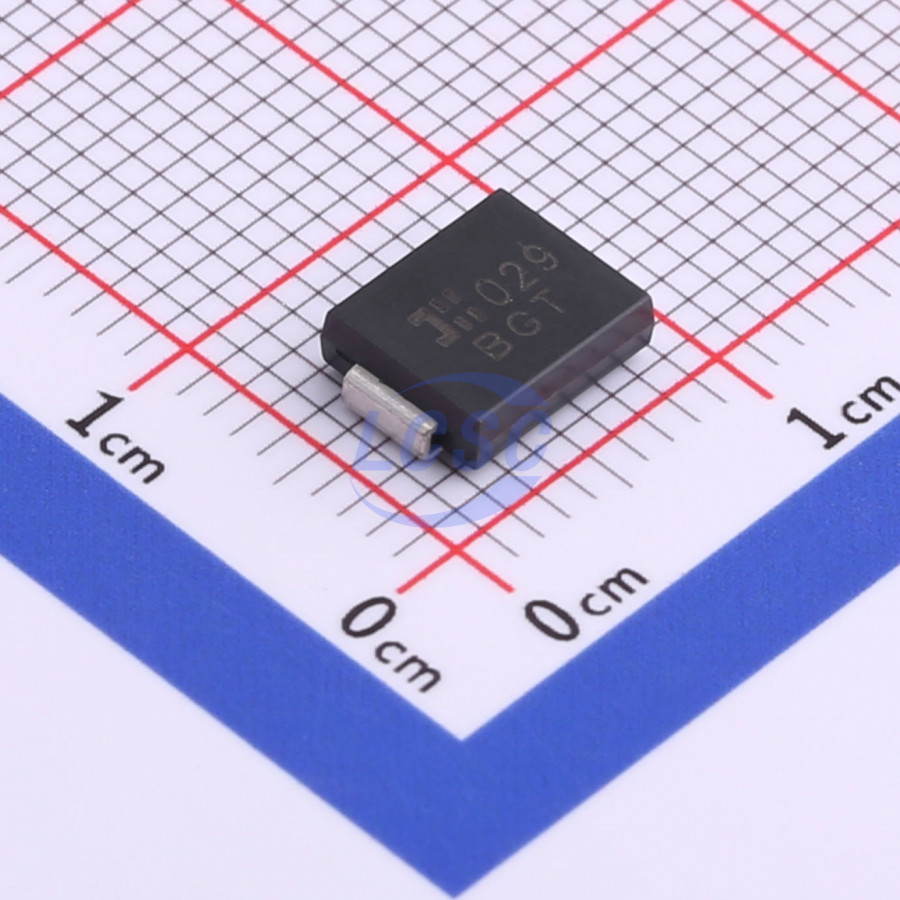

SMCJ78CA-13-F
126VC Clamp 11.4A Ipp TVS DIODE SMC
SMCROHS CompliantActive
TVS DIODE 78VWM 126VC SMC
- Manufacturer
- DIODES
- Manufacturer part #
- SMCJ78CA-13-F
- Store part #
- C135199
- Package / case
- SMC
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
195 in stock
#C135199
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹27.45 | ₹137.25 |
| 50+ | ₹26.86 | ₹1,343.00 |
| 150+ | ₹26.46 | ₹3,969.00 |
| 500+ | ₹26.06 | ₹13,030.00 |
5 × ₹27.45
₹137.25
excl. GST
₹161.95 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SMCJ78CA-13-F
₹137.25 for 5 + GST
Specifications
- Clamping Voltage
- 126V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 11.4A
- Peak Pulse Power Dissipation (Ppp)
- 1.5kW
- Number of Channels
- 1
- Voltage - Breakdown
- 95.8V
- type
- TVS
- Reverse Leakage Current (Ir)
- 5uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 78V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.354 g
Overview
Key features
- 1500W peak pulse power dissipation
- 5.0V to 200V breakdown voltage
- Glass passivated die construction
- Unidirectional and bidirectional versions available
- Excellent clamping capability
- Fast response time
- Lead-free finish; RoHS compliant
- Halogen and antimony free. "Green" device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SMCJ78CA#C53260884TECH PUBLIC · SMC | TECH PUBLIC | SMC | 5,845 | ₹13.36 · 5,845 in stock | View |
 | SMCJ78CA#C22371761JUXING · SMC | JUXING | SMC | 2,920 | ₹15.37 · 2,920 in stock | View |
 | SMCJ78CA#C4154686TWGMC · DO-214AB(SMC) | TWGMC | DO-214AB(SMC) | 340 | ₹11.55 · 340 in stock | View |
 | SMCJ78CA#C438225Jingdao Microelectronics · SMC | Jingdao Microelectronics | SMC | 1,970 | ₹13.67 · 1,970 in stock | View |
 | SMCJ78CA#C49066972R+O · SMC(DO-214AB) | R+O | SMC(DO-214AB) | 2,035 | ₹20.22 · 2,035 in stock | View |
