DIODESDatasheet (PDF)

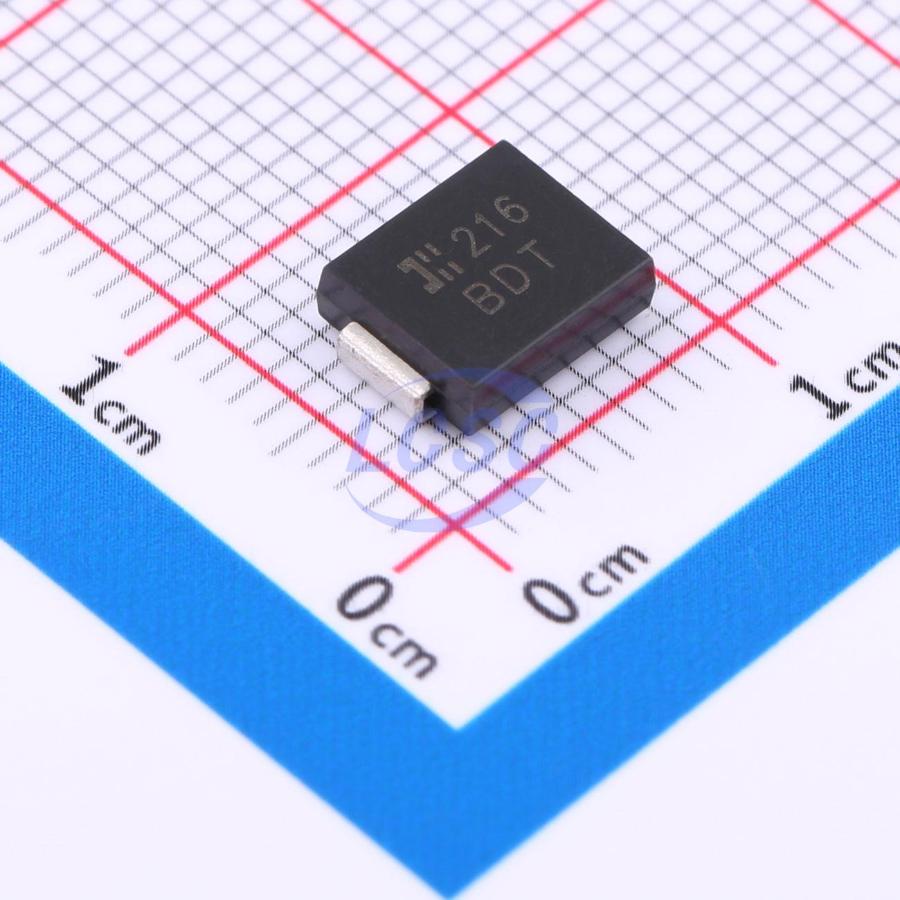

SMCJ8.5CA-13-F
14.4VC Clamp 104.2A Ipp TVS DIODE SMC
SMCROHS3 CompliantActive
TVS DIODE 8.5VWM 14.4VC SMC
- Manufacturer
- DIODES
- Manufacturer part #
- SMCJ8.5CA-13-F
- Store part #
- C135203
- Package / case
- SMC
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
30 in stock
#C135203
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹42.85 | ₹214.25 |
| 50+ | ₹42.27 | ₹2,113.50 |
| 150+ | ₹41.89 | ₹6,283.50 |
| 500+ | ₹41.49 | ₹20,745.00 |
5 × ₹42.85
₹214.25
excl. GST
₹252.82 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SMCJ8.5CA-13-F
₹214.25 for 5 + GST
Specifications
- Clamping Voltage
- 14.4V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 104.2A
- Peak Pulse Power Dissipation (Ppp)
- 1.5kW
- Number of Channels
- 1
- Voltage - Breakdown
- 10.4V
- type
- TVS
- Reverse Leakage Current (Ir)
- 20uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 8.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.34 g
Overview
Key features
- 1500W peak pulse power dissipation
- 5.0V to 200V breakdown voltage
- Glass passivated die construction
- Unidirectional and bidirectional versions available
- Excellent clamping capability
- Fast response time
- Lead-free finish; RoHS compliant
- Halogen and antimony free. "Green" device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SMCJ8.5CA#C3718933Littelfuse · DO-214AB | Littelfuse | DO-214AB | 4 | ₹65.46 · 4 in stock | View |
 | SMCJ8.5CA-E3/57T#C1847677VISHAY · DO-214AB(SMCJ) | VISHAY | DO-214AB(SMCJ) | 20 | ₹82.33 · 20 in stock | View |
 | SMCJ8.5CA#C4154656TWGMC · DO-214AB(SMC) | TWGMC | DO-214AB(SMC) | 395 | ₹13.98 · 395 in stock | View |
 | SMCJ8.5CA#C53260862TECH PUBLIC · SMC | TECH PUBLIC | SMC | 660 | ₹13.40 · 660 in stock | View |
 | SMCJ8.5CA#C2990128Liown · SMC(DO-214AB) | Liown | SMC(DO-214AB) | 2,905 | ₹20.47 · 2,905 in stock | View |
