DIODESDatasheet (PDF)

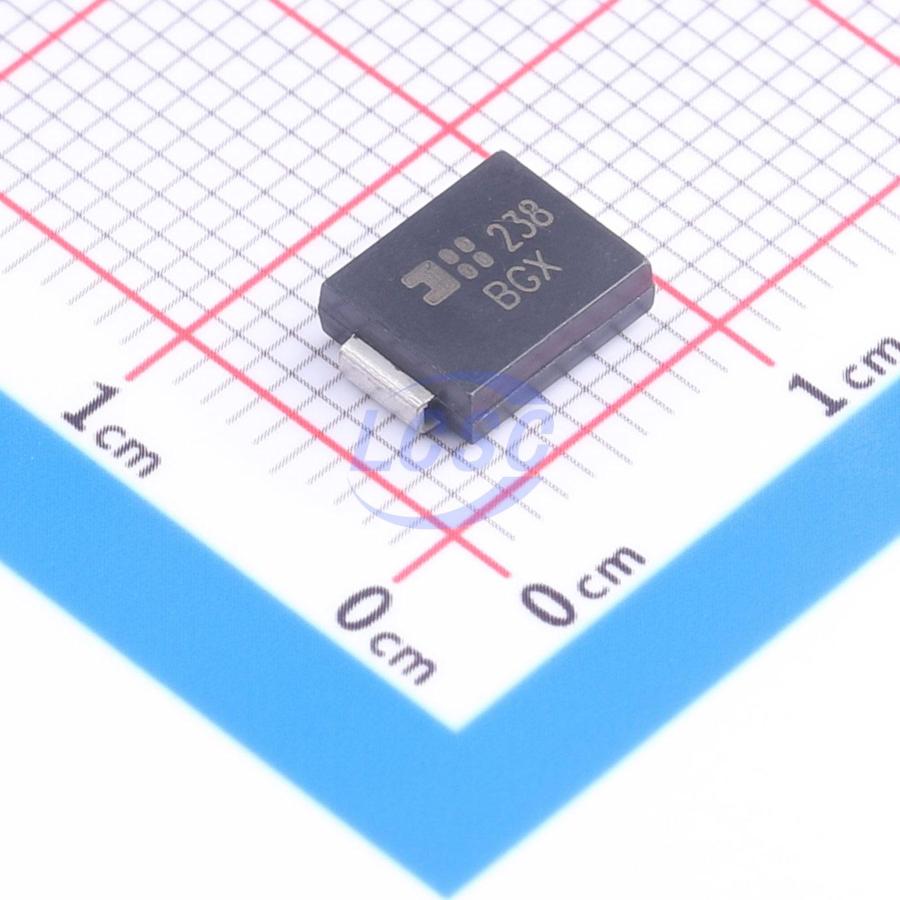

SMCJ90CA-13-F
126VC Clamp 5.5A Ipp TVS DIODE SMC(DO-214AB)
SMC(DO-214AB)ROHS3 CompliantActive
- Manufacturer
- DIODES
- Manufacturer part #
- SMCJ90CA-13-F
- Store part #
- C135209
- Package / case
- SMC(DO-214AB)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
25 in stock
#C135209
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹135.17 | ₹135.17 |
| 10+ | ₹131.69 | ₹1,316.90 |
| 30+ | ₹129.31 | ₹3,879.30 |
| 100+ | ₹127.14 | ₹12,714.00 |
1 × ₹135.17
₹135.17
excl. GST
₹159.50 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SMCJ90CA-13-F
₹135.17 for 1 + GST
Specifications
- Clamping Voltage
- 126V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 5.5A
- Peak Pulse Power Dissipation (Ppp)
- 1.5kW
- Number of Channels
- 1
- Voltage - Breakdown
- 100V
- type
- TVS
- Reverse Leakage Current (Ir)
- 5uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 90V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.824 g
Overview
Key features
- 1500W peak pulse power dissipation
- 5.0V to 200V breakdown voltage
- Glass passivated die construction
- Unidirectional and bidirectional versions available
- Excellent clamping capability
- Fast response time
- Lead-free finish; RoHS compliant
- Halogen and antimony free. "Green" device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| SMCJ90CA#C3720693BOURNS · DO-214AB(SMC) | BOURNS | DO-214AB(SMC) | 100 | ₹120.37 · 100 in stock | View | |
 | SMCJ90CA#C4154688TWGMC · SMC | TWGMC | SMC | 440 | ₹13.39 · 440 in stock | View |
 | SMCJ90CA#C2826468Slkor · SMC | Slkor | SMC | 1,445 | ₹15.69 · 1,445 in stock | View |
 | SMCJ90CA#C2990154Liown · SMC(DO-214AB) | Liown | SMC(DO-214AB) | 3,185 | ₹19.87 · 3,185 in stock | View |
 | SMCJ90CA#C5267365JKSEMI · SMC | JKSEMI | SMC | 2,850 | ₹17.11 · 2,850 in stock | View |
