LittelfuseDatasheet (PDF)
SMDJ28A

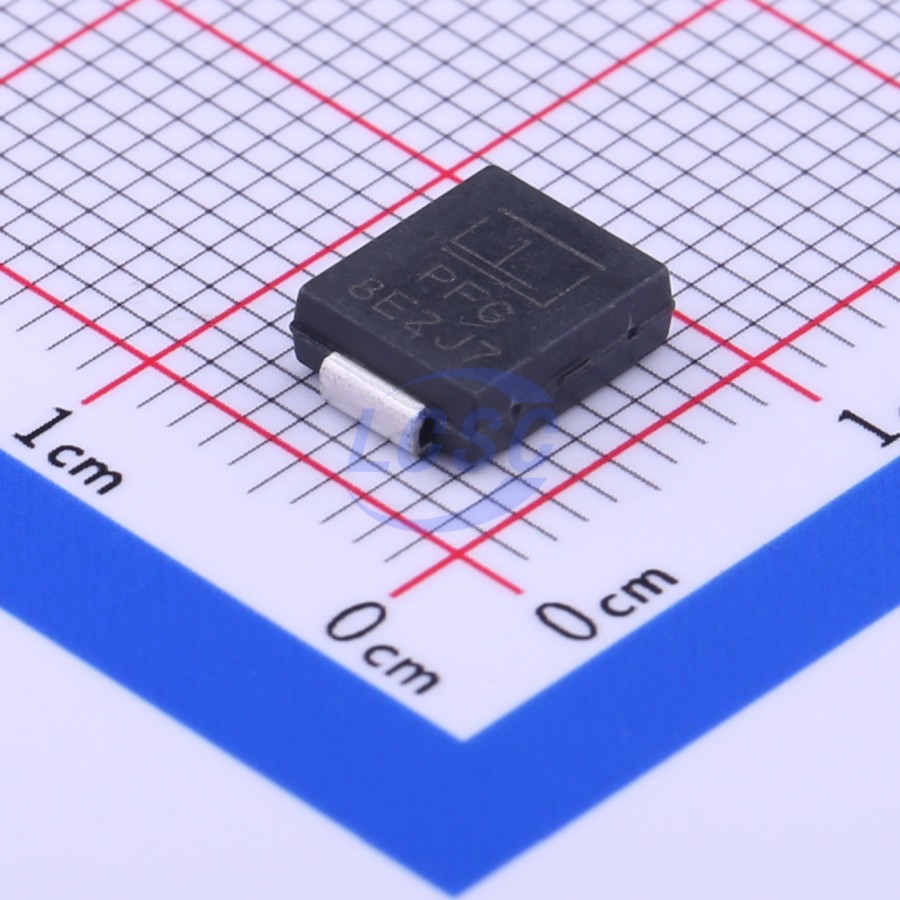

45.4VC Clamp 66.1A Ipp TVS DIODE DO-214AB
DO-214ABROHS3 CompliantActive
TVS DIODE 28VWM 45.4VC DO-214AB
- Manufacturer
- Littelfuse
- Manufacturer part #
- SMDJ28A
- Store part #
- C224071
- Package / case
- DO-214AB
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
425 in stock
#C224071
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹49.81 | ₹249.05 |
| 50+ | ₹39.69 | ₹1,984.50 |
| 150+ | ₹35.35 | ₹5,302.50 |
| 500+ | ₹29.95 | ₹14,975.00 |
| 3,000+ | ₹27.54 | ₹82,620.00 |
| 6,000+ | ₹26.09 | ₹1,56,540.00 |
5 × ₹49.81
₹249.05
excl. GST
₹293.88 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SMDJ28A
₹249.05 for 5 + GST
Specifications
- Clamping Voltage
- 45.4V
- Operating Temperature
- -65℃~+150℃
- Peak Pulse Current (Ipp)
- 66.1A
- Peak Pulse Power Dissipation (Ppp)
- 3kW@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 34.4V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 2uA
- Reverse Stand-Off Voltage (Vrwm)
- 28V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.448 g
Overview
The SMDJ series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.
Applications
- TVS devices are ideal for the protection of I/O Interfaces, VCC bus and other vulnerable circuits used in Telecom, Computer, Industrial and Consumer electronic applications.
Key features
- 3000W peak pulse power capability at 10/1000μs waveform, repetition rate (duty cycles): 0.01%
- For surface mounted applications in order to optimize board space
- Low profile package
- Typical failure mode is short from over-specified voltage or current
- Whisker test is conducted based on JEDEC JESD201A per its table 4a and 4c
- IEC-61000-4-2 ESD 30kV (Air), 30kV (Contact)
- ESD protection of data lines in accordance with IEC 61000-4-2
- EFT protection of data lines in accordance with IEC 61000-4-4
- Built-in strain relief
- Glass passivated chip junction
- Fast response time: typically less than 1.0ps from 0V to BV min
- Excellent clamping capability
- Low incremental surge resistance
- Typical IR less than 2μA when VBR min>12V
- High temperature to reflow soldering guaranteed: 260°C /40sec
- VBR @TJ = VBR@25°C × (1+αT×(TJ - 25)) (αT: Temperature Coefficient, typical value is 0.1%)
- Plastic package is flammability rated V-0 per Underwriters Laboratories
- Meet MSL level1, per J-STD-020, LF maximum peak of 260°C
- Matte tin lead–free plated
- Halogen free and RoHS compliant
- Pb-free E3 means 2nd level interconnect is Pb-free and the terminal finish material is tin(Sn) (IPC/JEDEC J-STD609A.01)
