LittelfuseDatasheet (PDF)
SMDJ36A

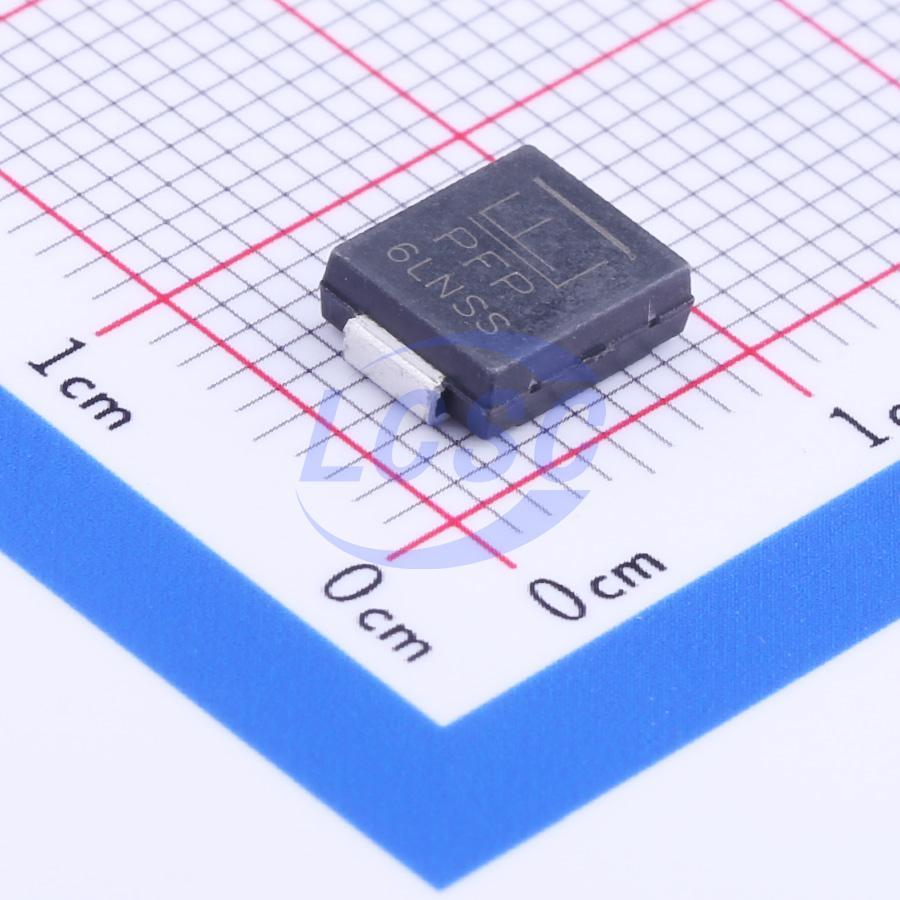

58.1VC Clamp 51.6A@10/1000us Ipp TVS DIODE DO-214AB
DO-214ABROHS3 CompliantActive
TVS DIODE 36VWM 58.1VC DO-214AB
- Manufacturer
- Littelfuse
- Manufacturer part #
- SMDJ36A
- Store part #
- C108363
- Package / case
- DO-214AB
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
581 in stock
#C108363
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹75.68 | ₹75.68 |
| 10+ | ₹59.80 | ₹598.00 |
| 30+ | ₹53.07 | ₹1,592.10 |
| 100+ | ₹44.59 | ₹4,459.00 |
| 500+ | ₹40.67 | ₹20,335.00 |
| 1,000+ | ₹38.50 | ₹38,500.00 |
1 × ₹75.68
₹75.68
excl. GST
₹89.30 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SMDJ36A
₹75.68 for 1 + GST
Specifications
- Clamping Voltage
- 58.1V
- Operating Temperature
- -65℃~+150℃
- Peak Pulse Current (Ipp)
- 51.6A@10/1000us
- Peak Pulse Power Dissipation (Ppp)
- 3kW@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 44.2V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 2uA
- Reverse Stand-Off Voltage (Vrwm)
- 36V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.448 g
Overview
The SMDJ series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.
Applications
- TVS devices are ideal for the protection of I/O Interfaces, VCC bus and other vulnerable circuits used in Telecom, Computer, Industrial and Consumer electronic applications.
Key features
- 3000W peak pulse power capability at 10/1000μs waveform, repetition rate (duty cycles): 0.01%
- For surface mounted applications in order to optimize board space
- Low profile package
- Typical failure mode is short from over-specified voltage or current
- Whisker test is conducted based on JEDEC JESD201A per its table 4a and 4c
- IEC-61000-4-2 ESD 30kV (Air), 30kV (Contact)
- ESD protection of data lines in accordance with IEC 61000-4-2
- EFT protection of data lines in accordance with IEC 61000-4-4
- Built-in strain relief
- Glass passivated chip junction
- Fast response time: typically less than 1.0ps from 0V to BV min
- Excellent clamping capability
- Low incremental surge resistance
- Typical IR less than 2μA when VBR min>12V
- High temperature to reflow soldering guaranteed: 260°C /40sec
- VBR @TJ = VBR@25°C × (1+αT×(TJ - 25)) (αT: Temperature Coefficient, typical value is 0.1%)
- Plastic package is flammability rated V-0 per Underwriters Laboratories
- Meet MSL level1, per J-STD-020, LF maximum peak of 260°C
- Matte tin lead–free plated
- Halogen free and RoHS compliant
- Pb-free E3 means 2nd level interconnect is Pb-free and the terminal finish material is tin(Sn) (IPC/JEDEC J-STD609A.01)
Alternatives
Similar parts — check the datasheet before substituting.
