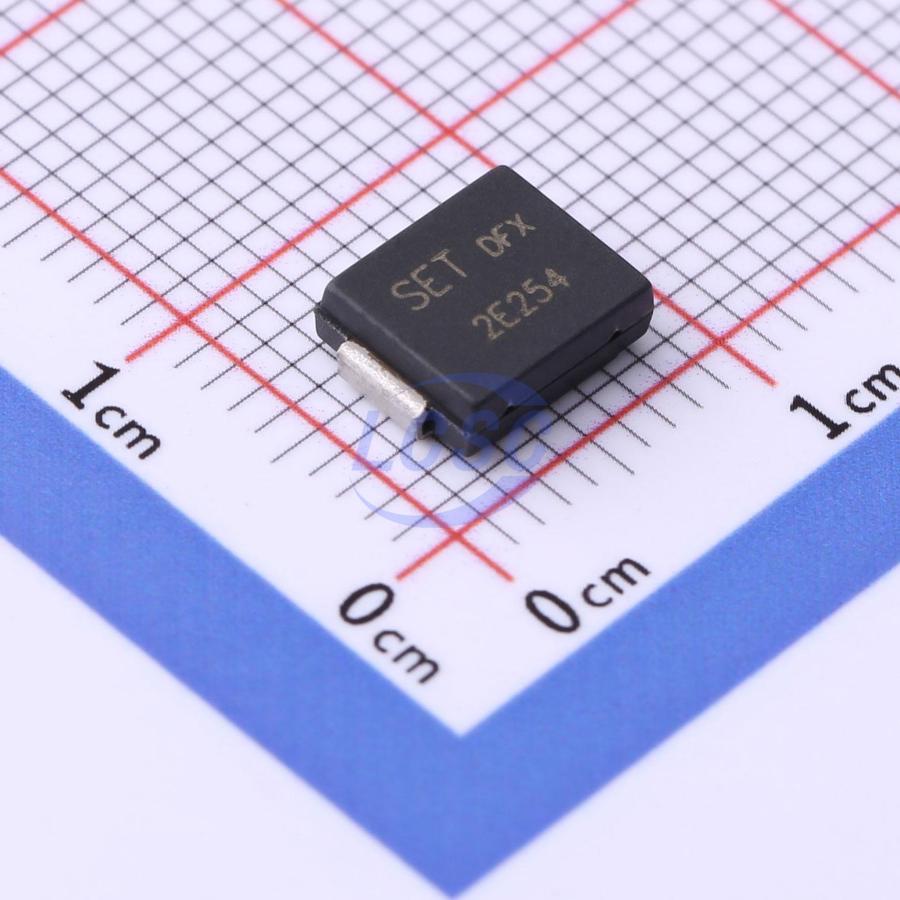

SMDJ48CA
100VC Clamp 194A@8/20us Ipp TVS DIODE DO-214AB
TVS DIODE 48VWM 100VC DO-214AB
- Manufacturer
- SETsafe | SETfuse
- Manufacturer part #
- SMDJ48CA
- Store part #
- C2996991
- Package / case
- DO-214AB
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,694 in stock
#C2996991
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹25.60 | ₹25.60 |
| 10+ | ₹20.07 | ₹200.70 |
| 30+ | ₹17.70 | ₹531.00 |
| 100+ | ₹14.74 | ₹1,474.00 |
| 500+ | ₹13.43 | ₹6,715.00 |
| 1,000+ | ₹11.97 | ₹11,970.00 |
1 × ₹25.60
₹25.60
excl. GST
₹30.21 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SMDJ48CA
₹25.60 for 1 + GST
Specifications
- Clamping Voltage
- 77.4V
- Operating Temperature
- -65℃~+150℃
- Peak Pulse Current (Ipp)
- 38.8A
- Peak Pulse Power Dissipation (Ppp)
- 3kW@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 53.3V
- type
- TVS
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 2uA
- Reverse Stand-Off Voltage (Vrwm)
- 48V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.43 g
Overview
Transient Voltage Suppressor (TVS) is a circuit protection component that attenuates or filters transient voltage spikes (overvoltage). Upon a surge event, it undergoes avalanche breakdown within a few nanoseconds, redirecting the surge current to ground and clamping the voltage within a safe range, thereby delivering high-efficiency voltage protection.
Applications
- Communication Equipment
- Security & Protection
- Industrial Control Equipment
- Power Supply
- Automotive Electronics
- New Energy
- Lightning Protection
Key features
- Low incremental surge resistance
- Excellent clamping capability
- Low profile compact package with built-in strain relief
- Typical IR less than 2.0 μA above 12 V
- 3000 W peak pulse power with 10/1000 μS waveform, repetition rate 0.01%
- Surface mount application, space-saving
- Typical failure mode is short circuit from over-voltage or over-current
- IEC 61000-4-2 ESD 30 kV (Air), 30 kV (Contact)
- EFT protection of data lines per IEC 61000-4-4
- Very fast response time
- Glass passivated junction
- High temperature reflow soldering guaranteed: 260 °C/30 s
- Temperature coefficient typical value 0.1%
- Plastic package flammability rated V-0
- Moisture sensitivity meets MSL Level 1
- Matte tin plated leads
- Halogen free and RoHS compliant
- Pb-free E3: 2nd level interconnect is Pb-free, terminal finish is tin (Sn) (IPC/JEDEC J-STD-609A.01)
