UMWDatasheet (PDF)

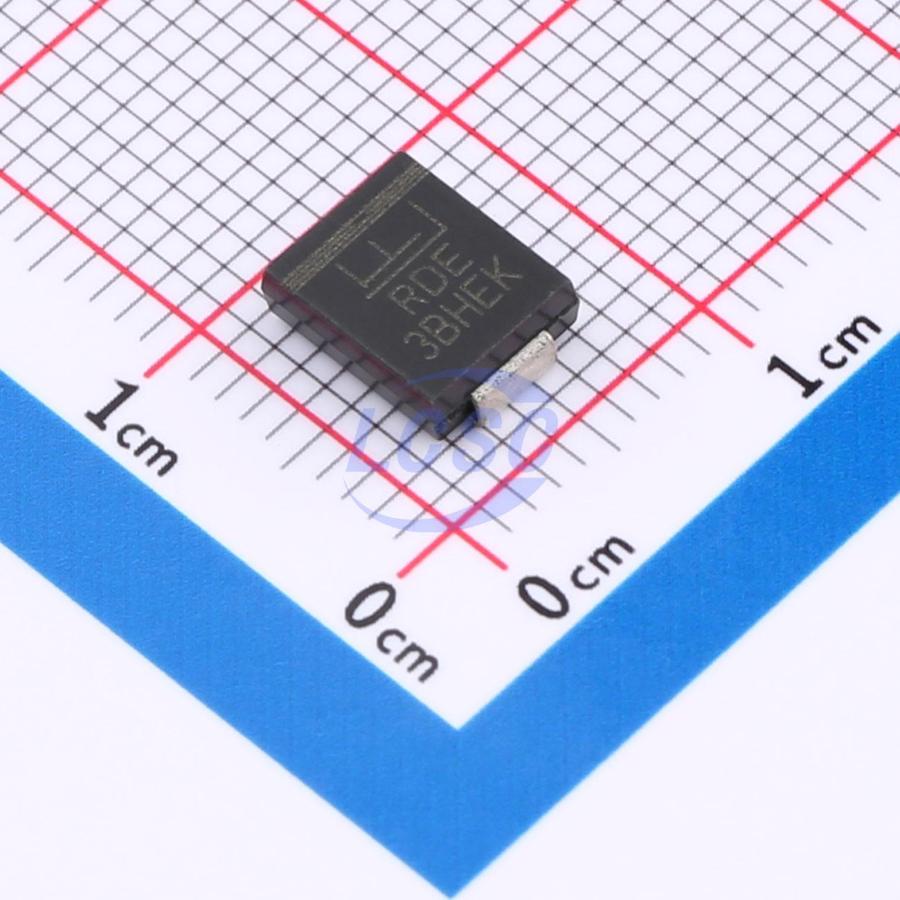

SMDJ5.0A
9.2VC Clamp 326.1A@10/1000us Ipp TVS DIODE SMC
SMCROHS CompliantActive
TVS DIODE 5VWM 9.2VC SMC
- Manufacturer
- UMW
- Manufacturer part #
- SMDJ5.0A
- Store part #
- C2758570
- Package / case
- SMC
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,310 in stock
#C2758570
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹21.59 | ₹107.95 |
| 50+ | ₹16.88 | ₹844.00 |
| 150+ | ₹14.53 | ₹2,179.50 |
| 500+ | ₹12.75 | ₹6,375.00 |
| 3,000+ | ₹11.34 | ₹34,020.00 |
| 6,000+ | ₹10.64 | ₹63,840.00 |
5 × ₹21.59
₹107.95
excl. GST
₹127.38 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SMDJ5.0A
₹107.95 for 5 + GST
Specifications
- Clamping Voltage
- 9.2V
- Operating Temperature
- -65℃~+150℃
- Peak Pulse Current (Ipp)
- 326.1A@10/1000us
- Peak Pulse Power Dissipation (Ppp)
- 3kW@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 7V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 800uA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.382 g
Overview
Key features
- Surface mount application, optimized board space
- Low-profile package
- Built-in stress relief structure
- Glass passivated junction
- Low inductance
- 3000W peak pulse power capability at 10/1000μs waveform
