JSCJDatasheet (PDF)

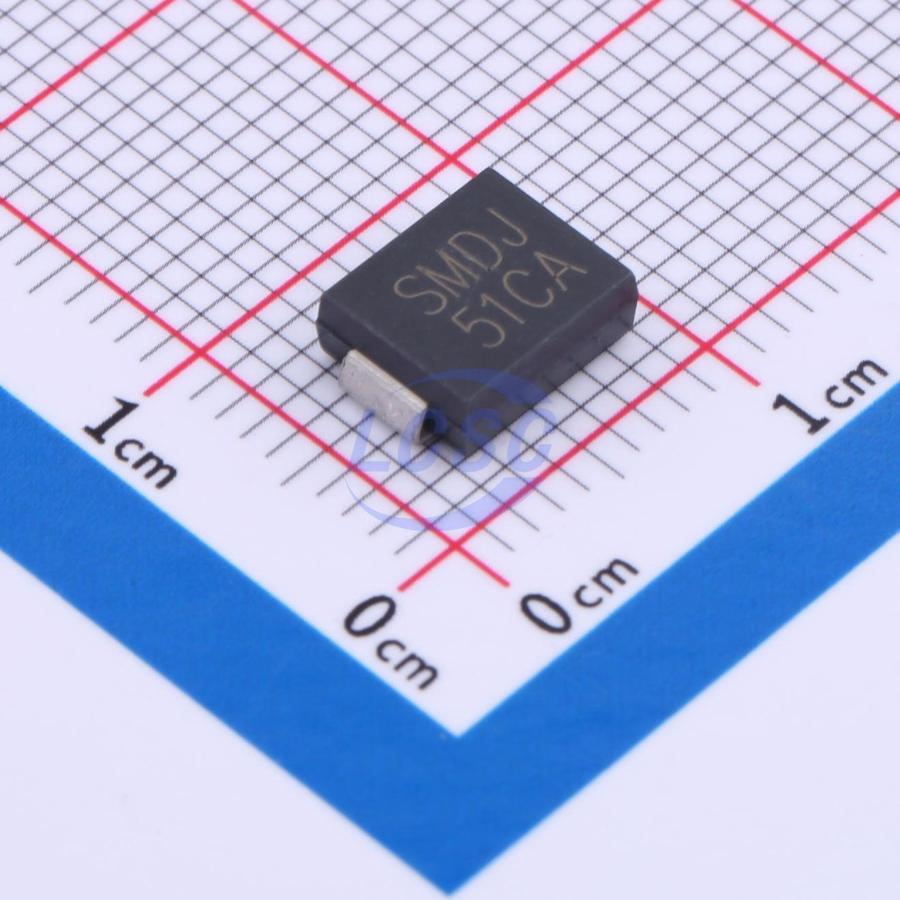

SMDJ51CA
82.4VC Clamp 36.41A@10/1000us Ipp TVS DIODE SMCG
SMCGROHS CompliantActive
TVS DIODE 51VWM 82.4VC SMCG
- Manufacturer
- JSCJ
- Manufacturer part #
- SMDJ51CA
- Store part #
- C3036237
- Package / case
- SMCG
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
720 in stock
#C3036237
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹44.35 | ₹221.75 |
| 50+ | ₹35.13 | ₹1,756.50 |
| 150+ | ₹31.17 | ₹4,675.50 |
| 500+ | ₹26.25 | ₹13,125.00 |
| 3,000+ | ₹24.05 | ₹72,150.00 |
| 6,000+ | ₹22.74 | ₹1,36,440.00 |
5 × ₹44.35
₹221.75
excl. GST
₹261.66 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SMDJ51CA
₹221.75 for 5 + GST
Specifications
- Clamping Voltage
- 82.4V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 36.41A@10/1000us
- Peak Pulse Power Dissipation (Ppp)
- 3kW@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 62.7V
- type
- TVS
- Reverse Leakage Current (Ir)
- 1uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 51V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.39 g
Overview
Applications
- Clamping Voltage
Key features
- 3000W VRWM 5.0V - 440V
- Glass passivated chip
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SMDJ48CA#C3036236JSCJ · SMCG | JSCJ | SMCG | 2,345 | ₹43.37 · 2,345 in stock | View |
 | SMDJ54CA(SMD)#C5356061JSCJ · SMCG | JSCJ | SMCG | 975 | ₹44.35 · 975 in stock | View |
