LittelfuseDatasheet (PDF)

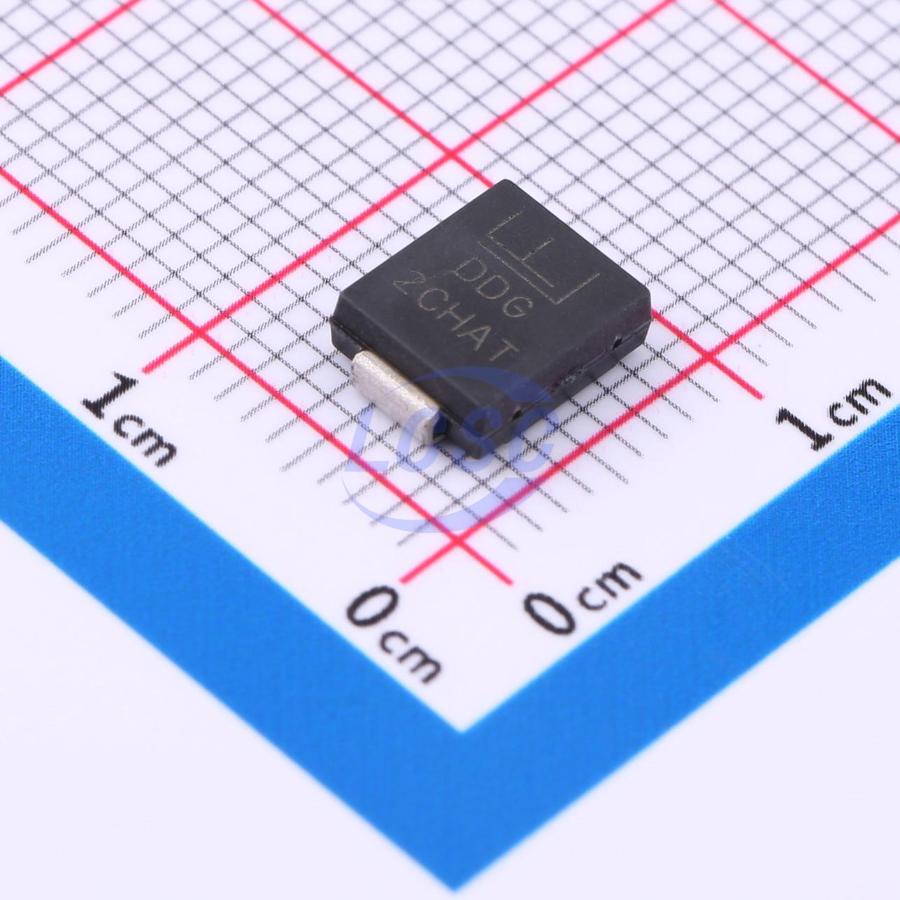

SMDJ6.0CA
10.3VC Clamp 291.3A Ipp TVS DIODE DO-214AB
DO-214ABROHS3 CompliantActive
TVS DIODE 6VWM 10.3VC DO-214AB
- Manufacturer
- Littelfuse
- Manufacturer part #
- SMDJ6.0CA
- Store part #
- C1975396
- Package / case
- DO-214AB
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
381 in stock
#C1975396
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹89.53 | ₹89.53 |
| 10+ | ₹72.58 | ₹725.80 |
| 30+ | ₹64.32 | ₹1,929.60 |
| 100+ | ₹55.86 | ₹5,586.00 |
| 500+ | ₹50.86 | ₹25,430.00 |
| 1,000+ | ₹48.25 | ₹48,250.00 |
1 × ₹89.53
₹89.53
excl. GST
₹105.65 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SMDJ6.0CA
₹89.53 for 1 + GST
Specifications
- Clamping Voltage
- 10.3V
- Operating Temperature
- -65℃~+150℃
- Peak Pulse Current (Ipp)
- 291.3A
- Peak Pulse Power Dissipation (Ppp)
- 3kW@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 6.67V
- type
- TVS
- Reverse Leakage Current (Ir)
- 800uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 6V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.36 g
Overview
The SMDJ series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.
Applications
- TVS components are ideal for the protection of I/O Interfaces, VCC bus and other vulnerable circuits used in telecom, computer, Industrial and consumer electronic applications.
Key features
- Low incremental surge resistance
- Typical |R less than 2μA when VBR min>12V
- High temperature to refow soldering guaranteed: 260°C/30sec
- VBA @T,1Π = VBA @25°C×(1 + αT ×(TJ - 25)) (αT:Temperature Coeffcient, typical value is 0.1% )
- UL Recognized compound meeting fammability rating V - 0
- Meet MSL level1, per J - STD - 020, LF maximun peak of 260°C
- Matte tin lead–free plated
- Halogen free and RoHS compliant
- Pb - free E3 means 2nd level interconnect is Pb - free and the terminal finish material is tin(Sn) (IPC/JEDEC J - STD609A.01)
- 3000W P PPM capability at 10/1000μs waveform, repetition rate (duty cycles):0.01%
- For surface mounted applications in order to optimize board space
- Low profile package
- Typical failure mode is short from over - specifed voltage o current
- Whisker test is conducted based on JEDEC JESD201A per its table 4a and 4c
- IEC - 61000 - 4 - 2 ESD 30kV(Air), 30kV (Contact)
- ESD protection of data lines in accordance with IEC 61000 - 4 - 2
- EFT protection of data lines in accordance with IEC 61000 - 4 - 4
- Built - in strain relief
- Glass passivated chip junction
- Fast response time: typically less than 1.0ps from 0V to BV min
- Excellent clamping capability
