HXY MOSFETDatasheet (PDF)

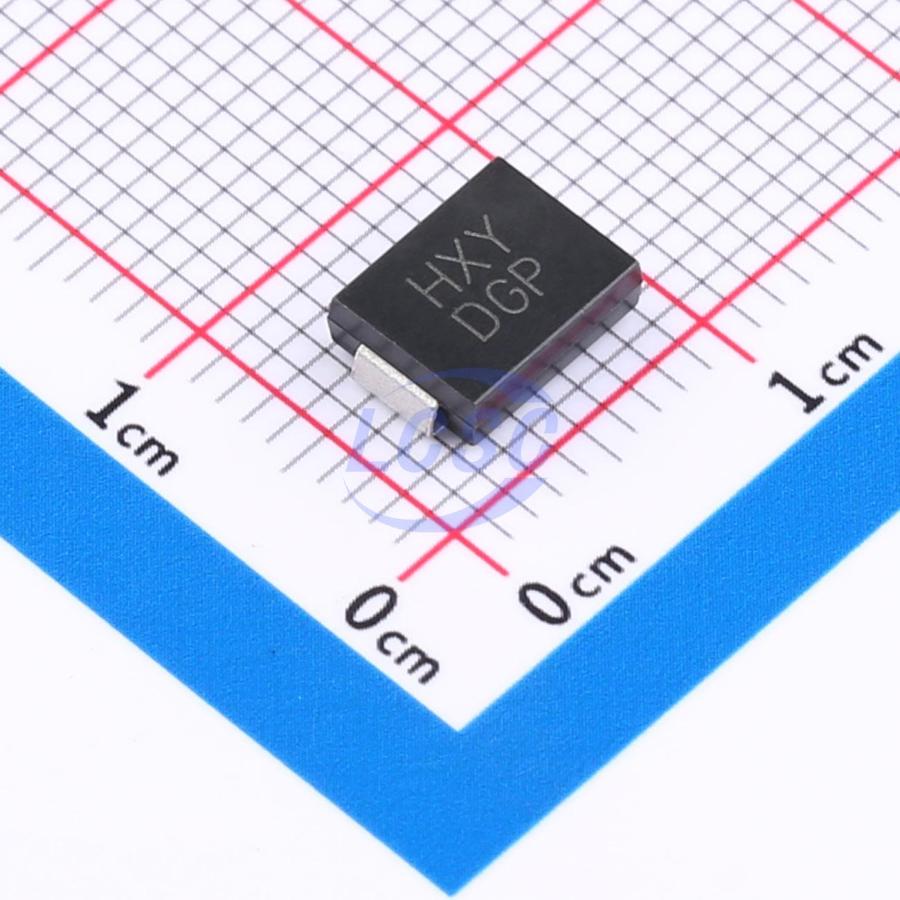

SMDJ70CA
113V 26.5A 3kW@10/1000us 86V Bidirectional 70V SMC TVS Diodes RoHS
SMCROHS CompliantActive
70VWM 113VC SMC
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- SMDJ70CA
- Store part #
- C49363602
- Package / case
- SMC
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
100 in stock
#C49363602
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹55.02 | ₹275.10 |
| 50+ | ₹45.37 | ₹2,268.50 |
| 150+ | ₹41.22 | ₹6,183.00 |
| 500+ | ₹36.06 | ₹18,030.00 |
| 3,000+ | ₹30.89 | ₹92,670.00 |
| 6,000+ | ₹29.50 | ₹1,77,000.00 |
5 × ₹55.02
₹275.10
excl. GST
₹324.62 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SMDJ70CA
₹275.10 for 5 + GST
Specifications
- Clamping Voltage
- 113V
- Operating Temperature
- -65℃~+150℃
- Peak Pulse Current (Ipp)
- 26.5A
- Peak Pulse Power Dissipation (Ppp)
- 3kW@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 86V
- type
- TVS
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 2uA
- Reverse Stand-Off Voltage (Vrwm)
- 70V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.328 g
Overview
Applications
- Input/Output Interfaces
- AC/DC Power Supply
- Low-frequency signal transmission lines (e.g., RS232, RS485, etc.)
Key features
- Surface mount application optimized for board space
- Low-profile package
- Built-in stress relief structure
- Glass passivated junction
- Low inductance
- Excellent clamping capability
- 3000W peak pulse power capability at 10/1000μs waveform, repetitive rate (duty cycle): 0.01%
- Fast response time
- Typical reverse leakage current < 1μA above 10V
- Plastic package meets UL 94V-0 flammability rating
- MSL Level 1 per J-STD-020
- Safety certification: UL
- Compliant with IEC61000-4-2, ESD protection: air discharge 30KV, contact discharge 30KV
