SMF05C.TCT-HXY

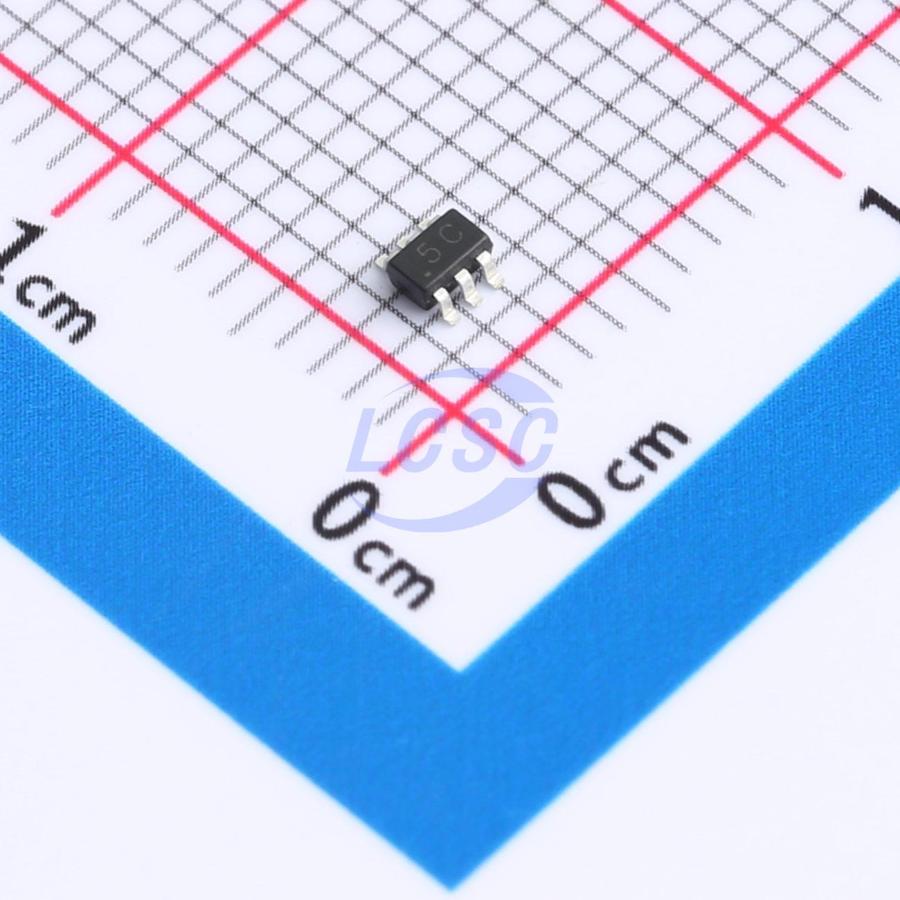

15VC Clamp 8A Ipp ESD DIODE SOT-363
ESD DIODE 5VWM 15VC SOT-363
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- SMF05C.TCT-HXY
- Store part #
- C42416643
- Package / case
- SOT-363
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
75 in stock
#C42416643
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹22.98 | ₹114.90 |
| 50+ | ₹18.20 | ₹910.00 |
| 150+ | ₹16.15 | ₹2,422.50 |
| 500+ | ₹13.60 | ₹6,800.00 |
| 3,000+ | ₹12.46 | ₹37,380.00 |
| 6,000+ | ₹11.79 | ₹70,740.00 |
5 × ₹22.98
₹114.90
excl. GST
₹135.58 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SMF05C.TCT-HXY
₹114.90 for 5 + GST
Specifications
- Clamping Voltage
- 15V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 8A
- Peak Pulse Power Dissipation (Ppp)
- 100W
- Voltage - Breakdown
- 6.2V
- Number of Channels
- 5
- type
- ESD
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.022 g
Overview
SMF05C.TCT is a five-channel ultra-low capacitance rail-clamp ESD protection diode array. Each channel consists of a pair of ESD diodes that steer positive or negative ESD current to the positive or negative supply rail. A Zener diode is integrated between the positive and negative supply rails of the array. In a typical application, the negative supply rail pin (designated as GND) is connected to system ground. Positive ESD current is steered to ground through one ESD diode and the Zener diode, and the positive ESD voltage is clamped to the Zener voltage.
Key features
- Five-line unidirectional ESD protection
- IEC 61000-4-2 Level 4 ESD protection
- Low reverse standoff voltage: 5V
- Low reverse clamping voltage
- Low leakage current
- Fast response time
- Compact package saves PCB space
- RoHS compliant
- SOT-363 package
Alternatives
Similar parts — check the datasheet before substituting.
