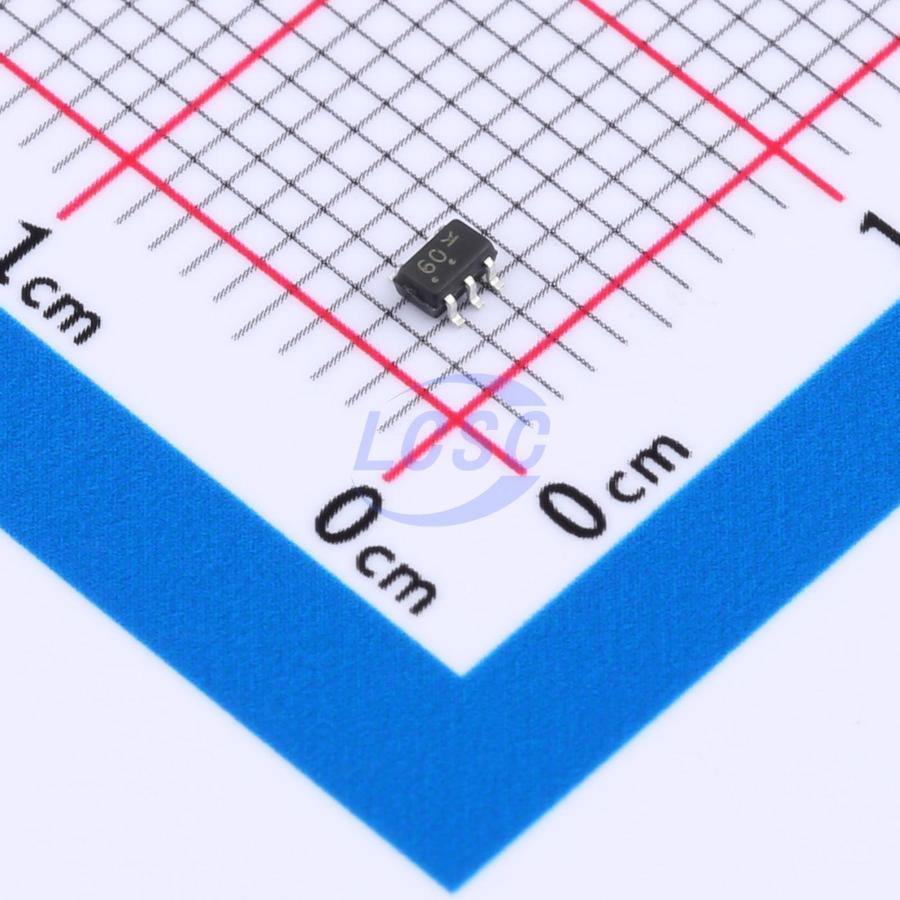

SMF05T1G
12.5VC Clamp 12A@8/20us Ipp ESD DIODE SC-88A-5
ESD DIODE 5VWM 12.5VC SC-88A-5
- Manufacturer
- onsemi
- Manufacturer part #
- SMF05T1G
- Store part #
- C894328
- Package / case
- SC-88A-5
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
212 in stock
#C894328
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹66.93 | ₹66.93 |
| 10+ | ₹54.76 | ₹547.60 |
| 30+ | ₹49.33 | ₹1,479.90 |
| 100+ | ₹42.81 | ₹4,281.00 |
| 500+ | ₹32.82 | ₹16,410.00 |
| 1,000+ | ₹31.08 | ₹31,080.00 |
1 × ₹66.93
₹66.93
excl. GST
₹78.98 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SMF05T1G
₹66.93 for 1 + GST
Specifications
- Clamping Voltage
- 12.5V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 12A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 200W
- Number of Channels
- Four channels
- Voltage - Breakdown
- 6V
- type
- ESD
- Reverse Leakage Current (Ir)
- 5uA
- Polarity
- Unidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.028 g
Overview
This quad monolithic silicon overvoltage suppressor is designed for applications requiring transient voltage protection capability. It is intended for use in ESD sensitive equipment such as computers, printers, cell phones, medical equipment, and other applications. Its quad junction common anode design protects four separate lines using only one package. These devices are ideal for situations where board space is at a premium.
Applications
- Computers
- Printers
- Cell Phones
- Medical Equipment
Key features
- SC−88A Package Allows Four Separate Unidirectional Configurations
- Low Leakage <5 μA @ 5 V
- Breakdown Voltage: 6.1 V - 7.2 V @ 1 mA
- Low Capacitance (90 pF TYP)
- Provides Protection for IEC61000−4−2
- Pb−Free Packages are Available
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPE05H4C5#C907851TECH PUBLIC · SC-70-5 | TECH PUBLIC | SC-70-5 | 2,530 | ₹9.17 · 2,530 in stock | View |
| SZSMF05T2G#C894739onsemi · SOT-353 | onsemi | SOT-353 | On request | ₹14.63 · 0 in stock | View | |
