TECH PUBLICDatasheet (PDF)

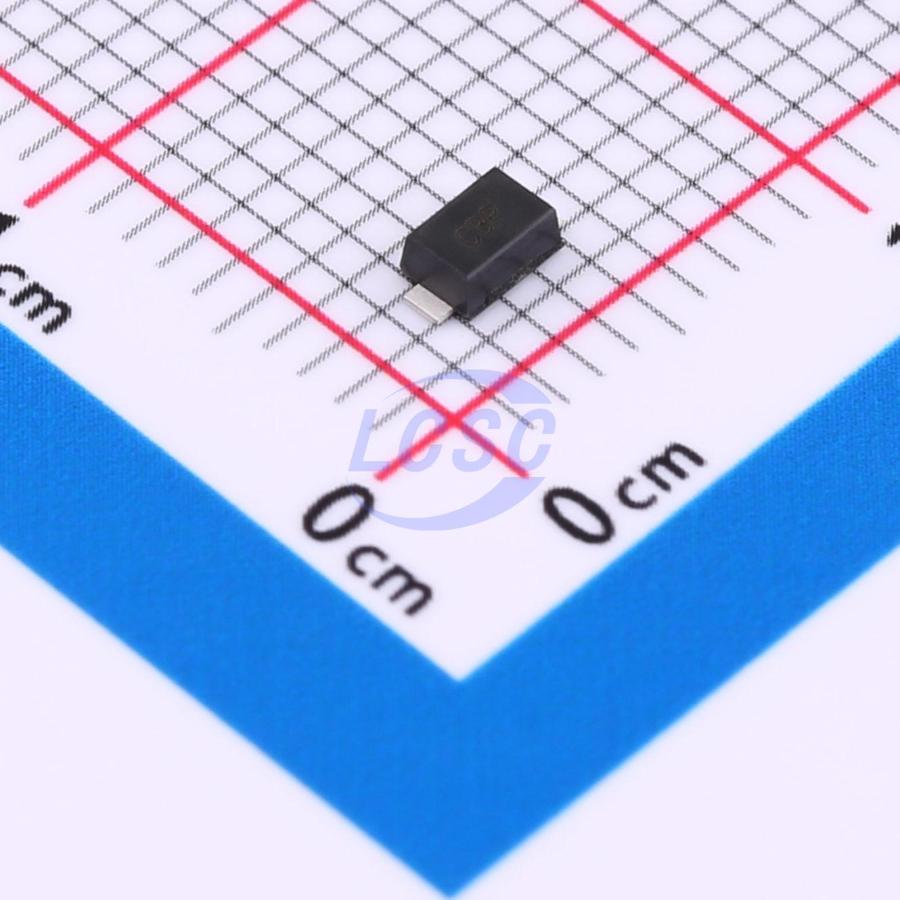

SMF16CA
26VC Clamp 7.7A@10/1000us Ipp TVS DIODE SOD-123FL
SOD-123FLRoHSActive
TVS DIODE 16VWM 26VC SOD-123FL
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- SMF16CA
- Store part #
- C42440480
- Package / case
- SOD-123FL
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,820 in stock
#C42440480
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹1.91 | ₹38.20 |
| 200+ | ₹1.87 | ₹374.00 |
| 600+ | ₹1.84 | ₹1,104.00 |
| 3,000+ | ₹1.81 | ₹5,430.00 |
20 × ₹1.91
₹38.20
excl. GST
₹45.08 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SMF16CA
₹38.20 for 20 + GST
Specifications
- Clamping Voltage
- 26V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 7.7A@10/1000us
- Peak Pulse Power Dissipation (Ppp)
- 200W@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 19.7V
- type
- TVS
- Reverse Leakage Current (Ir)
- 1uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 16V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.043 g
Overview
Applications
- Personal digital assistants (PDA)
- Cellular handsets & Accessories
- Handhelds and notebooks
- Portable instrumentation
Key features
- Peak power disspation: 200W@10×1000 us Pluse
- Low incremental surge resistance
- Excellent clamping capability
- Fast response time
- Low leakage current
- Halogen free and RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SJD12C16L01#C54780902TECH PUBLIC · SOD-123FL | TECH PUBLIC | SOD-123FL | 2,960 | ₹3.98 · 2,960 in stock | View |
 | TPSMF16CA#C42440515TECH PUBLIC · SOD-123FL | TECH PUBLIC | SOD-123FL | 2,060 | ₹4.13 · 2,060 in stock | View |
 | SMF15CA#C42440479TECH PUBLIC · SOD-123FL | TECH PUBLIC | SOD-123FL | 6,520 | ₹3.19 · 6,520 in stock | View |
 | SMF17CA#C42440481TECH PUBLIC · SOD-123FL | TECH PUBLIC | SOD-123FL | 2,920 | ₹3.12 · 2,920 in stock | View |
 | TPSMF15CA#C42440514TECH PUBLIC · SOD-123FL | TECH PUBLIC | SOD-123FL | 3,140 | ₹4.02 · 3,140 in stock | View |
