TECH PUBLICDatasheet (PDF)

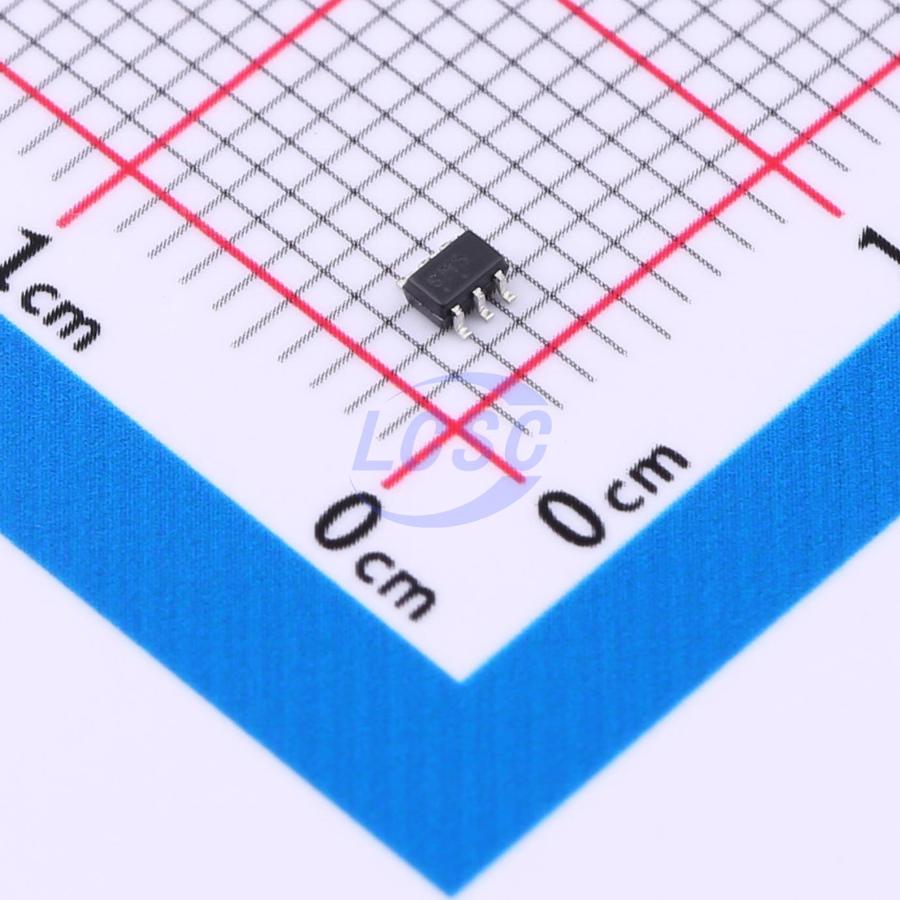

SMF24CT1G-TP
60VC Clamp 3A Ipp SOT-363
SOT-363RoHSActive
TVS DIODE 24VWM 60VC SOT-363
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- SMF24CT1G-TP
- Store part #
- C42370538
- Package / case
- SOT-363
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,925 in stock
#C42370538
Stock & price checked 14 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹17.86 | ₹89.30 |
| 50+ | ₹15.81 | ₹790.50 |
| 150+ | ₹14.92 | ₹2,238.00 |
| 500+ | ₹13.83 | ₹6,915.00 |
| 2,500+ | ₹12.45 | ₹31,125.00 |
| 5,000+ | ₹12.16 | ₹60,800.00 |
5 × ₹17.86
₹89.30
excl. GST
₹105.37 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SMF24CT1G-TP
₹89.30 for 5 + GST
Specifications
- Clamping Voltage
- 60V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 3A
- Peak Pulse Power Dissipation (Ppp)
- 180W
- Number of Channels
- 5
- Voltage - Breakdown
- 26.7V
- type
- ESD
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 24V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.031 g
Overview
Applications
- Mobile phones and accessories
- Laptops and handheld devices
- Portable instruments
- Industrial control
Key features
- Low operating voltage: 24V
- Ultra-low capacitance: 30pF
- Ultra-low leakage: nA level
- Low clamping voltage
- IEC 61000-4-2 (ESD) immunity test — Air discharge: ±15kV, Contact discharge: ±8kV
- IEC 61000-4-4 (EFT): 40A (5/50ns)
- IEC 61000-4-5 (Lightning): 3A (8/20μs)
- Lead-free devices
- Response time typically < 1 ns
