TECH PUBLICDatasheet (PDF)

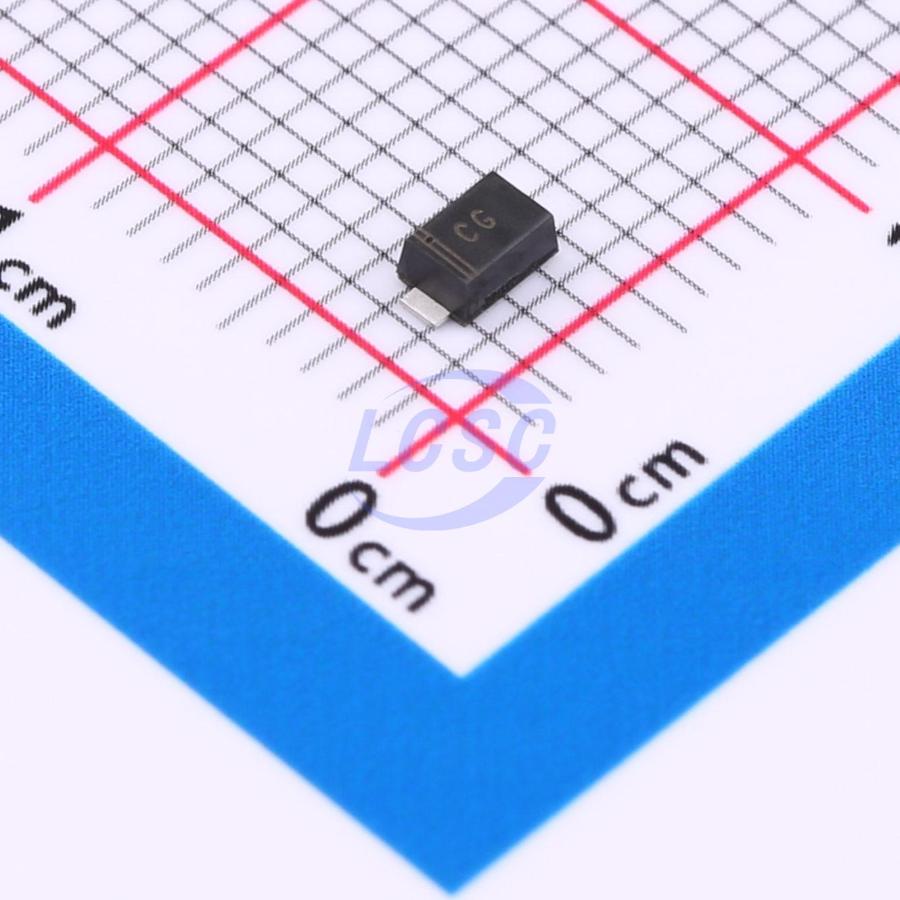

SMF28A
45.4VC Clamp 4.4A Ipp TVS DIODE SOD-123FL
SOD-123FLRoHSActive
TVS DIODE 28VWM 45.4VC SOD-123FL
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- SMF28A
- Store part #
- C42440500
- Package / case
- SOD-123FL
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,260 in stock
#C42440500
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹3.37 | ₹67.40 |
| 200+ | ₹2.66 | ₹532.00 |
| 600+ | ₹2.26 | ₹1,356.00 |
| 3,000+ | ₹2.02 | ₹6,060.00 |
| 9,000+ | ₹1.83 | ₹16,470.00 |
| 21,000+ | ₹1.72 | ₹36,120.00 |
20 × ₹3.37
₹67.40
excl. GST
₹79.53 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SMF28A
₹67.40 for 20 + GST
Specifications
- Clamping Voltage
- 45.4V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 4.4A@10/1000us
- Peak Pulse Power Dissipation (Ppp)
- 200W@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 34.4V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 28V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.042 g
Overview
Applications
- Personal digital assistants (PDA)
- Cellular handsets & Accessories
- Handhelds and notebooks
- Portable instrumentation
Key features
- Peak power disspation: 200W@10×1000 us Pluse
- Low incremental surge resistance
- Excellent clamping capability
- Fast response time
- Low leakage current
- Halogen free and RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPSMF28A#C42440535TECH PUBLIC · SOD-123FL | TECH PUBLIC | SOD-123FL | 1,880 | ₹4.11 · 1,880 in stock | View |
 | SJD12A28L01#C54780867TECH PUBLIC · SOD-123FL | TECH PUBLIC | SOD-123FL | 3,000 | ₹3.98 · 3,000 in stock | View |
 | SMF30A#C42370542TECH PUBLIC · SOD-123FL | TECH PUBLIC | SOD-123FL | 1,260 | ₹3.02 · 1,260 in stock | View |
 | TPSMF30A#C42370588TECH PUBLIC · SOD-123FL | TECH PUBLIC | SOD-123FL | 2,580 | ₹3.64 · 2,580 in stock | View |
 | SJD12A30L01#C54780868TECH PUBLIC · SOD-123FL | TECH PUBLIC | SOD-123FL | 3,000 | ₹3.98 · 3,000 in stock | View |
