VISHAYDatasheet (PDF)

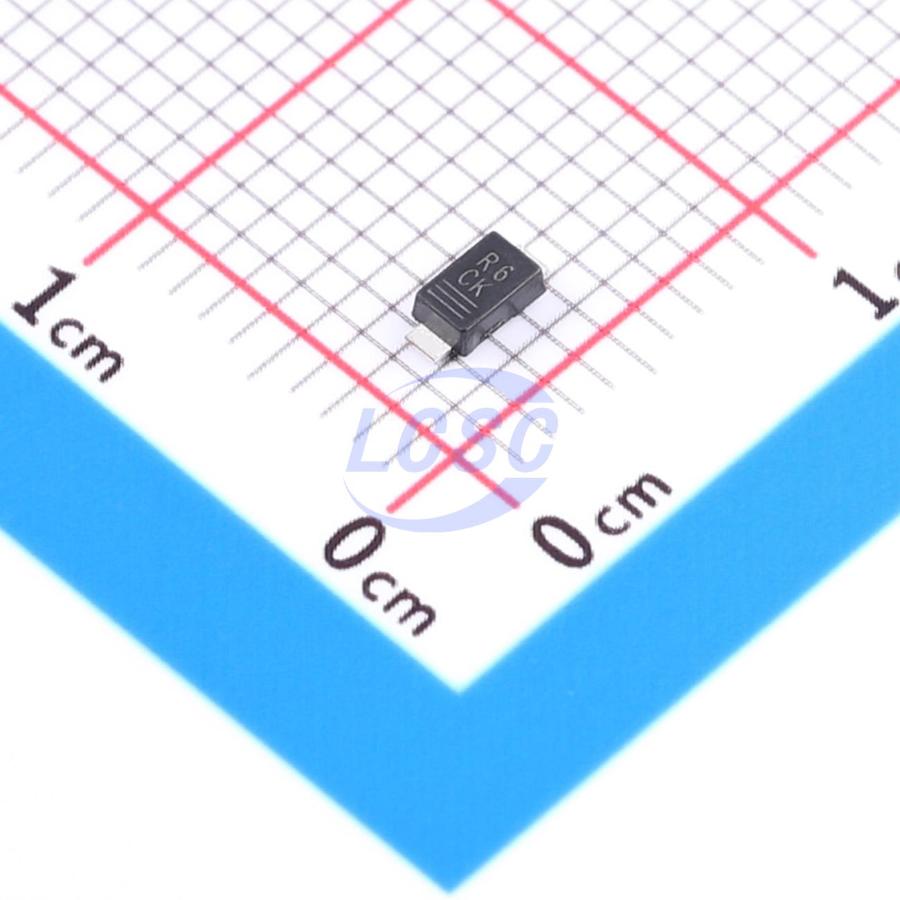

SMF30A-HE3-08
48.4VC Clamp 4.1A@10/1000us Ipp TVS DIODE DO-219AB(SMF)
DO-219AB(SMF)ROHS3 CompliantActive
TVS DIODE 30VWM 48.4VC DO-219AB(SMF)
- Manufacturer
- VISHAY
- Manufacturer part #
- SMF30A-HE3-08
- Store part #
- C3699875
- Package / case
- DO-219AB(SMF)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C3699875
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹47.79 | ₹47.79 |
| 10+ | ₹46.77 | ₹467.70 |
| 30+ | ₹45.95 | ₹1,378.50 |
| 100+ | ₹45.14 | ₹4,514.00 |
1 × ₹47.79
₹47.79
excl. GST
₹56.39 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SMF30A-HE3-08
₹47.79 for 1 + GST
Specifications
- Clamping Voltage
- 48.4V
- Operating Temperature
- -65℃~+175℃
- Peak Pulse Current (Ipp)
- 4.1A@10/1000us
- Peak Pulse Power Dissipation (Ppp)
- 200W@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 36.9V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 100nA
- Reverse Stand-Off Voltage (Vrwm)
- 30V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.041 g
Overview
Key features
- 200 W peak pulse power capability with a Available 10/1000 μs waveform, repetition rate (duty cycle): 0.01 %
- Low profile package
- Wave and reflow solderable e3
- ESD immunity acc. IEC 61000-4-2 RoHS ± 30 kV contact discharge, ± 30 kV air discharge
- ESD capability according to AEC-Q101: human body model: class H3B: >8 kV
- Low incremental surge resistance, excellent clamping capability
- “Low Noise” technology - very fast response time
- AEC-Q101 qualified available
- Compatible to SOD-123W package case outline or SOD-123F and SOD-123FL
- Material categorization: for definitions of compliance please see www.vishay.com/doc?99912
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SMF30A#C20883256OTW · SMF(SOD-123F) | OTW | SMF(SOD-123F) | 50 | ₹2.18 · 50 in stock | View |
| SMF30A-M3-18#C3705381VISHAY · DO-219AB(SMF) | VISHAY | DO-219AB(SMF) | On request | ₹14.70 · 0 in stock | View | |
| SMF30A-E3-18#C3707421VISHAY · DO-219AB(SMF) | VISHAY | DO-219AB(SMF) | On request | ₹13.26 · 0 in stock | View | |
| SMF28A-M3-18#C3699279VISHAY · DO-219AB(SMF) | VISHAY | DO-219AB(SMF) | On request | ₹14.70 · 0 in stock | View | |
| SMF28A-HM3-18#C3713763VISHAY · DO-219AB(SMF) | VISHAY | DO-219AB(SMF) | On request | ₹15.66 · 0 in stock | View | |
