DIODESDatasheet (PDF)

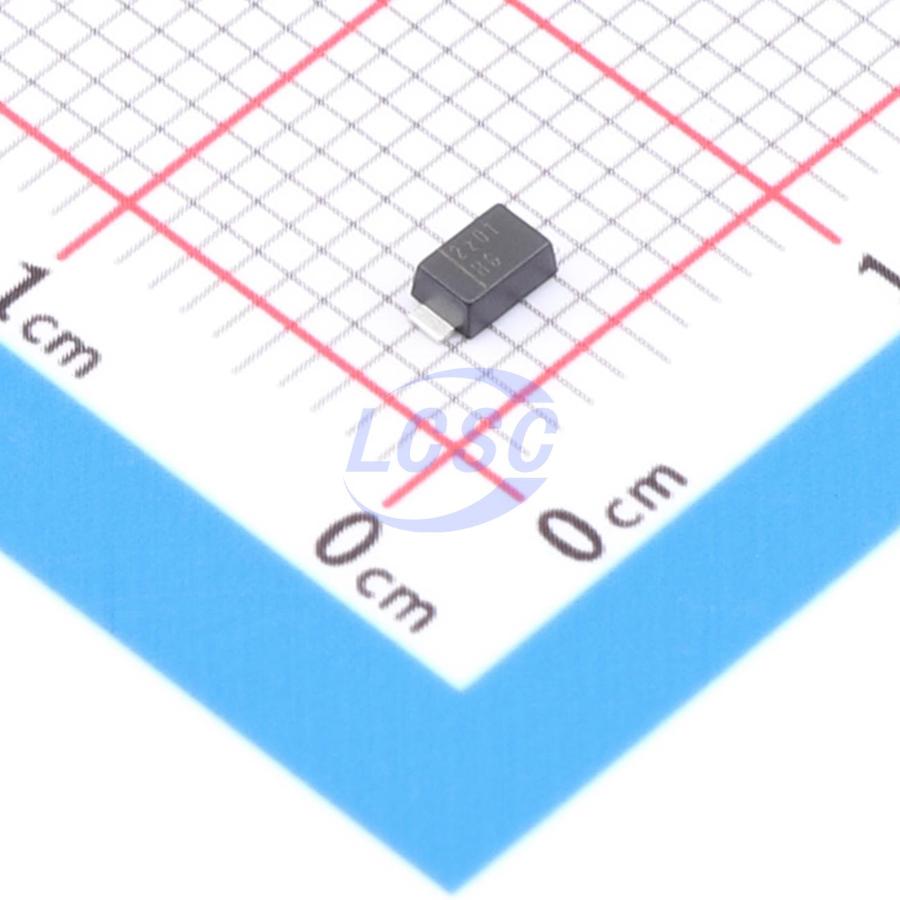

SMF4L6.0A-7
10.3V 400W@10/1000us 7.37V Unidirectional 6V DO-219AA TVS Diodes RoHS
DO-219AAROHS3 CompliantActive
- Manufacturer
- DIODES
- Manufacturer part #
- SMF4L6.0A-7
- Store part #
- C5924005
- Package / case
- DO-219AA
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
69 in stock
#C5924005
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹67.06 | ₹67.06 |
| 10+ | ₹65.99 | ₹659.90 |
| 30+ | ₹65.57 | ₹1,967.10 |
| 100+ | ₹64.92 | ₹6,492.00 |
1 × ₹67.06
₹67.06
excl. GST
₹79.13 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SMF4L6.0A-7
₹67.06 for 1 + GST
Specifications
- Clamping Voltage
- 10.3V
- Operating Temperature
- -55℃~+175℃
- Peak Pulse Power Dissipation (Ppp)
- 400W@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 7.37V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 800uA
- Reverse Stand-Off Voltage (Vrwm)
- 6V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.113 g
Overview
This new generation TVS is designed for transient overvoltage protection. The combination of small size and high ESD surge capability makes it ideal for use in power management and automotive applications (battery contacts).
Applications
- Power management
- Automotive applications (Battery contacts)
Key features
- 400W Peak Pulse Power Dissipation (10μs×1000μs Waveform)
- 5V to 200V Standoff Voltages
- Provides ESD Protection per IEC61000 - 4 - 2 Standard: Air ±30kV, Contact ±30kV
- Excellent Clamping Capability
- Fast Response Time: Typically Less Than 1.0ns for Uni - Direction, Less Than 5.0ns for Bi - Direction, Form 0 Volts to BV Min
- Lead - Free Finish; RoHS Compliant
- Halogen and Antimony Free. “Green” Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SM4F6.0AHE3-TP#C28981458MCC · SOD-123FL | MCC | SOD-123FL | 215 | ₹20.52 · 215 in stock | View |
 | S4MF6.0A#C5161274ZHIDE · SOD-123FL | ZHIDE | SOD-123FL | 240 | ₹7.92 · 240 in stock | View |
 | TP4LSMF6.0A#C42436610TECH PUBLIC · SOD-123FL | TECH PUBLIC | SOD-123FL | 3,650 | ₹11.84 · 3,650 in stock | View |
 | TPTVS6V0S1UR#C42436643TECH PUBLIC · SOD-123FL | TECH PUBLIC | SOD-123FL | 10,470 | ₹7.53 · 10,470 in stock | View |
 | SM4F6.0A#C52145948TECH PUBLIC · SOD-123FL | TECH PUBLIC | SOD-123FL | 2,920 | ₹7.96 · 2,920 in stock | View |
