VISHAYDatasheet (PDF)
SMF5V0A-M3-08

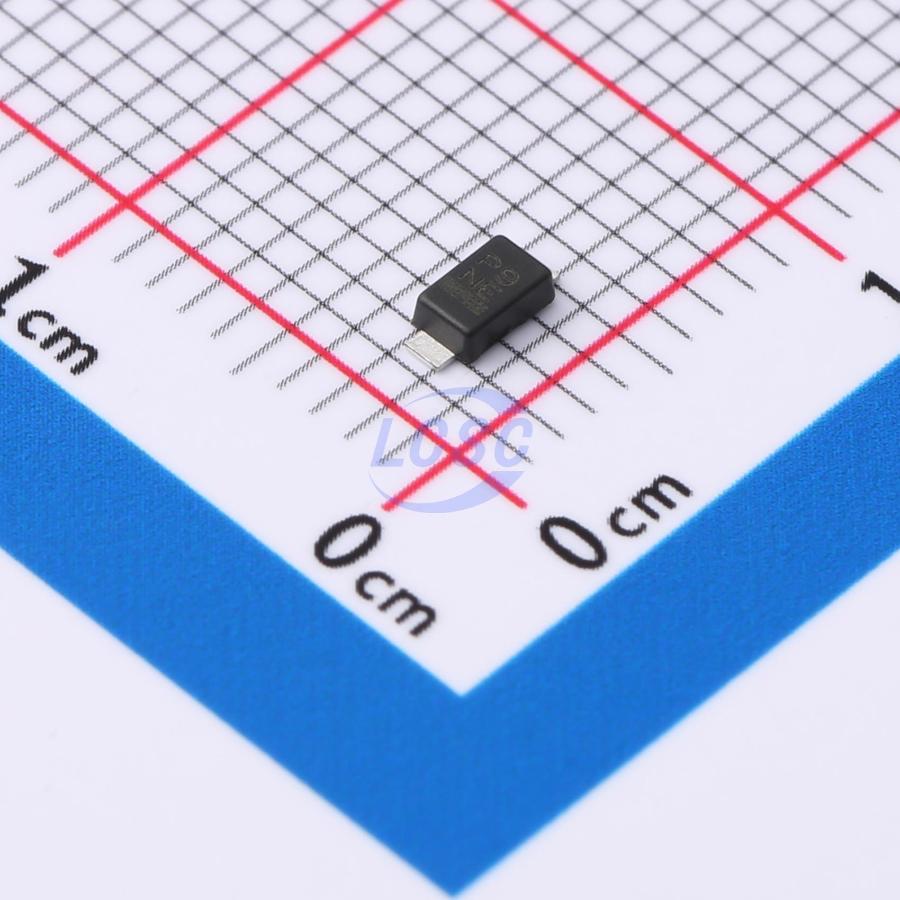

9.2VC Clamp 21.7A@10/1000us Ipp ESD DIODE SMF(DO-219AB)
SMF(DO-219AB)ROHS3 CompliantActive
ESD DIODE 5VWM 9.2VC SMF(DO-219AB)
- Manufacturer
- VISHAY
- Manufacturer part #
- SMF5V0A-M3-08
- Store part #
- C1856665
- Package / case
- SMF(DO-219AB)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,195 in stock
#C1856665
Stock & price checked 13 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹28.10 | ₹140.50 |
| 50+ | ₹22.53 | ₹1,126.50 |
| 150+ | ₹20.14 | ₹3,021.00 |
| 500+ | ₹17.16 | ₹8,580.00 |
| 3,000+ | ₹15.84 | ₹47,520.00 |
| 6,000+ | ₹15.04 | ₹90,240.00 |
5 × ₹28.10
₹140.50
excl. GST
₹165.79 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SMF5V0A-M3-08
₹140.50 for 5 + GST
Specifications
- Clamping Voltage
- 9.2V
- Operating Temperature
- -65℃~+175℃
- Peak Pulse Current (Ipp)
- 21.7A@10/1000us
- Peak Pulse Power Dissipation (Ppp)
- 200W@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 7.1V
- type
- ESD
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 5uA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.041 g
Overview
Key features
- 200 W peak pulse power capability with a Available 10/1000 μs waveform, repetition rate (duty cycle): 0.01 %
- Low profile package
- Wave and reflow solderable e3
- ESD immunity acc. IEC 61000 - 4 - 2 RoHS ± 30 kV contact discharge, ± 30 kV air discharge
- ESD capability according to AEC - Q101: Available human body model: class H3B: > 8 kV
- Low incremental surge resistance, excellent clamping capability
- “Low Noise” technology - very fast response time
- AEC - Q101 qualified available
- Compatible to SOD - 123W package case outline or SOD - 123F and SOD - 123FL
