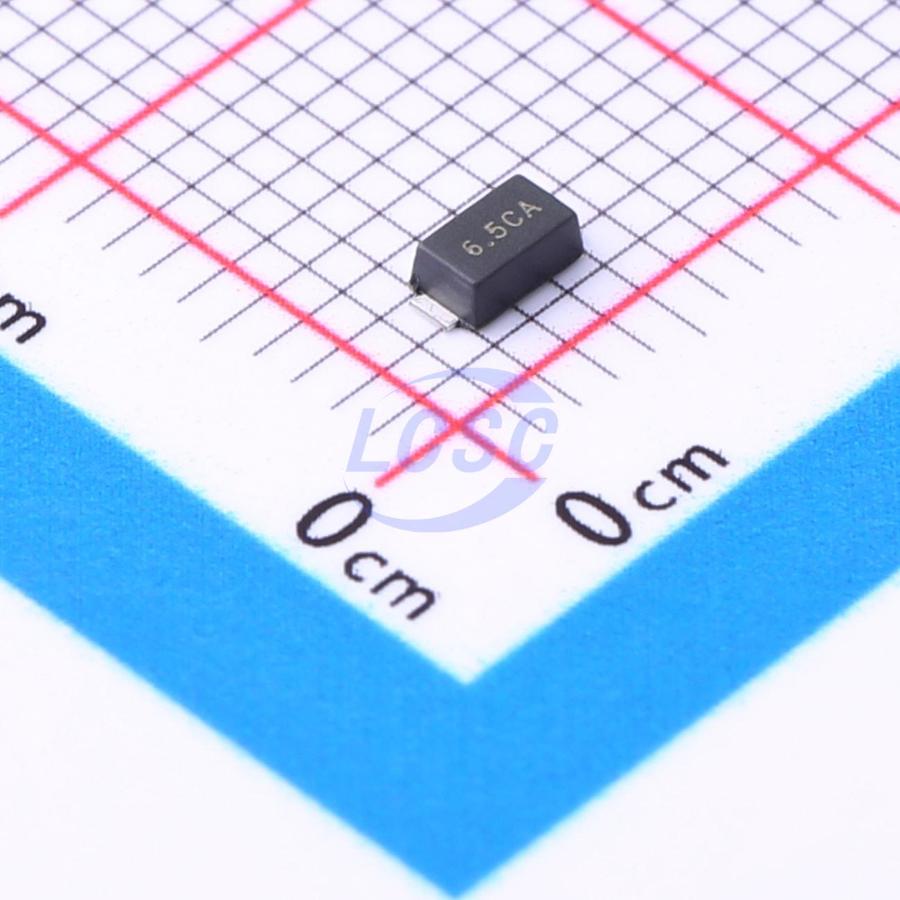

SMF6.5CA
11.2VC Clamp 17.9A Ipp TVS DIODE SOD-123FL
TVS DIODE 6.5VWM 11.2VC SOD-123FL
- Manufacturer
- Yint
- Manufacturer part #
- SMF6.5CA
- Store part #
- C2912791
- Package / case
- SOD-123FL
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C2912791
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.76 | ₹95.20 |
| 200+ | ₹3.78 | ₹756.00 |
| 600+ | ₹3.31 | ₹1,986.00 |
| 3,000+ | ₹2.71 | ₹8,130.00 |
| 9,000+ | ₹2.42 | ₹21,780.00 |
| 21,000+ | ₹2.28 | ₹47,880.00 |
20 × ₹4.76
₹95.20
excl. GST
₹112.34 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SMF6.5CA
₹95.20 for 20 + GST
Specifications
- Clamping Voltage
- 11.2V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 17.9A
- Peak Pulse Power Dissipation (Ppp)
- 200W@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 7.22V
- type
- TVS
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 250uA
- Reverse Stand-Off Voltage (Vrwm)
- 6.5V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Sold out at source
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.039 g
Overview
The SMF series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events. They have excellent clamping capability, high surge capability, low zener impedance and fast response time. The SMF series is ideally suited for use in communication systems, automotive, numerical controls, process controls, medical equipment, business machines, power supplies and many other industrial/consumer Applications.
Applications
- Use in sensitive electronics protection against voltage transients induced by inductive load switching and lighting on ICs, MOSFET, signal lines of sensor units for consumer, computer, industrial, automotive, and telecommunication
Key features
- Case: SOD-123FL
- Low profile maximum height of 1.1 mm
- For surface mounted applications in order to optimize board space
- Polarity: Color band denoted positive end (cathode) except Bidirectional
- Typical failure mode is short from over-specified voltage or current
- Fast response time: typically less than 1.0ps from 0 Volts to VB min
