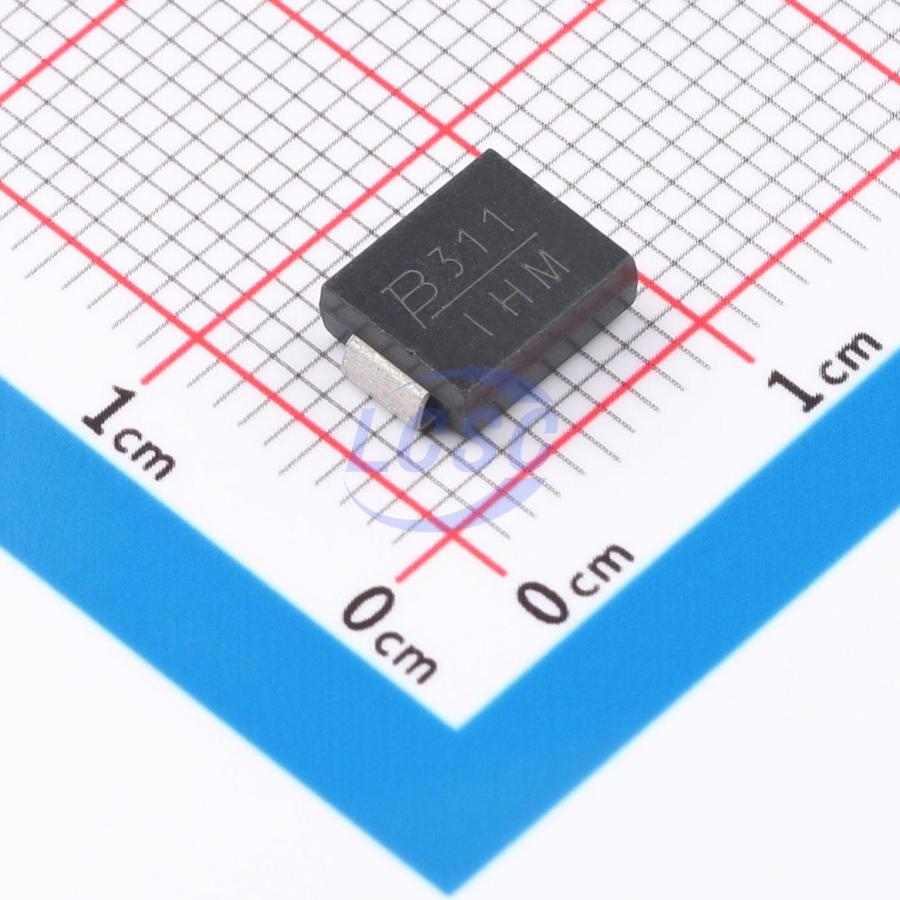

SMLJ150CA
243VC Clamp TVS DIODE SMC(DO-214AB)
- Manufacturer
- BOURNS
- Manufacturer part #
- SMLJ150CA
- Store part #
- C5924268
- Package / case
- SMC(DO-214AB)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
97 in stock
#C5924268
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹413.54 | ₹413.54 |
| 10+ | ₹408.38 | ₹4,083.80 |
| 30+ | ₹404.73 | ₹12,141.90 |
| 100+ | ₹401.29 | ₹40,129.00 |
1 × ₹413.54
₹413.54
excl. GST
₹487.98 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SMLJ150CA
₹413.54 for 1 + GST
Specifications
- Clamping Voltage
- 243V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 61.5A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 3kW
- Number of Channels
- 1
- Voltage - Breakdown
- 167V
- type
- TVS
- Reverse Leakage Current (Ir)
- 2uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 150V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.12 g
Overview
Bourns offers Transient Voltage Suppressor Diodes for surge and ESD protection applications, in compact chip package DO - 214AB(SMC) size format. The Transient Voltage Suppressor series offers a choice of Working Peak Reverse Voltage from 5 V up to 170 V and Breakdown Voltage up to 200 V. Typical fast response times are less than 1.0 ps for unidirectional devices and less than 5.0 ps for bidirectional devices from 0 to Minimum Breakdown Voltage. Bourns Chip Diodes conform to JEDEC standards, are easy to handle with standard pick and place equipment and the flat configuration minimizes roll away.
Applications
- IEC 61000 - 4 - 2 ESD (Min. Level 4)
- IEC 61000 - 4 - 4 EFT
- IEC 61000 - 4 - 5 Surge
Key features
- RoHS compliant
- Surface Mount SMC package
- Standoff Voltage: 5.0 to 170 volts
- Power Dissipation: 3000 watts
- Typical temperature coefficient: ΔV̇BR = 0.1% × VBR ≥ 25% × ΔT
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SMDJ150CA#C2990271Liown · SMC(DO-214AB) | Liown | SMC(DO-214AB) | 2,030 | ₹24.71 · 2,030 in stock | View |
 | SMDJ150CA/TR13#C777580Brightking · SMC(DO-214AB) | Brightking | SMC(DO-214AB) | 5 | ₹17.19 · 5 in stock | View |
 | SMDJ150CA#C3007558SUNMATE Elec · SMC(DO-214AB) | SUNMATE Elec | SMC(DO-214AB) | 350 | ₹36.71 · 350 in stock | View |
 | SMDJ150CA#C169446Jingdao Microelectronics · SMC | Jingdao Microelectronics | SMC | 2,660 | ₹29.24 · 2,660 in stock | View |
 | SMDJ150CA#C4154793TWGMC · SMC | TWGMC | SMC | 1,300 | ₹14.01 · 1,300 in stock | View |
