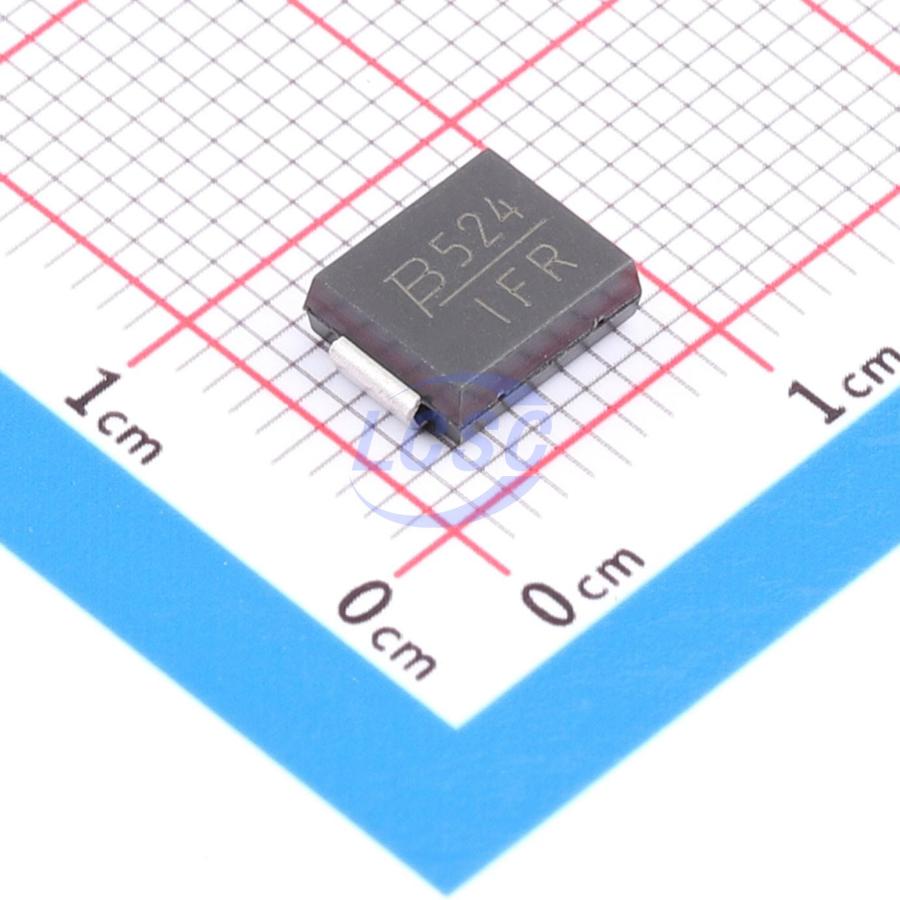

SMLJ40CA
64.5VC Clamp 46.4A Ipp TVS DIODE SMC(DO-214AB)
- Manufacturer
- BOURNS
- Manufacturer part #
- SMLJ40CA
- Store part #
- C3702589
- Package / case
- SMC(DO-214AB)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
50 in stock
#C3702589
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹279.05 | ₹279.05 |
| 10+ | ₹272.76 | ₹2,727.60 |
| 30+ | ₹268.42 | ₹8,052.60 |
| 100+ | ₹264.31 | ₹26,431.00 |
1 × ₹279.05
₹279.05
excl. GST
₹329.28 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SMLJ40CA
₹279.05 for 1 + GST
Specifications
- Clamping Voltage
- 64.5V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 46.4A
- Peak Pulse Power Dissipation (Ppp)
- 3kW
- Number of Channels
- 1
- Voltage - Breakdown
- 44.4V
- type
- TVS
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 2uA
- Reverse Stand-Off Voltage (Vrwm)
- 40V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.382 g
Overview
Bourns offers Transient Voltage Suppressor Diodes for surge and ESD protection applications, in compact chip package DO - 214AB(SMC) size format. The Transient Voltage Suppressor series offers a choice of Working Peak Reverse Voltage from 5 V up to 170 V and Breakdown Voltage up to 200 V. Typical fast response times are less than 1.0 ps for unidirectional devices and less than 5.0 ps for bidirectional devices from 0 to Minimum Breakdown Voltage. Bourns Chip Diodes conform to JEDEC standards, are easy to handle with standard pick and place equipment and the flat configuration minimizes roll away.
Applications
- IEC 61000 - 4 - 2 ESD (Min. Level 4)
- IEC 61000 - 4 - 4 EFT
- IEC 61000 - 4 - 5 Surge
Key features
- RoHS compliant
- Surface Mount SMC package
- Standoff Voltage: 5.0 to 170 volts
- Power Dissipation: 3000 watts
- Typical temperature coefficient: ΔV̇BR = 0.1% × VBR ≥ 25% × ΔT
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SMDJ40CA#C2842374BORN · SMC(DO-214AB) | BORN | SMC(DO-214AB) | 9,780 | ₹35.89 · 9,780 in stock | View |
 | SMDJ40CA#C52204462GOODWORK · SMC | GOODWORK | SMC | 175 | ₹42.67 · 175 in stock | View |
 | SMDJ40CA#C5267381JKSEMI · SMC(DO214AB) | JKSEMI | SMC(DO214AB) | 2,295 | ₹17.05 · 2,295 in stock | View |
 | SMDJ40CA#C39831896RUILON · DO-214AB(SMC) | RUILON | DO-214AB(SMC) | 279 | ₹82.98 · 279 in stock | View |
| TPSMD40CA#C1977388Littelfuse · DO-214AB(SMCJ) | Littelfuse | DO-214AB(SMCJ) | 2,996 | ₹90.70 · 2,996 in stock | View | |
