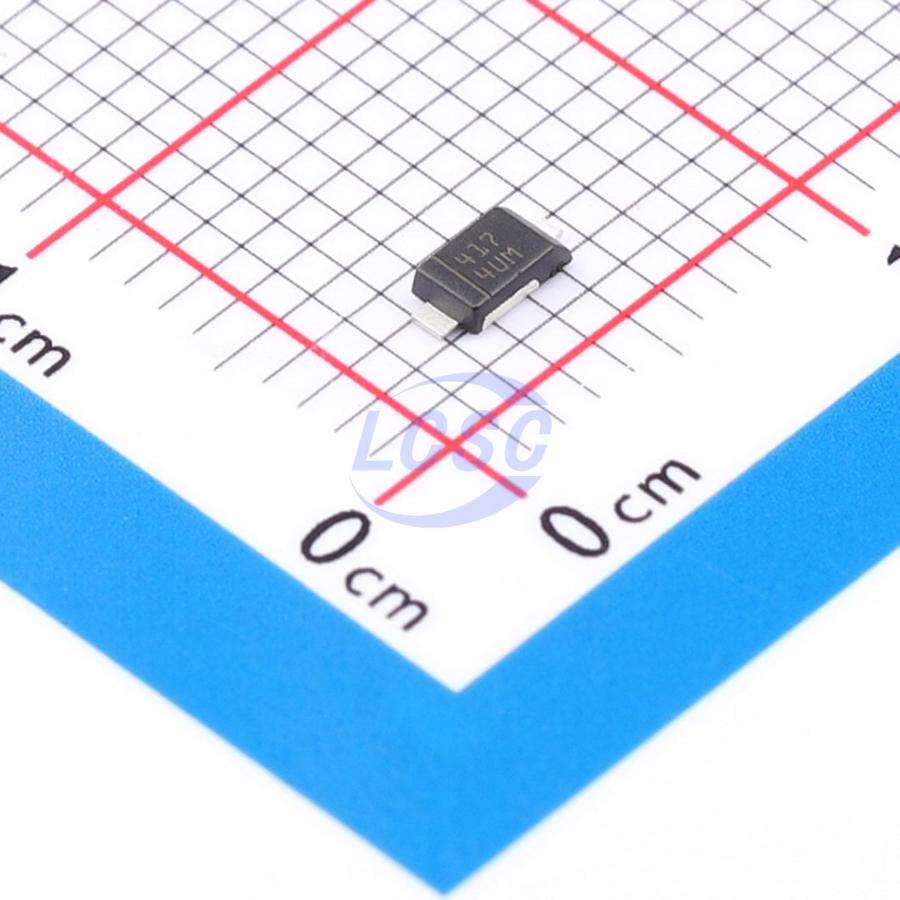

SMM4F24A-TR
50VC Clamp 46A@8/20us Ipp TVS DIODE DO-222AA
DO-222AAROHS3 CompliantActive
- Manufacturer
- ST
- Manufacturer part #
- SMM4F24A-TR
- Store part #
- C2970426
- Package / case
- DO-222AA
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C2970426
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹71.80 | ₹71.80 |
| 10+ | ₹70.50 | ₹705.00 |
| 30+ | ₹69.87 | ₹2,096.10 |
| 100+ | ₹69.01 | ₹6,901.00 |
1 × ₹71.80
₹71.80
excl. GST
₹84.72 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 12,000 per reel
SMM4F24A-TR
₹71.80 for 1 + GST
Specifications
- Clamping Voltage
- 50V
- Operating Temperature
- -55℃~+175℃
- Peak Pulse Current (Ipp)
- 46A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 400W
- Number of Channels
- 1
- Voltage - Breakdown
- 26.6V
- type
- TVS
- Reverse Leakage Current (Ir)
- 200nA
- Polarity
- Unidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 24V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 12,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.755 g
Overview
The SMM4F TVS series are designed to protect sensitive circuits against transient surges. The planar technology makes it compatible with high-end circuits where low leakage current and high junction temperature are required to provide long term reliability and stability.
Key features
- Peak pulse power: 400 W (10/1000 μs) and 2.5 kW (8/20 μs)
- Flat and thin package: 0.85 mm
- Stand-off voltage range from 5 V to 33 V
- Unidirectional type
- Low leakage current: 0.2 μA at 25 °C and 1 μA at 85 °C
- Operating Tj max: 175 °C
- High power capability at Tj max.: up to 160 W (10/1000 µs)
- Lead finishing: matte tin plating
- UL94, V0
- J-STD-020 MSL level 1
- J-STD-002, JESD 22-B102 E3 and MIL-STD-750, method 2026
- JESD-201 class 2 whisker test
- IPC7531 footprint and JEDEC registered package outline
- IEC 61000-4-2, C = 150 pF - R = 330 Ω exceeds level 4: 30 kV (contact discharge) 30 kV (air discharge)
- IEC 61000-4-4 4 kV
