VISHAYDatasheet (PDF)

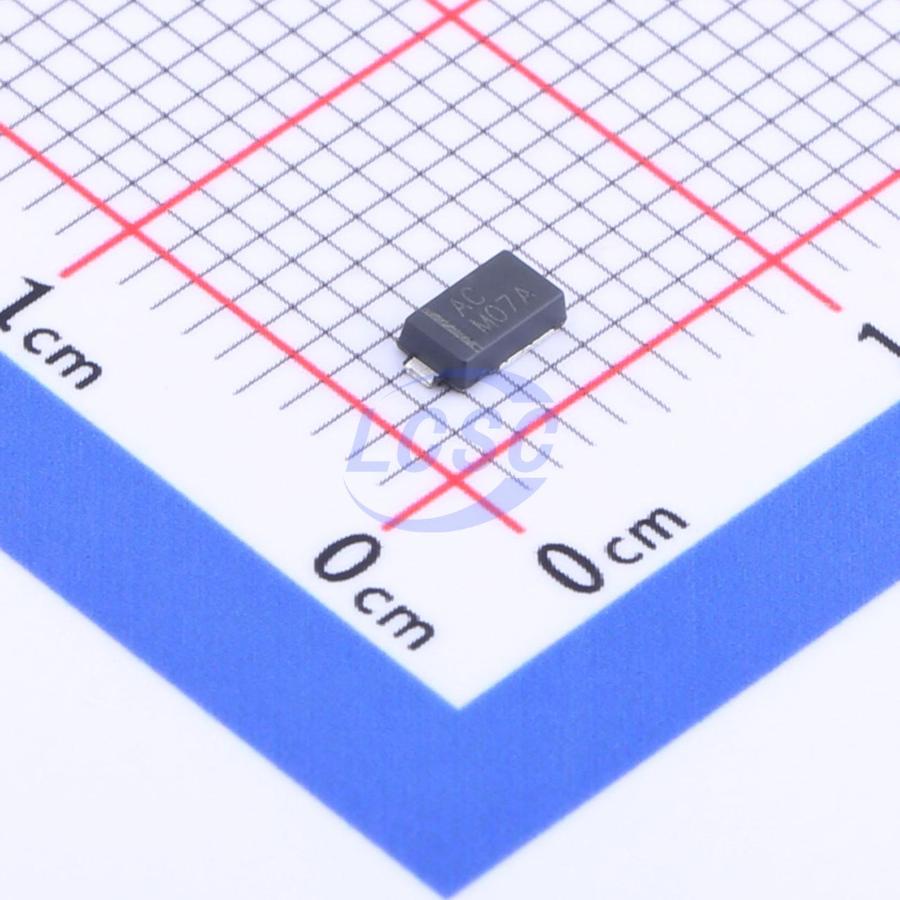

SMP3V3-M3/84A
7.3VC Clamp 54.8A Ipp TVS DIODE DO-220AA
DO-220AAROHS3 CompliantActive
TVS DIODE 3.3VWM 7.3VC DO-220AA
- Manufacturer
- VISHAY
- Manufacturer part #
- SMP3V3-M3/84A
- Store part #
- C968561
- Package / case
- DO-220AA
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,035 in stock
#C968561
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹44.11 | ₹220.55 |
| 50+ | ₹36.91 | ₹1,845.50 |
| 150+ | ₹33.82 | ₹5,073.00 |
| 500+ | ₹29.97 | ₹14,985.00 |
| 3,000+ | ₹23.68 | ₹71,040.00 |
| 6,000+ | ₹22.65 | ₹1,35,900.00 |
5 × ₹44.11
₹220.55
excl. GST
₹260.25 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SMP3V3-M3/84A
₹220.55 for 5 + GST
Specifications
- Clamping Voltage
- 7.3V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 54.8A
- Peak Pulse Power Dissipation (Ppp)
- 400W
- Number of Channels
- 1
- Voltage - Breakdown
- 4.1V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 200uA
- Reverse Stand-Off Voltage (Vrwm)
- 3.3V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.06 g
Overview
Applications
- Use in sensitive electronics protection against voltage transients induced by inductive load switching and lighting on ICs, MOSFET, signal lines of sensor units for consumer, computer, industrial, and telecommunication.
Key features
- Very low profile
- typical height of 1.0mm
- Ideal for automated placement
- Available in uni-directional
- 400 W peak pulse power capability with a 10 / 1000 μs waveform
- Excellent clamping capability
- Very fast response time
- Low incremental surge resistance
- Meets MSL level 1, per J-STD-020, LF maximum peak of 260℃
- Material categorization: for definitions of compliance please see www.vishay.com/doc?99912
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| SMP3V3-M3/85A#C1977981VISHAY · DO-220AA(SMP) | VISHAY | DO-220AA(SMP) | 461 | ₹134.34 · 461 in stock | View | |
