VISHAYDatasheet (PDF)

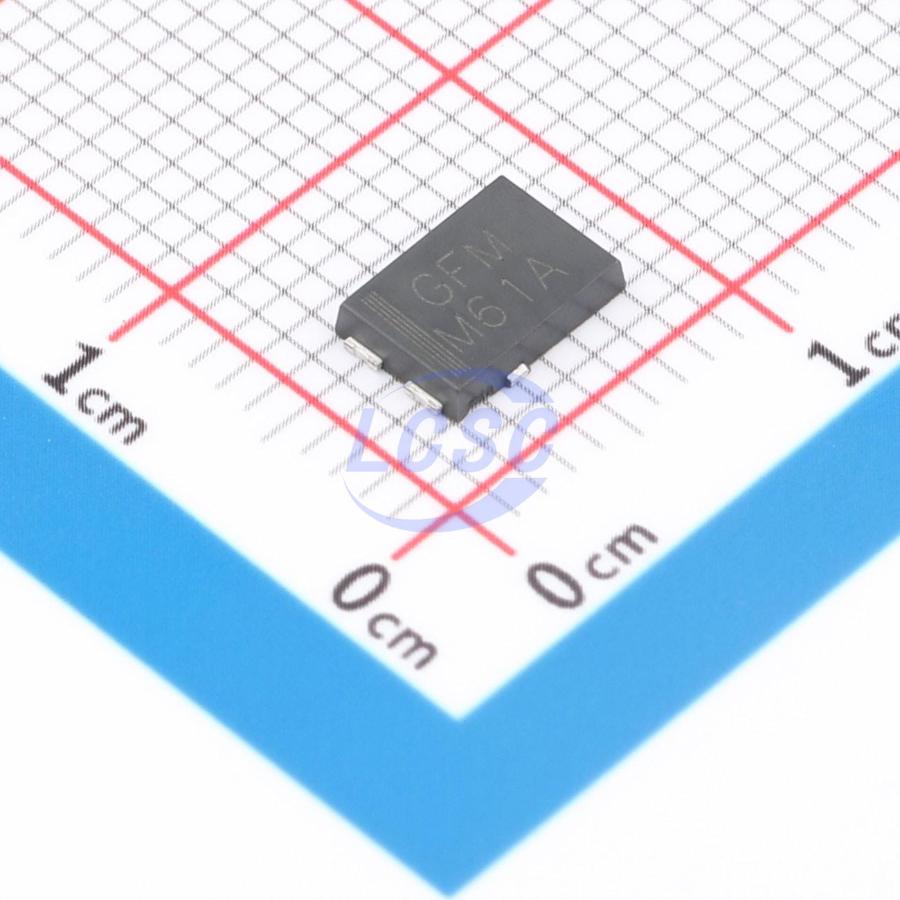

SMPC33A-M3/86A
53.3VC Clamp 28.1A@10/1000us Ipp TVS DIODE TO-277A
TO-277AROHS3 CompliantActive
- Manufacturer
- VISHAY
- Manufacturer part #
- SMPC33A-M3/86A
- Store part #
- C1984544
- Package / case
- TO-277A
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,480 in stock
#C1984544
Stock & price checked 13 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹120.55 | ₹120.55 |
| 10+ | ₹96.39 | ₹963.90 |
| 30+ | ₹84.21 | ₹2,526.30 |
| 100+ | ₹72.25 | ₹7,225.00 |
| 500+ | ₹65.07 | ₹32,535.00 |
| 1,500+ | ₹61.36 | ₹92,040.00 |
1 × ₹120.55
₹120.55
excl. GST
₹142.25 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
SMPC33A-M3/86A
₹120.55 for 1 + GST
Specifications
- Clamping Voltage
- 53.3V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 28.1A@10/1000us
- Peak Pulse Power Dissipation (Ppp)
- 1.5kW@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 40.6V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 33V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.169 g
Overview
Applications
- Use in sensitive electronics protection against voltage transients induced by inductive load switching and lighting on ICs, MOSFET, signal lines of sensor units for consumer, computer, industrial and telecommunication.
- Sensitive equipment against transient overvoltages.
Key features
- Very low profile - typical height of 1.1 mm
- Ideal for automated placement RoHS
- Uni+-direction COMPLIANT HALOGEN
- Excellent clamping capability FREE
- Low incremental surge resistance
- Very fast response time
- Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C
- AEC-Q101 qualified available - Automotive ordering code: base P/NHM3
