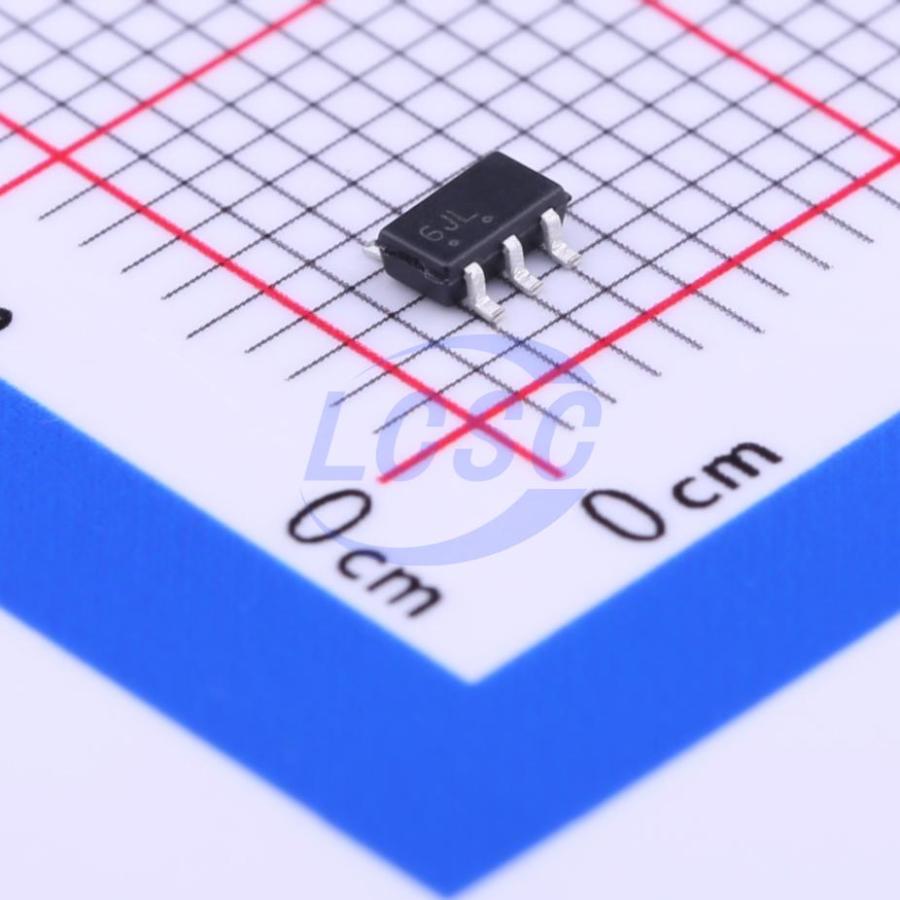

SMS05CT1G
14.5VC Clamp 24A@8/20us Ipp ESD DIODE TSOP-6
ESD DIODE 5VWM 14.5VC TSOP-6
- Manufacturer
- onsemi
- Manufacturer part #
- SMS05CT1G
- Store part #
- C233427
- Package / case
- TSOP-6
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
555 in stock
#C233427
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹47.80 | ₹239.00 |
| 50+ | ₹37.00 | ₹1,850.00 |
| 150+ | ₹32.39 | ₹4,858.50 |
| 500+ | ₹26.61 | ₹13,305.00 |
| 3,000+ | ₹24.04 | ₹72,120.00 |
| 6,000+ | ₹22.49 | ₹1,34,940.00 |
5 × ₹47.80
₹239.00
excl. GST
₹282.02 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SMS05CT1G
₹239.00 for 5 + GST
Specifications
- Clamping Voltage
- 14.5V
- Operating Temperature
- -40℃~+150℃@(Tj)
- Peak Pulse Current (Ipp)
- 24A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 350W@8/20us
- Number of Channels
- 5
- Voltage - Breakdown
- 7.2V
- type
- ESD
- Reverse Leakage Current (Ir)
- 5uA
- Polarity
- Unidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.038 g
Overview
This 5−line surge protection array is designed for application requiring transient voltage protection capability. It is intended for use in over−transient voltage and ESD sensitive equipment such as computers, printers, automotive electronics, networking communication and other applications. This device features a monolithic common anode design which protects five independent lines in a single TSOP−6 package.
Applications
- Hand−Held Portable Applications
- Networking and Telecom
- Automotive Electronics
- Serial and Parallel Ports
- Notebooks, Desktops, Servers
Key features
- Protects up to 5 Lines in a Single TSOP−6 Package
- Peak Power Dissipation - 350 W (8×20 μs Waveform)
- ESD Rating of Class 3B (Exceeding 8.0 kV) per Human Body Model and Class C (Exceeding 400 V) per Machine Model
- Compliance with IEC 61000−4−2 (ESD) 15 kV (Air), 8.0 kV (Contact)
- Flammability Rating of UL 94 V−0
- These are Pb−Free Devices
