TIDatasheet (PDF)

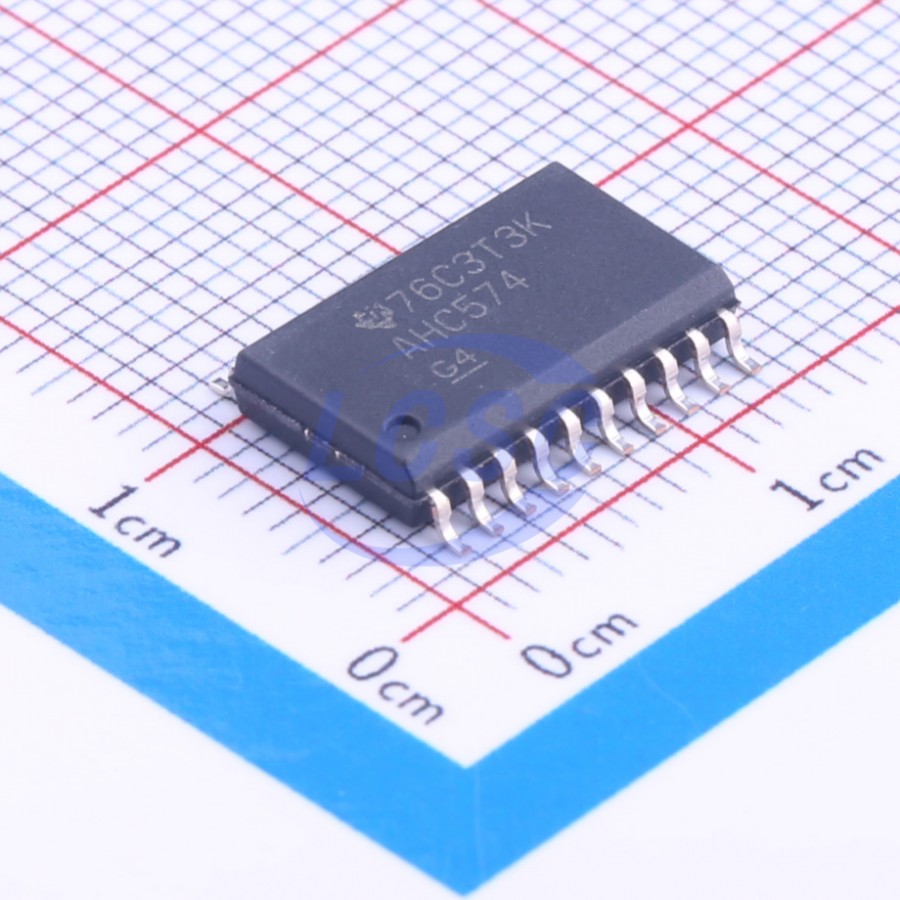

SN74AHC574DWR
2V~5.5V 8 1 10.6ns@5V,50pF SOIC-20-300mil Flip Flops RoHS
SOIC-20-300milROHS3 CompliantActive
Octal Edge-Triggered D-Type Flip-Flops With 3-State Outputs
- Manufacturer
- TI
- Manufacturer part #
- SN74AHC574DWR
- Store part #
- C155452
- Package / case
- SOIC-20-300mil
- Category
- Flip Flops
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,242 in stock
#C155452
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹85.15 | ₹85.15 |
| 10+ | ₹72.12 | ₹721.20 |
| 30+ | ₹62.78 | ₹1,883.40 |
| 100+ | ₹55.17 | ₹5,517.00 |
| 500+ | ₹52.79 | ₹26,395.00 |
| 1,000+ | ₹51.27 | ₹51,270.00 |
1 × ₹85.15
₹85.15
excl. GST
₹100.48 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
SN74AHC574DWR
₹85.15 for 1 + GST
Specifications
- Voltage - Supply
- 2V~5.5V
- Number of Bits per Element
- 8
- Output Type
- Tri-State
- Operating Temperature
- -40℃~+125℃
- Series
- 74AHC Series
- Number of Elements
- 1
- Current - Output High(IOH)
- 8mA
- Current - Output Low(IOL)
- 8mA
- Setup Time
- 3.5ns
- Quiescent Current
- 4uA
- Hold Time
- 2ns
- Propagation Delay
- 10.6ns@5V,50pF
- Trigger Type
- Rising Edge
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.747 g
Overview
The SNx4AHC574 devices are octal edge-triggered D-type flip-flops that feature 3-state outputs designed specifically for driving highly capacitive or relatively low-impedance loads. These devices are particularly suitable for implementing buffer registers, I/O ports, bidirectional bus drivers, and working registers.
Applications
- Smart Grids
- TVs
- Set Top Boxes
- Audio
- Servers
- Surveillance Cameras
- Network Switches Infotainment
Key features
- Operating Range 2-V to 5.5–VCC
- 3-State Outputs Drive Bus Lines Directly
- Latch-Up Performance Exceeds 250 mA Per JESD 17
- ESD Protection Exceeds JESD 22: 2000-V Human-Body Model, 200-V Machine Model, 1000-V Charged-Device Model
