TIDatasheet (PDF)

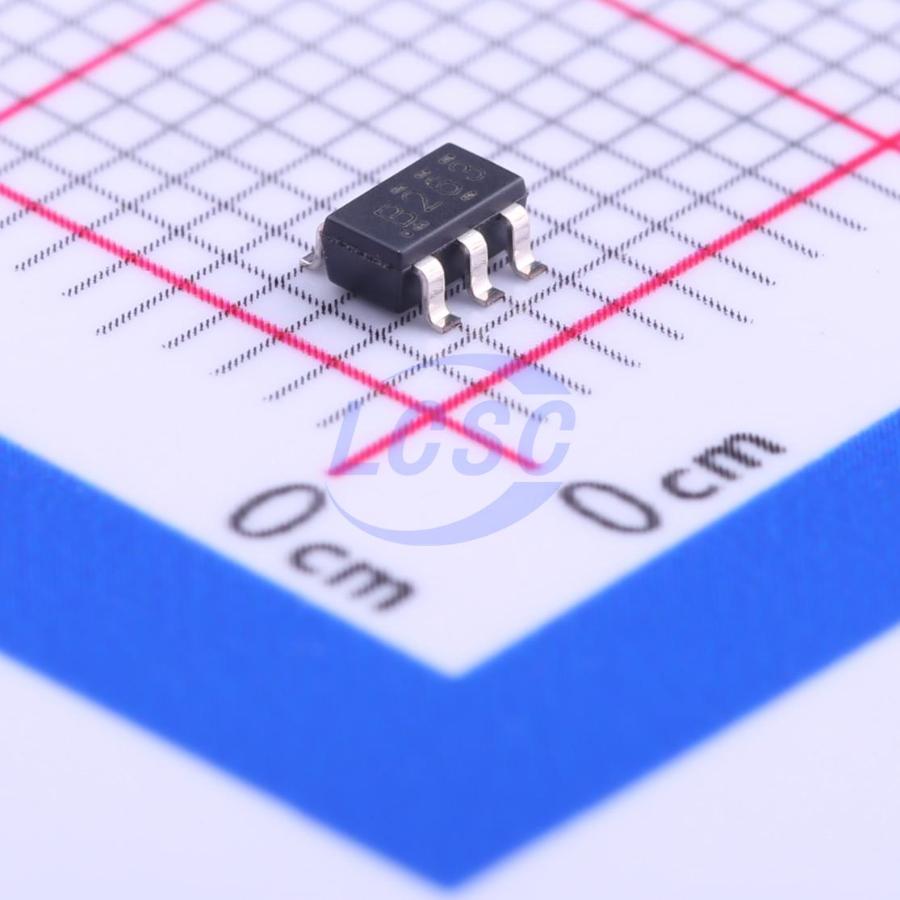

SN74AHCT1G126DBVR
4.5V~5.5V 1 1 5.5ns@5V,15pF SOT-23-5 Buffers, Drivers, Receivers, Transceivers RoHS
SOT-23-5ROHS3 CompliantActive
Single Bus Buffer Gate With 3-State Output
- Manufacturer
- TI
- Manufacturer part #
- SN74AHCT1G126DBVR
- Store part #
- C163712
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,180 in stock
#C163712
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.98 | ₹64.90 |
| 50+ | ₹10.35 | ₹517.50 |
| 150+ | ₹9.02 | ₹1,353.00 |
| 500+ | ₹8.04 | ₹4,020.00 |
| 3,000+ | ₹6.72 | ₹20,160.00 |
| 6,000+ | ₹6.32 | ₹37,920.00 |
5 × ₹12.98
₹64.90
excl. GST
₹76.58 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74AHCT1G126DBVR
₹64.90 for 5 + GST
Specifications
- Voltage - Supply
- 4.5V~5.5V
- Output Type
- Tri-State
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 10uA
- Function
- Output enable;Level shifting;Edge rate controllable
- Current - Output High(IOH)
- 8mA
- Series
- 74AHCT
- Current - Output Low(IOL)
- 8mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 1
- Propagation Delay
- 5.5ns@5V,15pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.033 g
Overview
The SN74AHCT1G126 device is a single bus buffer gate/line driver with 3-state output. The output is disabled when the output-enable (OE) input is low. When OE is high, true data is passed from the A input to the Y output.
Applications
- Motor Controls: AC Induction
- Graphics Cards
- Advanced Driver Assistance Systems (ADAS)
- Motor Drives & Controls
- DLP Front Projection Systems
- Server Motherboards
Key features
- Operating Range of 4.5 V to 5.5 V
- Max tₚd of 6 ns at 5 V
- Low Power Consumption, 10-µA Max ICC
- ±8-mA Output Drive at 5 V
- Inputs are TTL-Voltage Compatible
- Latch-Up Performance Exceeds 250 mA
- Per JESD 17
- ESD Protection Exceeds JESD 22
- 2000-V Human-Body Model 200-V Machine Model 1000-V Charged-Device Model
- TTL Inputs
- Lowered switching threshold allows up translation 3.3 V to 5 V
- Slow edges reduce output ringing
